Regarding the emergency repair of leaking stainless steel pipe elbows, this is a very common repair scenario in both industrial and residential settings. I will address your three questions in detail:

1. Can leaking stainless steel pipe elbows be welded?

The answer is: Welding is possible, but it requires highly skilled techniques, specialized tools, and strict safety measures, and is generally not the preferred method for "quick repairs."

Difficulties and risks of welding repairs:

Drainage issues: Welding requires an absolutely dry environment. Water or moisture in the pipe can cause porosity at the weld, preventing a secure weld and potentially exacerbating the leak. The piping system must be completely drained, which is difficult to achieve for systems that need to be restored to service quickly.

Thermal deformation: Thin-walled stainless steel pipes are susceptible to thermal deformation during welding, potentially changing the shape of the elbow and even causing new stress cracks in adjacent areas.
High technical barriers: Professional argon arc welding (TIG) techniques and experienced welders are required. Welding failures are likely to occur if performed by non-professionals. Safety Risks: If the pipeline transports flammable or explosive media (such as oil, gas, or solvents), welding with open flames poses an explosion risk and requires thorough cleaning and gas testing. Welding under pressure is extremely dangerous and strictly prohibited.

Conclusion: Welding is a permanent repair method, but it is only suitable when the system can be shut down, drained, and performed by qualified personnel. Welding is not recommended as a first choice for "quick repairs."

2. How to quickly repair?

The core of a quick repair is to repair under pressure without interrupting water or production, or for a very short period of time. The following are several common quick repair methods, listed in order of recommendation:

Method 1: Using a Stainless Steel Leak Repair Clamp (The Most Recommended and Professional Method) This is currently the most mainstream and reliable quick repair method. Its advantages and operation are detailed below.

Method 2: Using a Multi-Purpose Leak Repair Clamp: Similar to a leak repair clamp, it is generally simpler in structure and has a wider range of applications (accommodating different pipe materials). However, for specialized locations like stainless steel elbows, specialized elbow leak repair clamps are more effective.

Method 3: Using a Polymer Composite Material (Sealing Adhesive). This is a temporary emergency solution.

Operation: Clean the surface surrounding the leak. Apply a specialized metal repair composite (such as Belzona or Frost Blue). Mix the mixture and apply it to the leak. It will cure to form a hard seal.

Advantages: Extremely quick, requires no special tools, and is low-cost.

Disadvantages: Typically a temporary measure, its pressure-bearing capacity and long-term durability are inferior to mechanical leak repair clamps, and it is significantly affected by the temperature and chemical properties of the media.

Method 4: Clamp Sealing: Create a metal clamp around the leak and inject sealant into the cavity between the clamp and the pipe.

Advantages: Customizable and suitable for a variety of complex leaks.

Disadvantages: Requires measurement and fabrication, which is time-consuming and requires a high level of expertise.

3. What are the advantages of using a leak repair clamp?

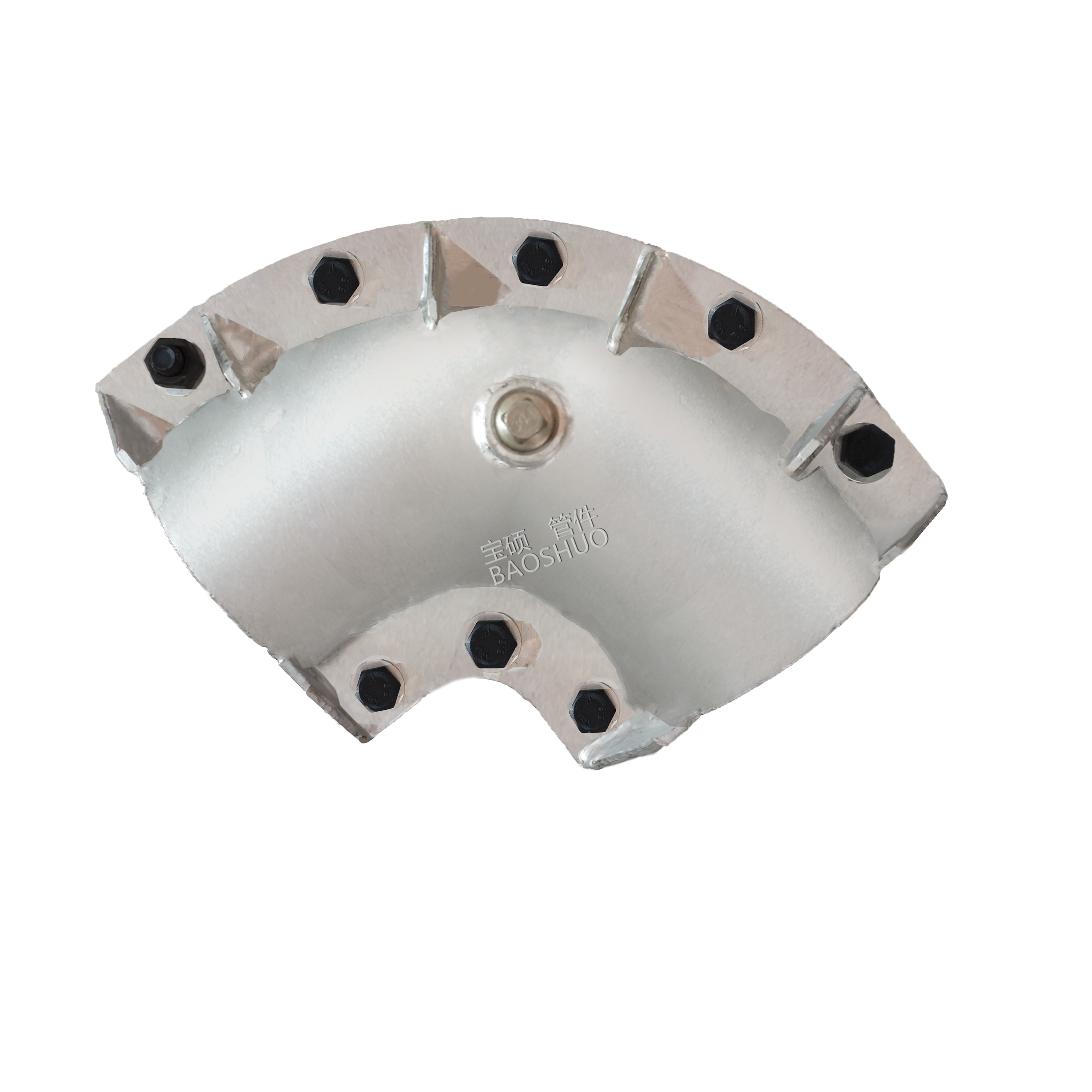

Specialized elbow repair clamps are available for stainless steel elbows, and their advantages are significant:

1. Fast and Efficient:
The operation is very simple, typically completing the entire repair process in 30 minutes to an hour. No need to shut down water or production, truly plugging leaks under pressure minimizes economic losses.
2. Safe and Reliable:
The completely spark-free operation eliminates the risk of explosion and fire associated with welding.
Using high-performance seals (such as EPDM, NBR, or FKM), they are resistant to water, oil, and various chemicals, achieving a reliable sealing pressure of 16 bar or higher. Baoshuo high-pressure leak repair clamps can withstand pressures up to 150 bar (150 kg).
3. No Special Skills Required:
Installation typically requires only common tools (wrenches, screwdrivers, and grinding tools). Following the instructions, ordinary repair personnel can complete the job, eliminating the need for expensive professional welders.
4. Excellent Adaptability:
Designed specifically for elbows, they perfectly conform to the contours of the elbow, ensuring uniform force distribution and excellent sealing.
Using 304 or 316 stainless steel, consistent with the pipe material, they avoid electrochemical corrosion.

Leak Repair Clamp Operation Steps (Brief)

1. Preparation: Turn off the system pressure. (If possible, reducing the pressure slightly may make installation easier, but is not required.) 2. Surface Preparation: Thoroughly clean the surface of the leaking elbow from dirt, rust, grease, and other debris, and sand it smooth to ensure a tight fit.

3. Installing the Sealing Ring: Correctly insert the matching sealing ring into the groove on the leak repair clamp housing.

4. Positioning: Snap the leak repair clamp onto the leaking elbow, aligning the bolt holes.

5. Tightening Bolts: Evenly tighten all bolts in a diagonal order (as shown in the figure below) to ensure uniform force and a complete seal. If a mechanical wrench stops tightening, do not stop. Use an extension wrench to manually tighten the bolts until manual tightening stops.

The housing is typically made of metals such as ductile iron and carbon steel, which are corrosion-resistant and high-strength. It can last the same life as the original pipe, eliminating the need for frequent repairs. Baoshuo brand carbon steel half joints are available in a variety of rubber materials, including NBR, EPDM, FKM, and silicone rubber. The half joint body is available in Q235 carbon steel and 304 and 316L stainless steel.

The following are Baoshuo brand oil-resistant pipe repair clamps, high-temperature-resistant pipe repair clamps, acid- and alkali-resistant pipe repair clamps, 304,316,2205，stainless steel pipe repair clamps, high-pressure-resistant pipe repair clamps, and large-diameter pipe repair clamps.

Summary and Recommendations

Emergency: If the leak is minor, a polymer sealant can be used for temporary sealing to buy time for subsequent repairs.

Permanent and rapid repair: Specialized stainless steel elbow leak repair clamps are the preferred solution. This offers the best balance of speed, safety, cost, and reliability.

If the system can be shut down for an extended period and welding conditions are available, argon arc welding can be used for permanent repairs, but this must be performed by a qualified welder.
