🧿1. Maximum Pressure Rating of HDPE Pipe

The pressure rating of HDPE pipe generally refers to the internal pressure it can safely withstand over a long period of time. These pressure ratings are clearly categorized to meet the needs of different application scenarios.

The pressure rating of HDPE pipe generally reaches up to 1.6 MPa (megapascals), equivalent to 16 kg of pressure. Some HDPE pipes for special applications can reach even higher pressures. For example, some HDPE pipes used in marine applications or dredging can reach pressures up to 2.5 MPa (e.g., DN1200mm HDPE dredging pipe).

The pressure-bearing capacity of HDPE pipe is closely related to its material (e.g., PE80 or PE100) and its Standard Dimension Ratio (SDR), the ratio of outer diameter to wall thickness. Generally, the lower the SDR value, the thicker the pipe wall, and the greater the pressure-bearing capacity of the pipe.

🧿2 What to do if an HDPE high-pressure pipe leaks

If an HDPE high-pressure pipe leaks, appropriate treatment methods should be selected based on factors such as the leak, pipe specifications, and site conditions. Common causes of leaks include mechanical damage (such as third-party sabotage), material aging, biodegradation (such as termite infestation), corrosion (such as oxygen corrosion and cavitation), welding defects, or abnormal system pressure.

Before addressing any leak, the first priority is to quickly shut off the control valves upstream and downstream of the leaking pipe section to isolate the affected section and prevent further damage. If shutting off the water supply is not possible, a repair method that can operate under pressure should be selected.

For small-scale punctures, cracks, or joint leaks, the most common and effective method is to use specialized HDPE high-pressure repair components (such as pipe repair clamps and emergency repair clamps) for rapid repair.

For severely corroded, aged, or extensively damaged pipes, where complete replacement is costly or difficult, PE pipe interlining repair technology can be used. This involves inserting a smaller HDPE pipe into the old pipe, leveraging the rigidity and strength of the original pipe to create a composite pipe structure that combines the corrosion resistance of HDPE pipe with the support of the old pipe. This technology requires minimal cleaning of the old pipeline, shortens the installation period, minimizes downtime, and significantly extends the pipe's service life.

🧿3 Advantages of Using High-Pressure Repair Parts

When a leak occurs in a high-pressure HDPE pipe, using specialized high-pressure repair parts (such as pipe repair clamps) offers many significant advantages:

Fast and efficient repair, reducing downtime and losses: Pipe repair clamps are designed and quick to install. In the event of a minor pipe rupture, a pipe repair clamp can be used for under-pressure repair without shutting off service. Repair efficiency is three to five times higher than before, quickly restoring water flow, significantly reducing repair time and unnecessary financial losses.
Safe and reliable, with excellent sealing: Pipe repair clamps achieve a seal through bolted connections and compression of the sealing ring, quickly stopping water flow. Their structural design prevents compression and deformation of the pipe at the joint, resists pullout, and prevents separation, ensuring a strong connection and excellent sealing.
Versatile and economical: Pipe repair clamps can be widely used to repair pipes of the same outer diameter. For irregular or elliptical pipes, high-quality pipe repair clamps can provide support for the PE pipe at the joint and correct any out-of-roundness. They also offer the advantages of low cost, minimal investment, and low expense, making them economical and practical. Ease of Use: Pipe repair clamps typically feature a Haversian structure and bolted connections. Installation doesn't require large or specialized equipment, nor does it require hot or electric fusion, reducing the complexity and technical expertise required.

🧿4 How to Choose and Purchase High-Pressure Repair Parts

Selecting the right HDPE high-pressure repair parts requires considering the following key factors:

1. Pipe Outer Diameter (OD): This is the most critical parameter and must be accurately measured. The repair part must perfectly match the pipe OD to ensure a seal.

2. Pipe System Operating Pressure: Ensure the selected repair part's pressure rating meets or exceeds the maximum operating pressure of the piping system, especially for high-pressure water systems (e.g., 1.6 MPa or higher).

3. Leakage Type and Damage Type: Select the most appropriate repair part type (e.g., single-piece clamp, two-piece pipe repair clamp, three-piece pipe repair clamp, etc.) based on whether the leak is from a hole, crack, or joint. 4. Material and Quality: The main material of the repair parts (usually HDPE or metal) should be compatible with the pipeline. The sealing ring material (such as NBR or EPDM) should be suitable for the conveying medium (water, gas, etc.) and resistant to aging.

The housing is typically made of metals such as ductile iron and carbon steel, which are corrosion-resistant and high-strength. It can last the same life as the original pipe, eliminating the need for frequent repairs. Baoshuo brand carbon steel half joints are available in a variety of rubber materials, including NBR, EPDM, FKM, and silicone rubber. The half joint body is available in Q235 carbon steel and 304 and 316L stainless steel.

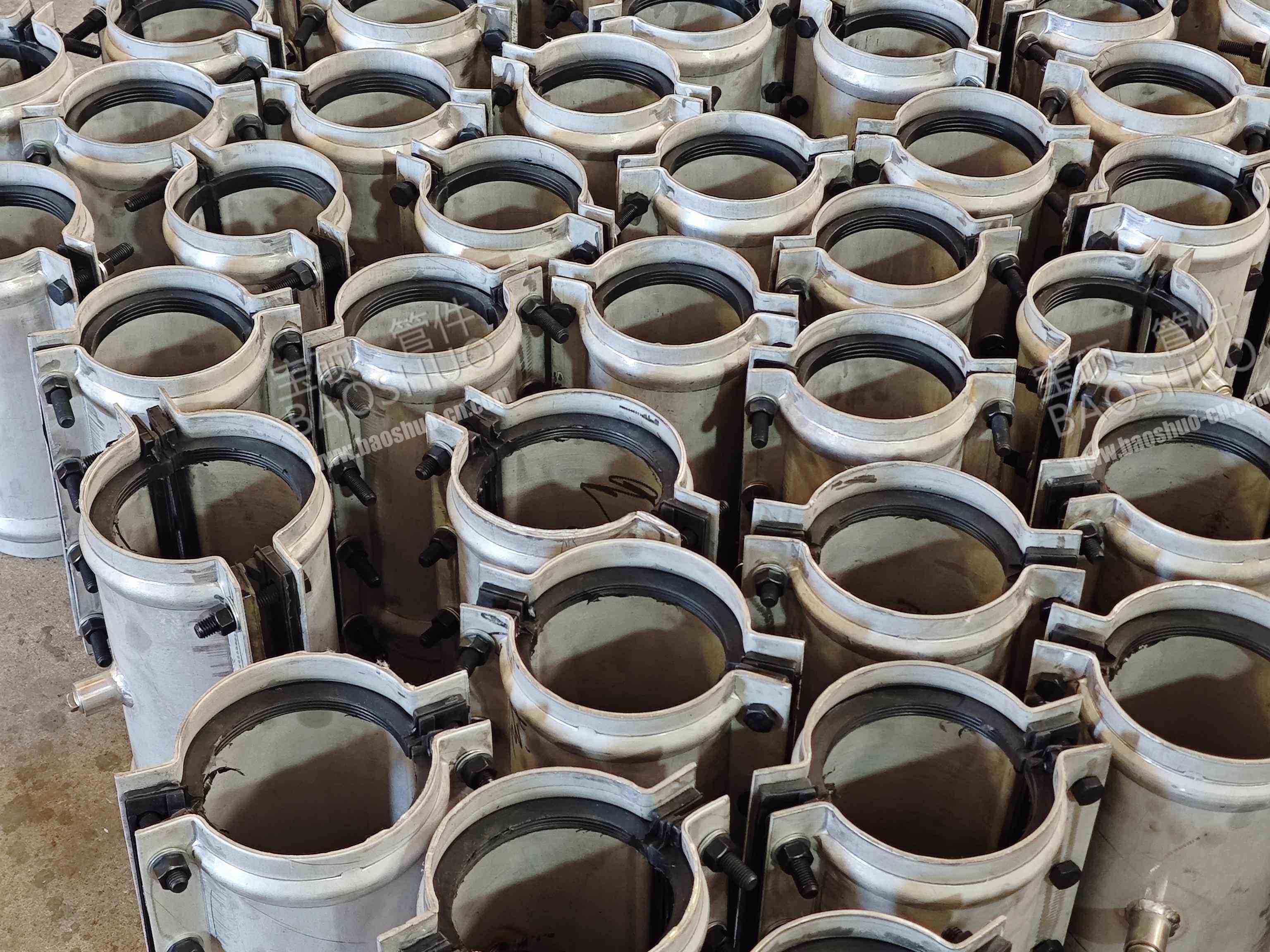

The following are Baoshuo brand oil-resistant pipe repair clamps, high-temperature-resistant pipe repair clamps, acid- and alkali-resistant pipe repair clamps, stainless steel pipe repair clamps, high-pressure-resistant pipe repair clamps, and large-diameter pipe repair clamps.

🧿5 Daily Preventive Maintenance Tips

Prevention is better than cure. The following are some tips for preventing HDPE high-pressure pipeline leaks:

Regular Inspections: Regularly inspect the pipeline route, especially key areas such as joints, elbows, and exposed points, for any abnormal signs (such as water seepage, ground subsidence, or unusually dense vegetation).

System Pressure Monitoring: Install pressure monitoring equipment to promptly detect and address abnormal pressure fluctuations and prevent overpressure.

Preventing Third-Party Vandalism: Clearly mark the route of underground pipelines and communicate fully with the construction party to avoid damage from digging. Consider environmental factors: In areas prone to termites, choose termite-resistant pipes or implement appropriate protective measures.

Establish an emergency plan: Maintain a stockpile of commonly used repair parts and tools, and train maintenance personnel to ensure a swift response in the event of a leak.
