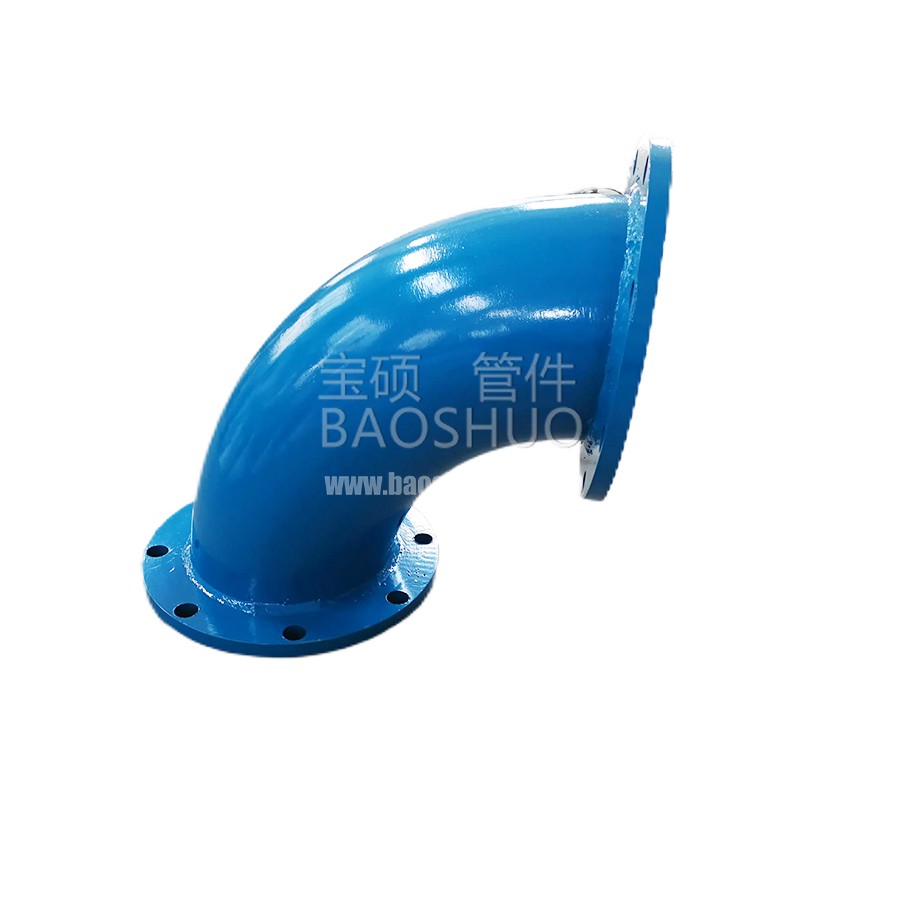

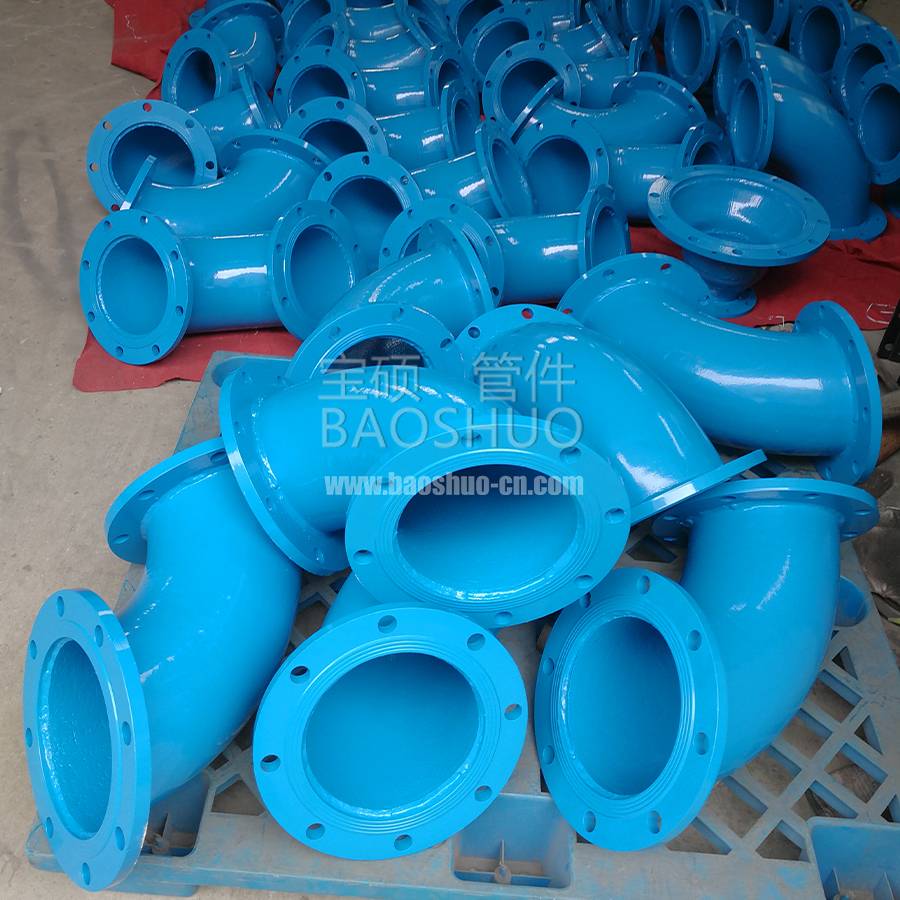

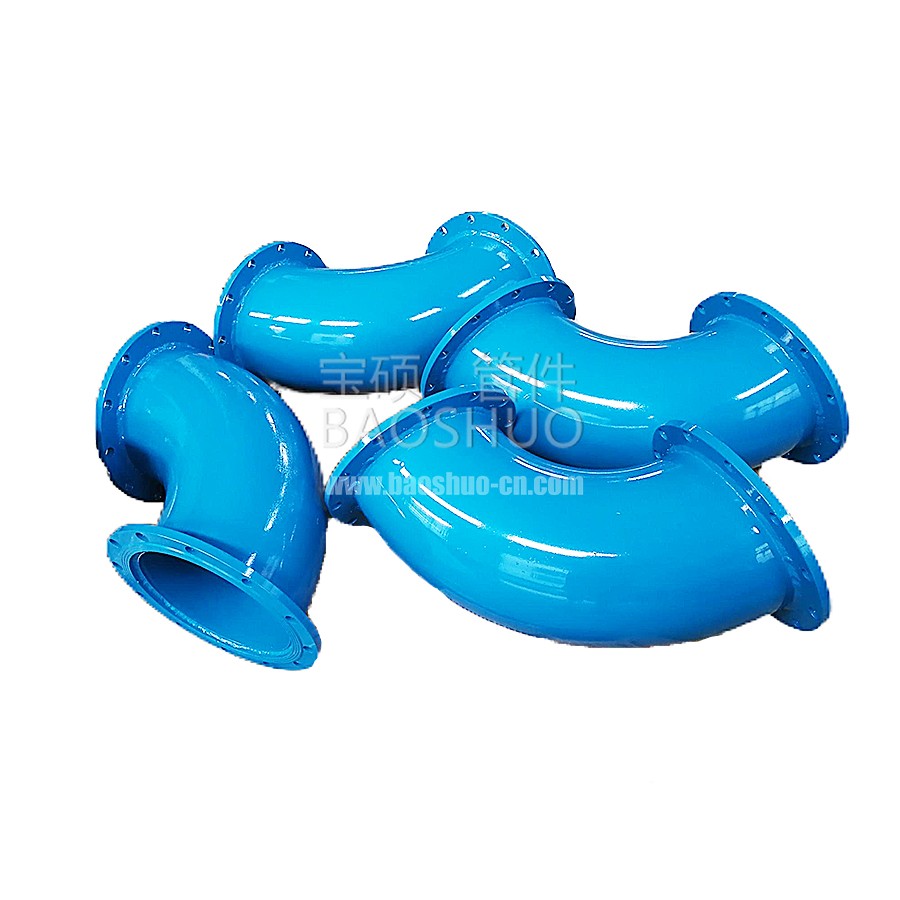

Double-disc elbow

Structure: Both ends of the elbow are flanges. The elbow angles are also 90 degrees, 45 degrees, etc.

Function: Used to change the direction of the pipeline (turn), and flange connection is adopted at the same time. Improve flow and conveying efficiency, reduce conveying pressure loss. There is no exudate in the coating. Quality, so it will not pollute the conveyed medium. It can be used alternately in hot and cold in the range of -40C to +80C, without aging or cracking. The average service life can reach 50 years. Plastic steel pipe fittings are mainly used for matching and connection of U-PVC pipes. The connection methods include rubber ring, flange and socket. According to customer requirements, the diameter can be arbitrarily changed and connected in the range of 63-800. In the past ten years of use, the performance of steel-plastic pipe fittings has been recognized by new and old customers, and the products have become more mature. The usage in high-pressure pipe networks is increasing year by year, and major pipe manufacturers across the country have long-term cooperative relations with our company. The company has not had any quality accidents in five years.

How to use:

Align the flange at one end of the elbow with the flange of the upstream pipe or equipment, place the flange gasket in the middle, and tighten it with bolts and nuts.

Align the flange at the other end of the elbow with the flange of the downstream pipe or equipment, place the flange gasket in the middle, and tighten it with bolts and nuts.
