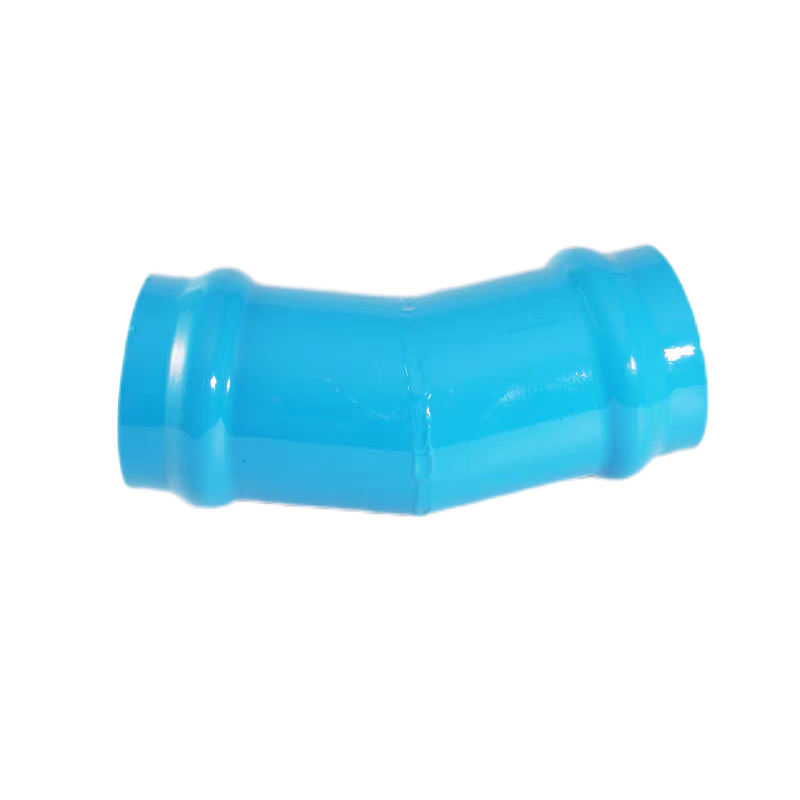

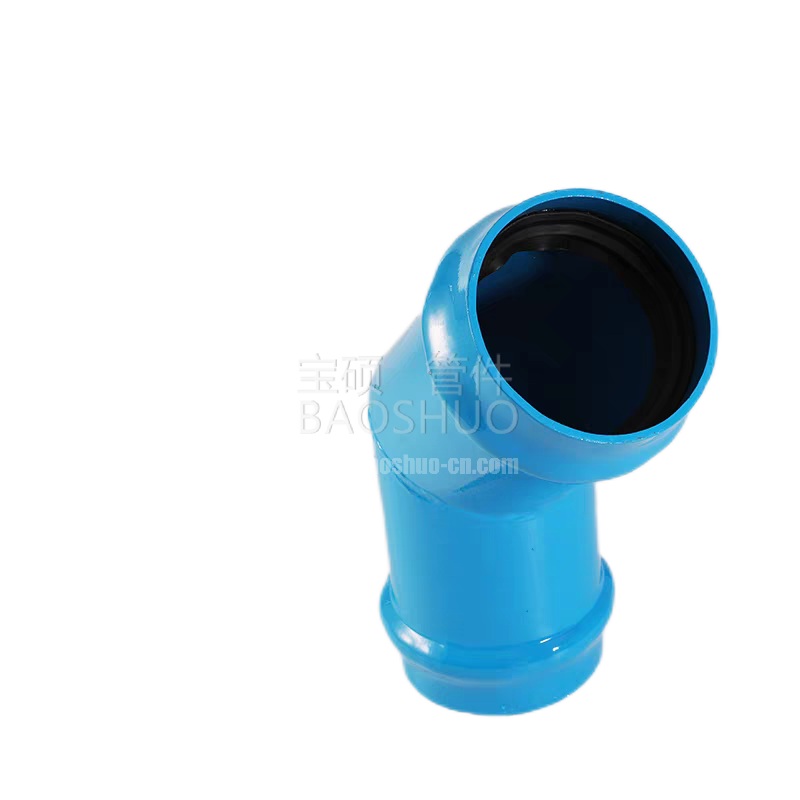

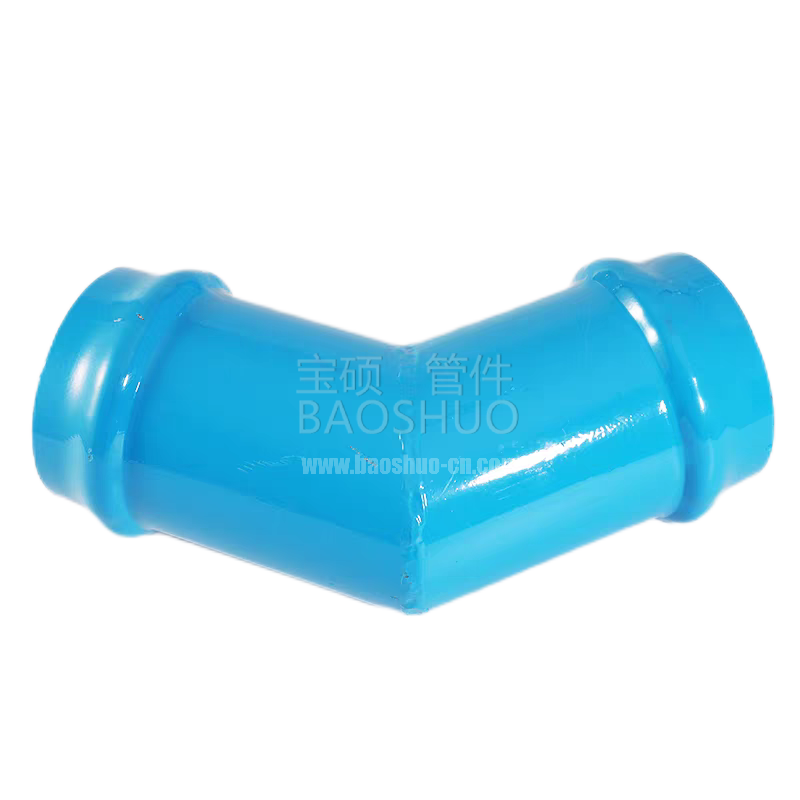

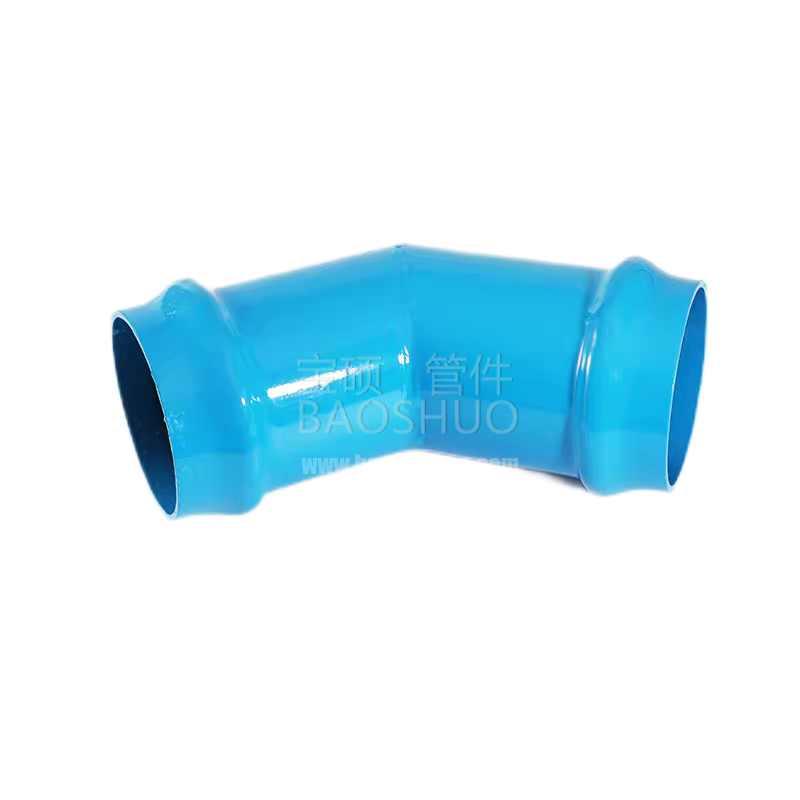

Double sockets 45° Bend
45 degree double socket elbow, steel-plastic pipe fittings, used to connect pipes
Product features
*Special matching pipe fittings, high pressure resistance, long service life
*Wide range of use, suitable for any material pipeline and working environment
*Acid and alkali resistant, corrosion resistant and oxidation resistant
*Connection form rubber ring, flange, more convenient and quick installation
| model | Φ20-1200mm | Material | Carbon Steel |
|
coating |
Epoxy Powder Coating |
color | Blue Black |
|
trademark |
宝硕,BAOSHUO |
Enterprise Certification | ISO14001,ISO45001,ISO9001 |
| Scope of application | Socket connection/flange connection |
45 degree double socket elbow
Structure: Both ends of the elbow are sockets (female). Common elbow angles are 90 degrees, 45 degrees, 22.5 degrees, 11.25 degrees, etc.
Function: Used to change the direction of the pipeline (turn), and use the socket connection at the same time.
Usage:
Insert the spigot ends (male ends) of the two pipes that need to be turned and connected into the sockets at both ends of the elbow respectively.
Place a rubber sealing ring in the socket, and a sealed connection is formed after insertion.
Key points: Change flow direction, socket connection.
