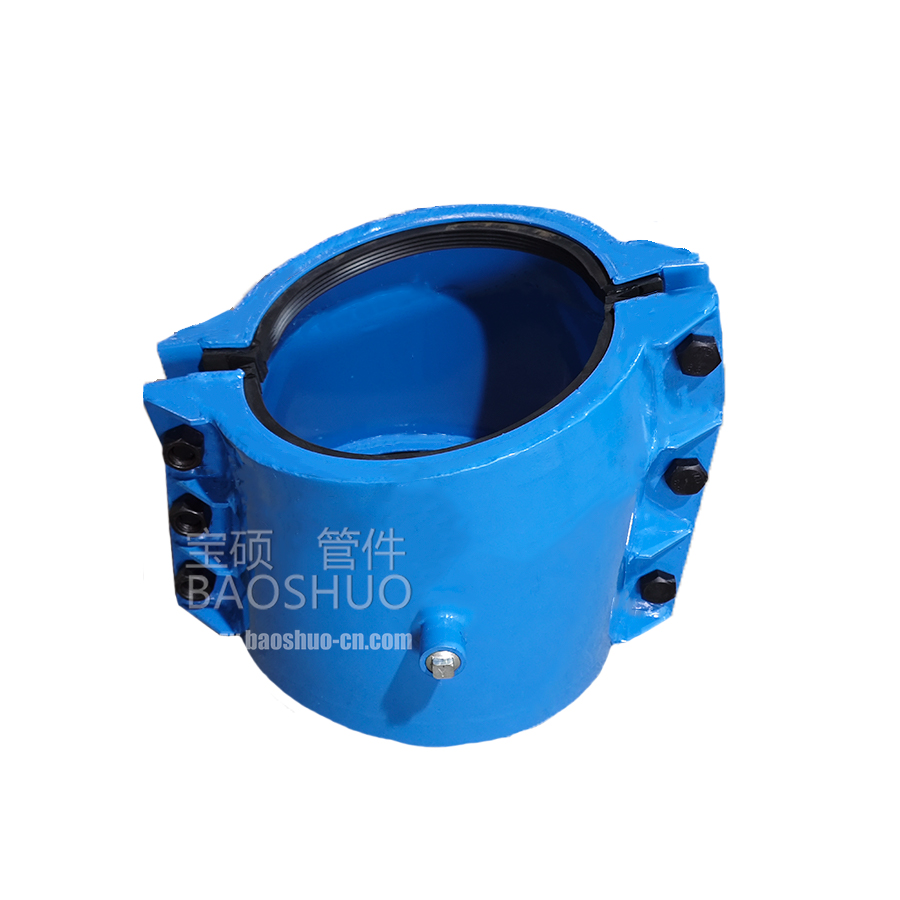

Elbow weld repair clamp
This product is suitable for the rapid repair of pipeline leakage. For elbow welds, it can quickly repair pipe sand holes, weld defects or damage caused by aging and rust without stopping the pressure or changing the pipe. Repair of steel pipe weld sand holes, repair of weld parts, PE butt weld repair, PVC bonding leak repairer, pinhole plugging repairer, drainage repairer, compensator repairer, elbow compensator, stainless steel repair clamp can be customized.
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance

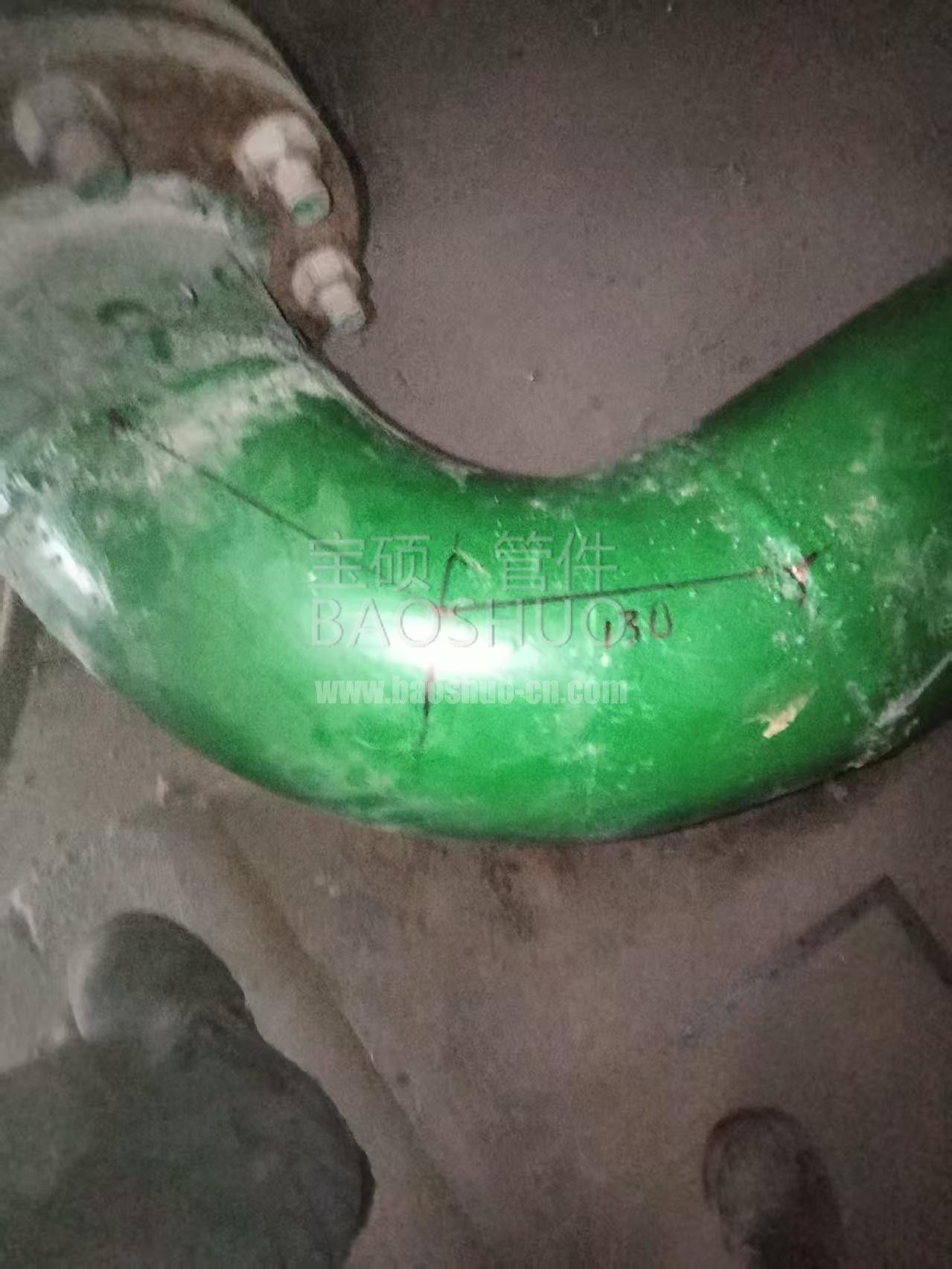

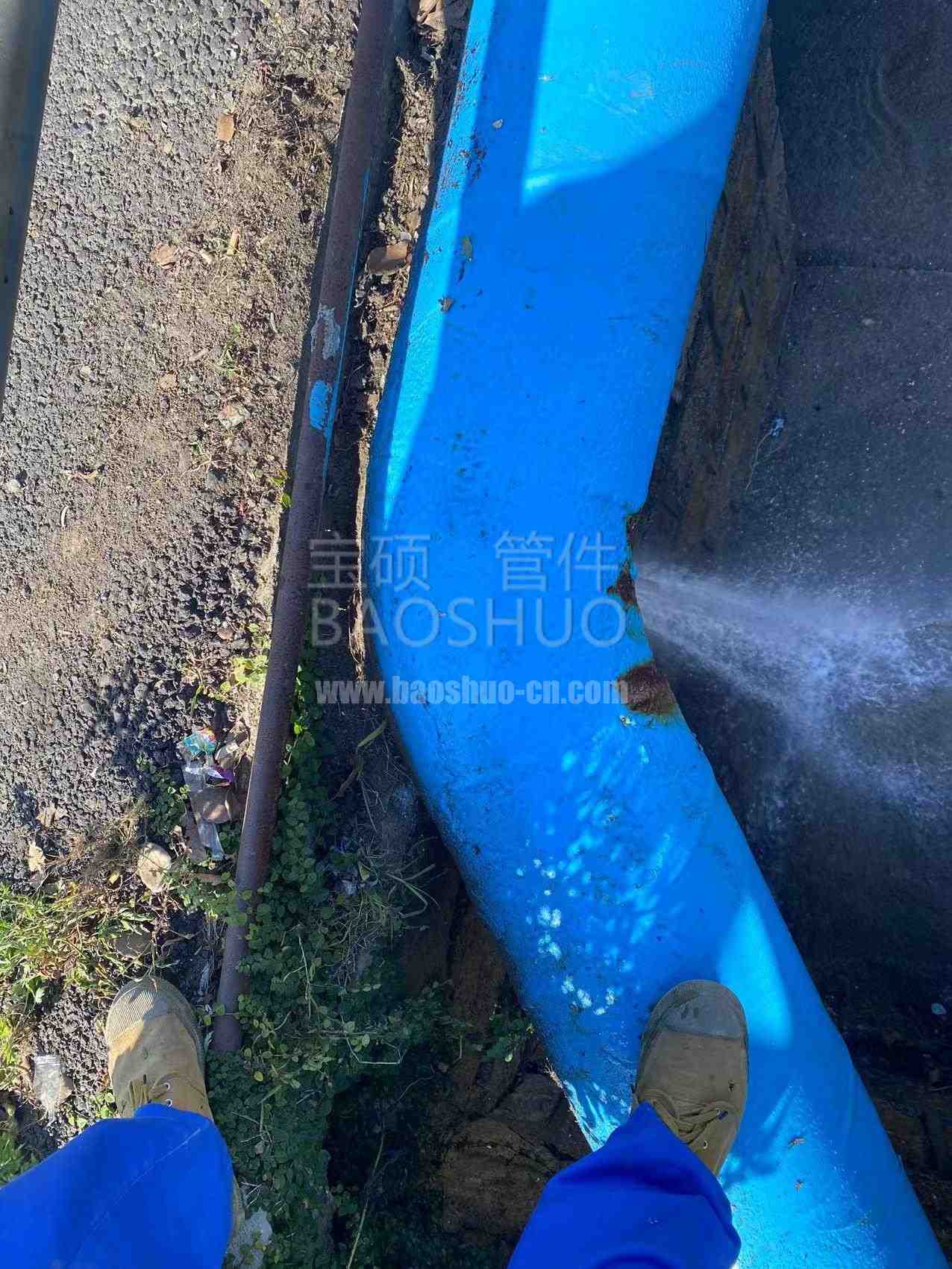

figure at the crime scene
|
model |
DN15-DN4000 |
Base material |
ustomizable stainless steel 304, 316, 316L, 2205 duplex steel |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
|
Pipeline weld leakage is a common safety hazard in industrial facilities. Understanding its specific manifestations and root causes is essential for rapid response and prevention.
Clearly focus on the weld area: the leak point is precisely located at the weld joint (including butt welds, fillet welds, girth welds or longitudinal welds), not the pipe base material itself.
- Various manifestations:
- Drip/leakage: slow seepage of liquid or bubbles (low pressure or small defects).
- Jet-like leakage: obvious jets are formed under high pressure (common in gas or high-pressure liquid pipelines).
- Wetting/scaling: the medium spreads along the weld surface, forming a band-like wet mark or crystallized salt scale (micro-leakage characteristics).

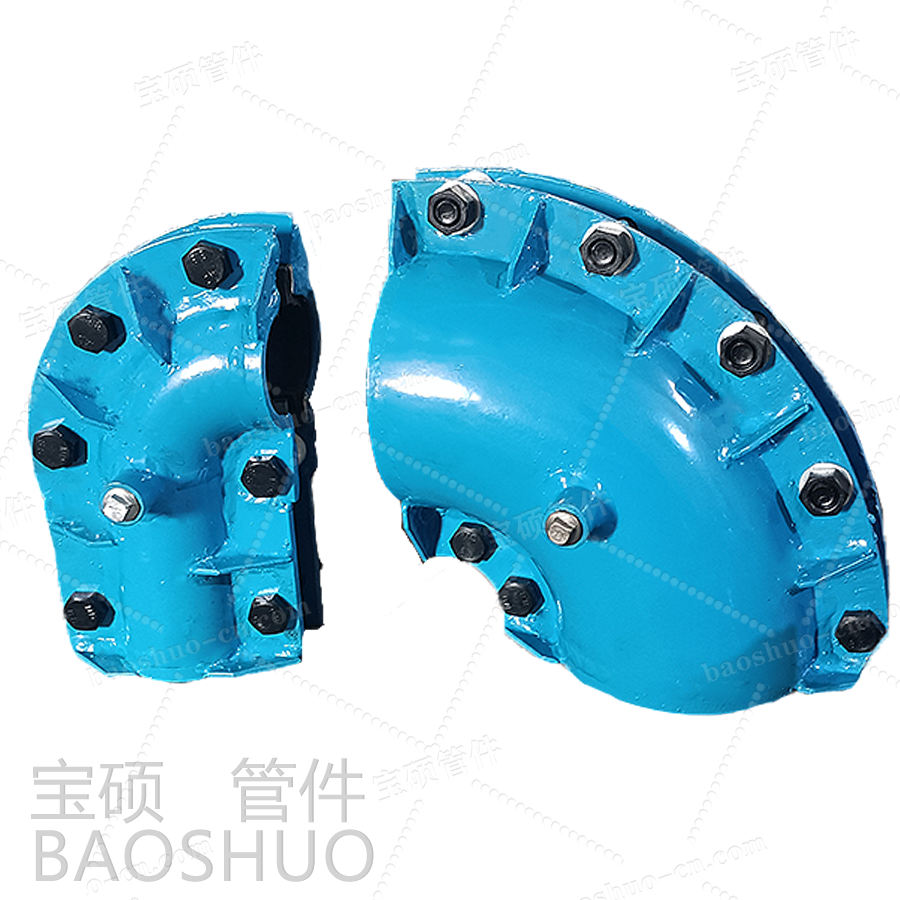

Elbow weld repairer
Professional repair of pipeline elbow weld leakage, girth weld leakage repair, this half joint has a certain angle, can repair small-scale weld leakage, lower cost, more accurate repair,
Construction site display
