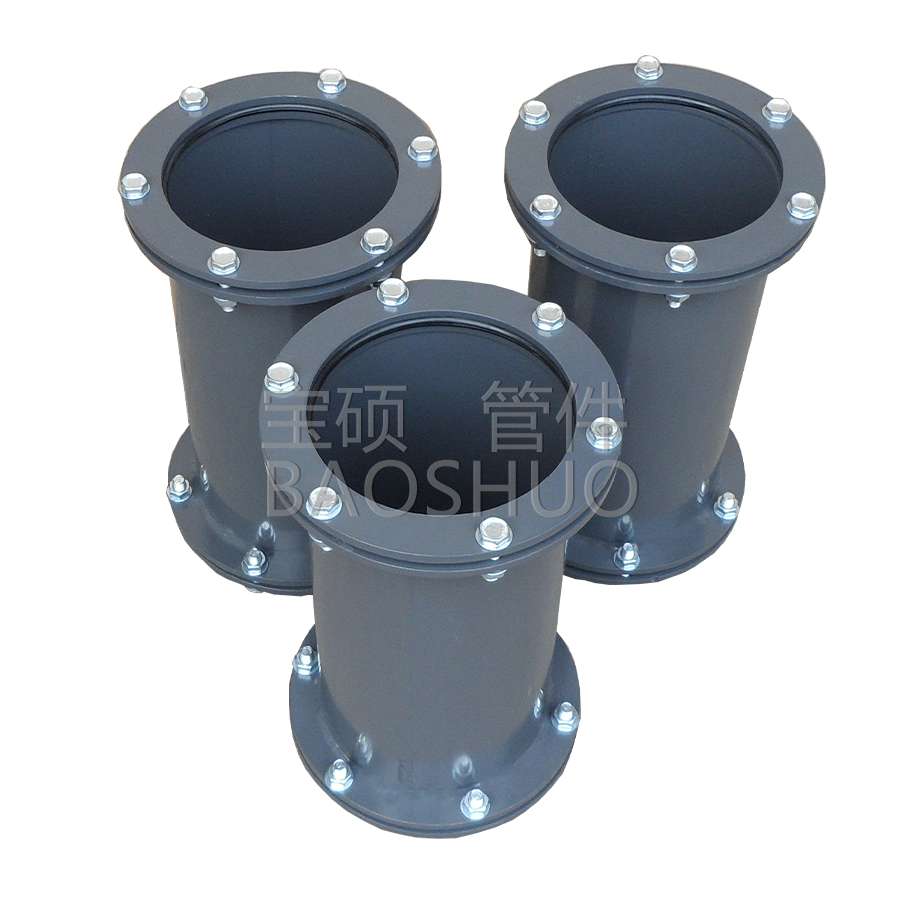

flexible flange straight-through (straight through union flange)
The expansion joint (flexible flange straight-through) is a key compensation element in the pipeline system. The flange expansion joint is a pipeline connector used to connect two sections of pipelines with different displacements, different pressures, different diameters or different materials. This product can be used for socket pipe connection. The additional pipe clamps can increase the fixing effect. It is a device that compensates for the change in pipeline length and absorbs the stress caused by temperature changes in the pipeline through the expansion function.
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
DN15-DN4000 |
Base material |
Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
The expansion joint (flexible flange straight-through) is a key compensation element in the pipeline system. The flange expansion joint is a pipeline connector used to connect two sections of pipelines with different displacements, different pressures, different diameters or different materials. This product can be used for socket pipe connection. The additional pipe clamps can increase the fixing effect. It is a device that compensates for the change in pipeline length and absorbs the stress caused by temperature changes in the pipeline through the expansion function.
Pipes are connected through flanges, which are divided into single flanges, double flanges and other types. They are easy to install and maintain. They are commonly used in water supply and chemical pipelines. The expansion joint is a "buffer" for pipeline safety. The selection requires comprehensive pressure, temperature, displacement and space restrictions.
Field drawing
