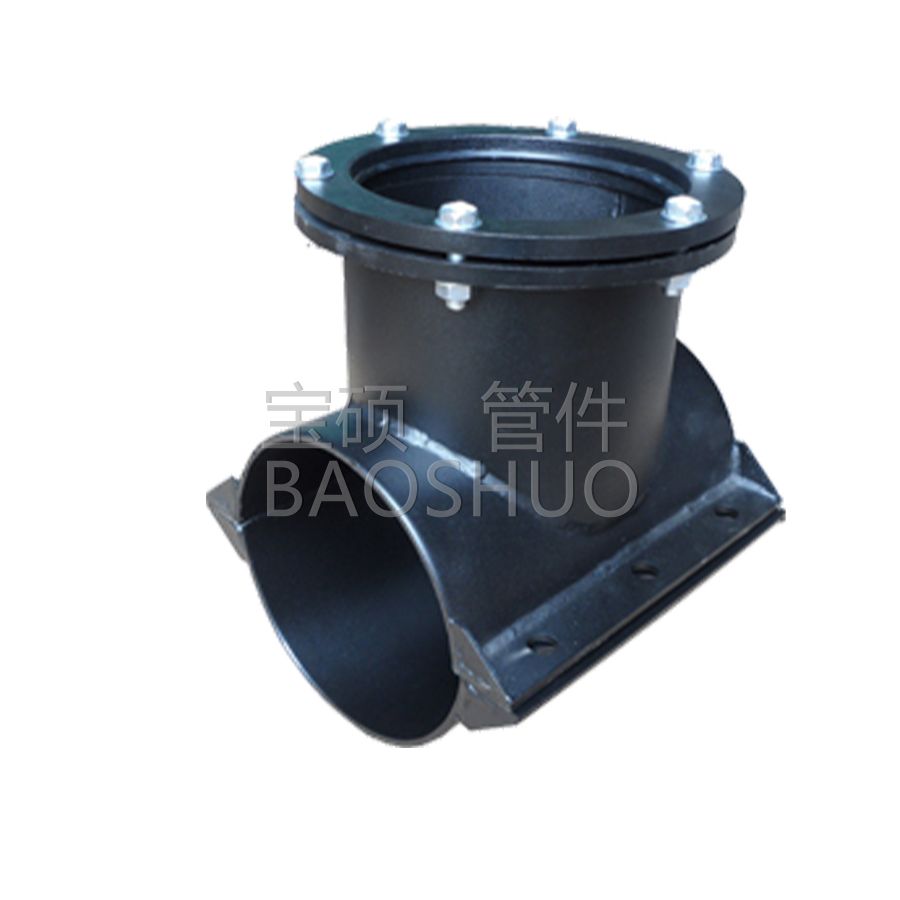

Quick Connect Saddle Tee
Quick Connect Saddle Teeis a key compensation element in the pipeline system. Flange expansion joint is a pipeline connector used to connect tee sections of pipelines with different displacements, different pressures, different diameters or different materials. It is a device that compensates for changes in pipeline length and absorbs the stress caused by temperature changes in the pipeline through expansion and contraction.
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
DN15-DN4000 |
Base material |
Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
Suitable for modification and maintenance: It is the most common method to add branches to in-service pipelines. It does not require cutting off the main pipe or replacing large sections of pipes. The construction is relatively convenient and has little impact on system operation.
Suitable for large-diameter main pipes: For large-diameter main pipes, prefabrication or procurement of large-diameter tees is costly and difficult to transport and install. Saddle-type openings are a more economical and practical choice.
Space limitations: It has more advantages in narrow spaces and places where prefabricated tees are difficult to install.
Field drawing
