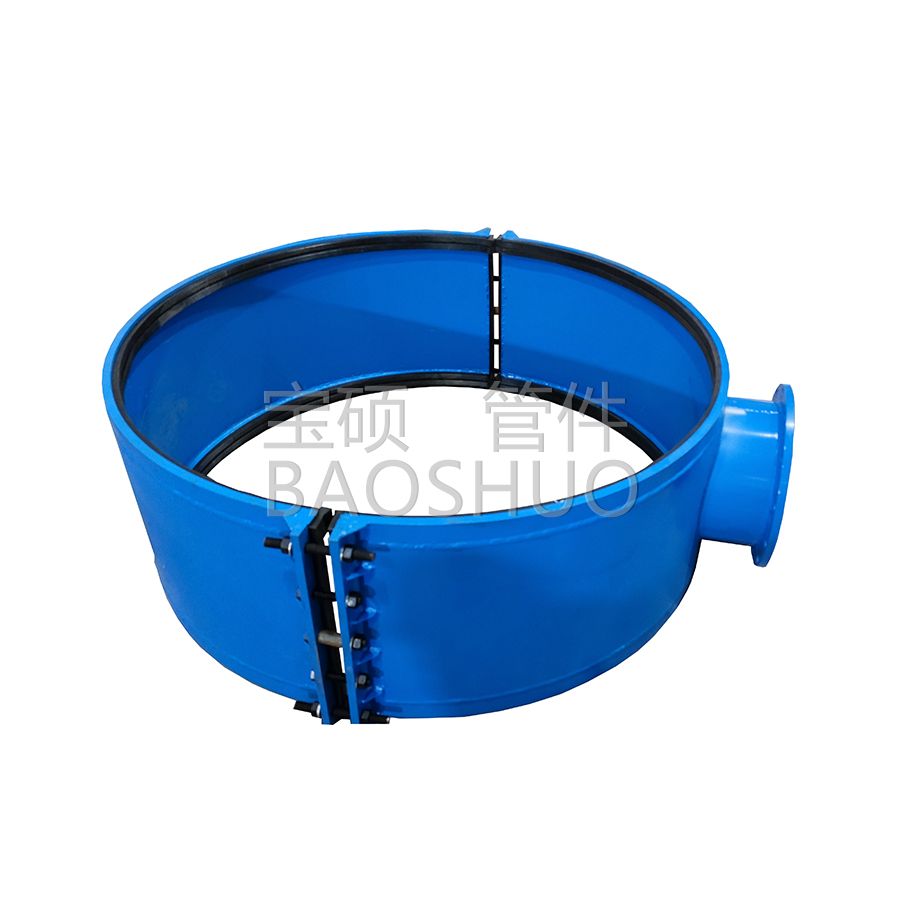

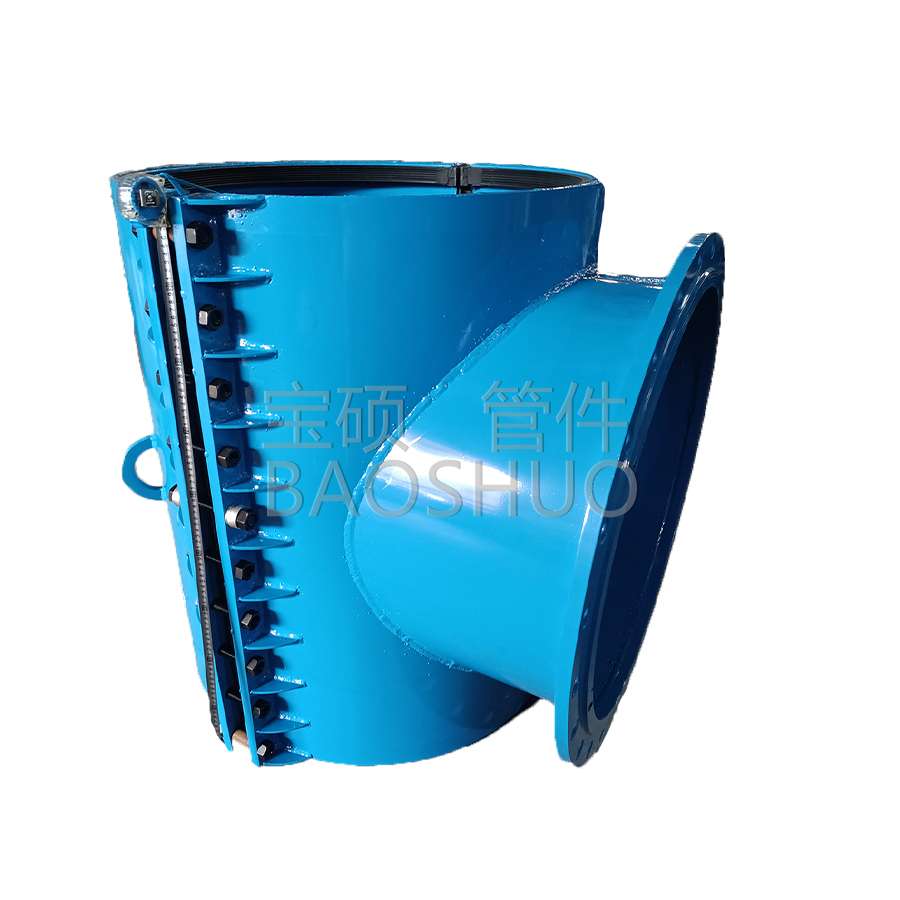

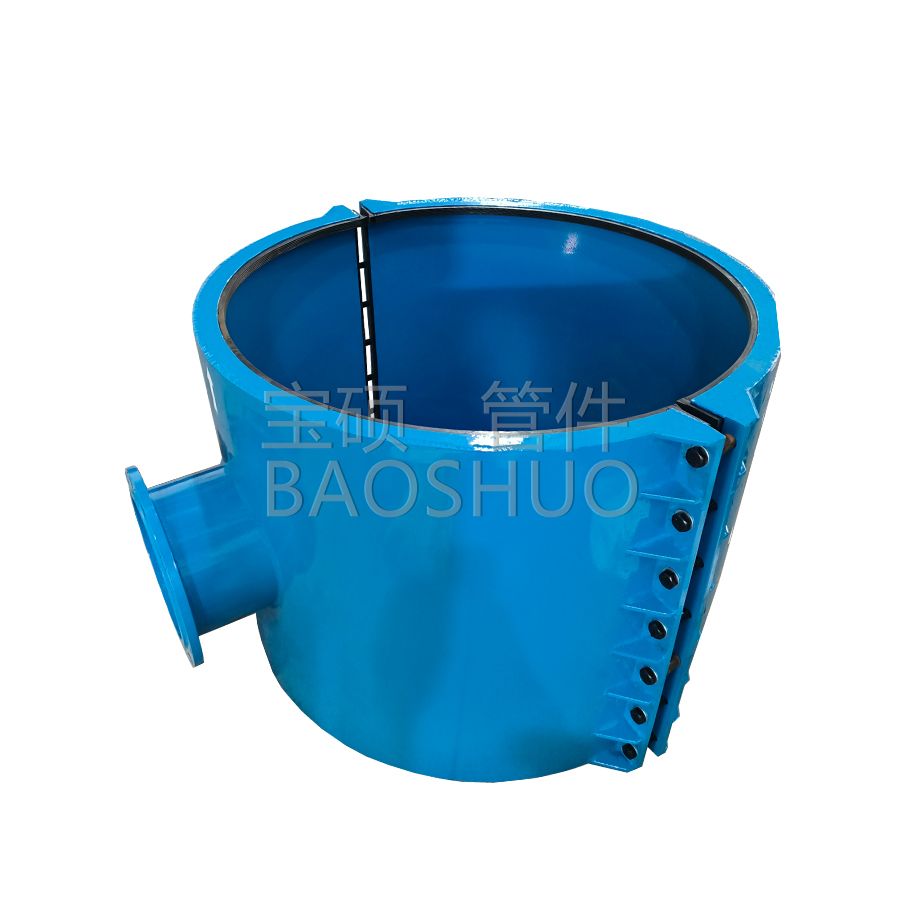

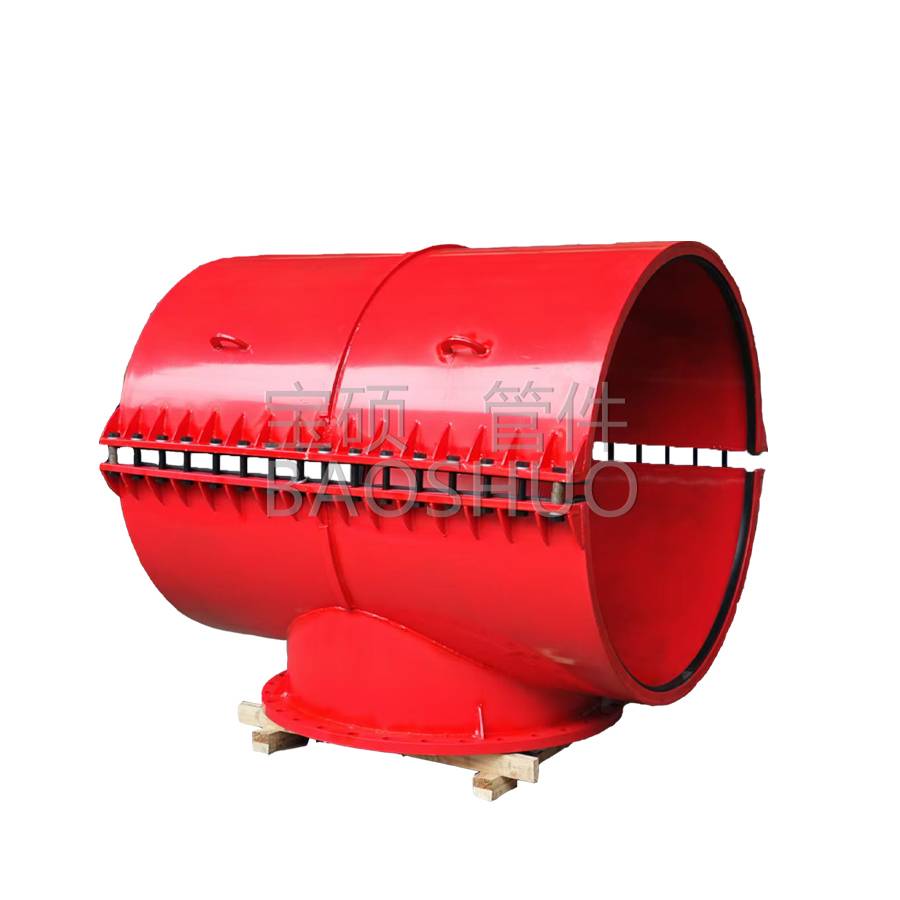

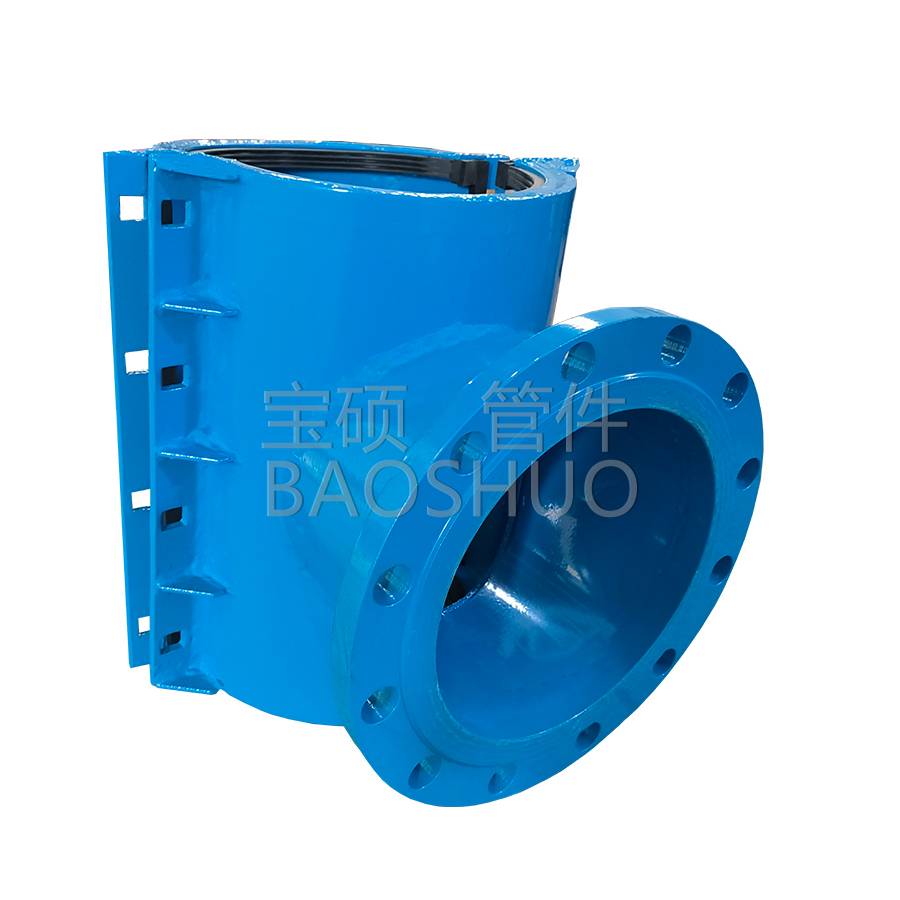

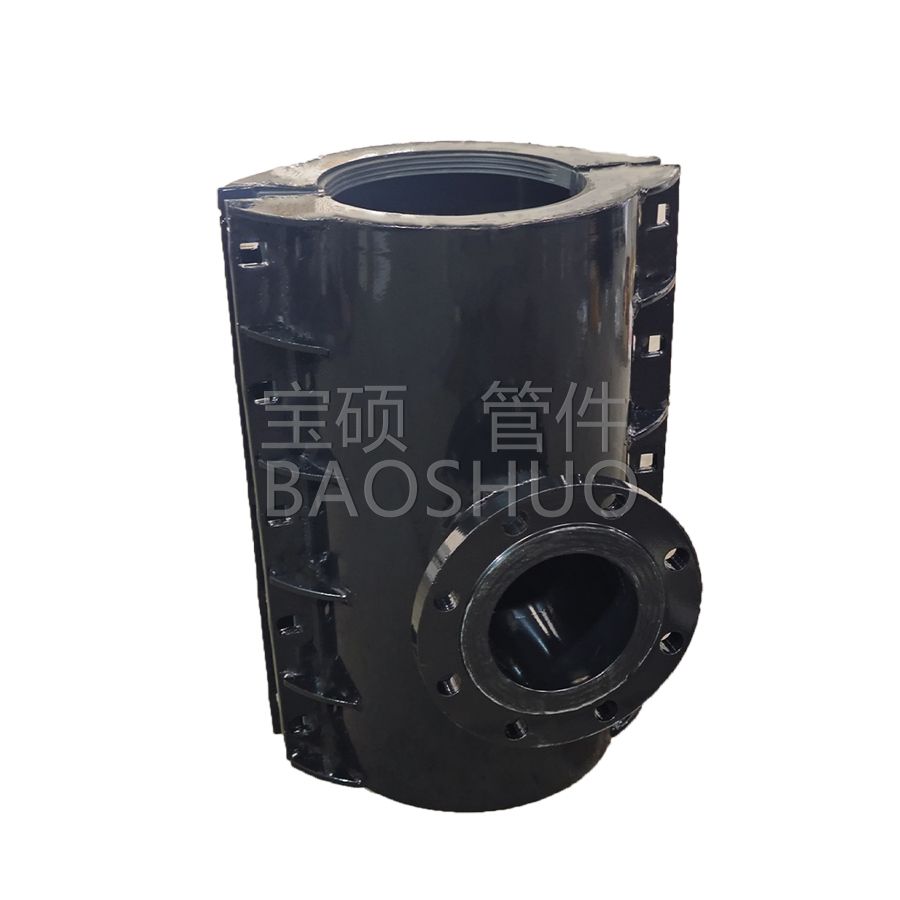

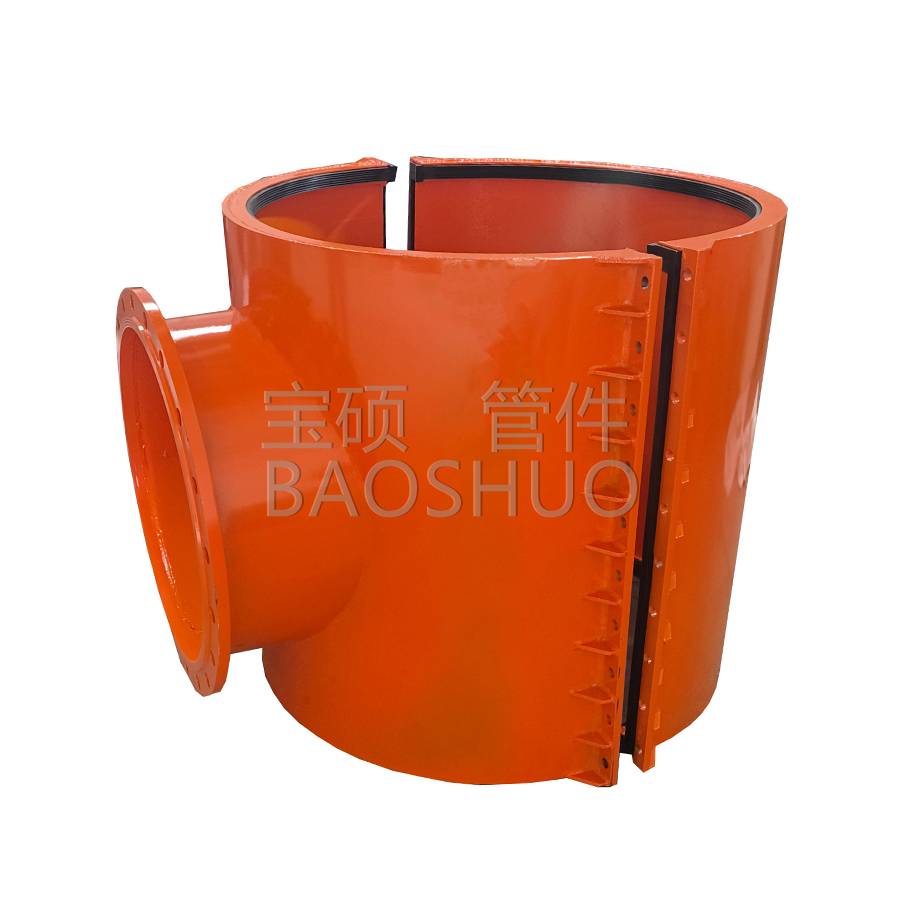

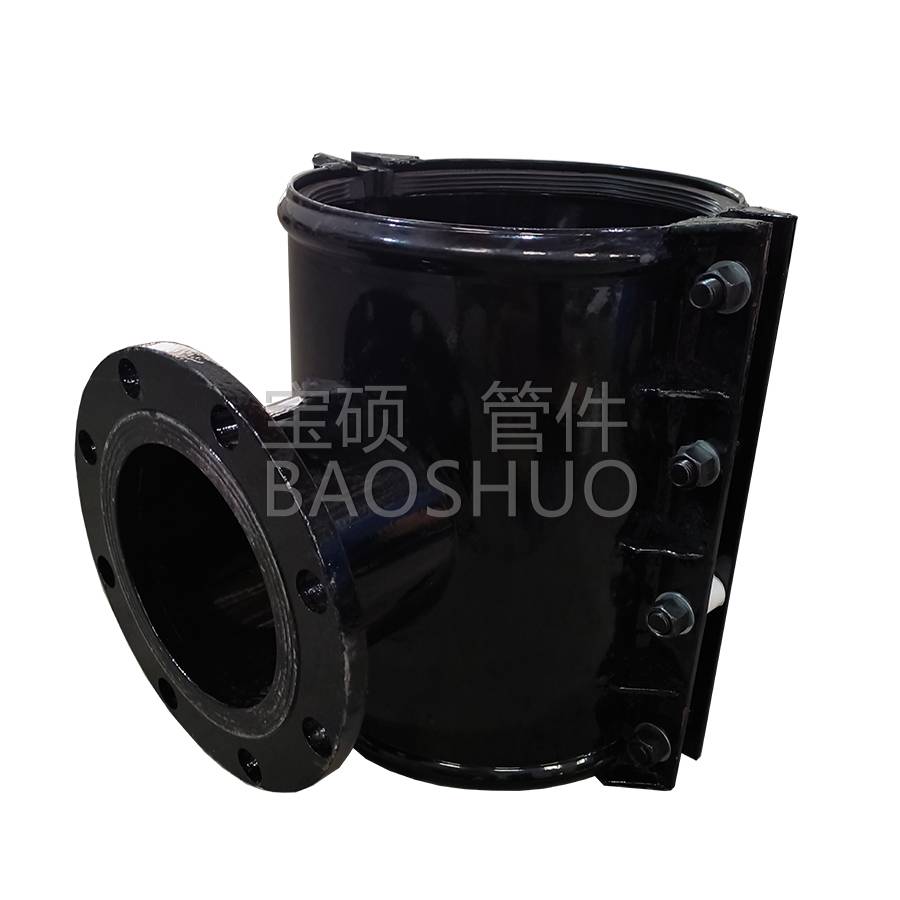

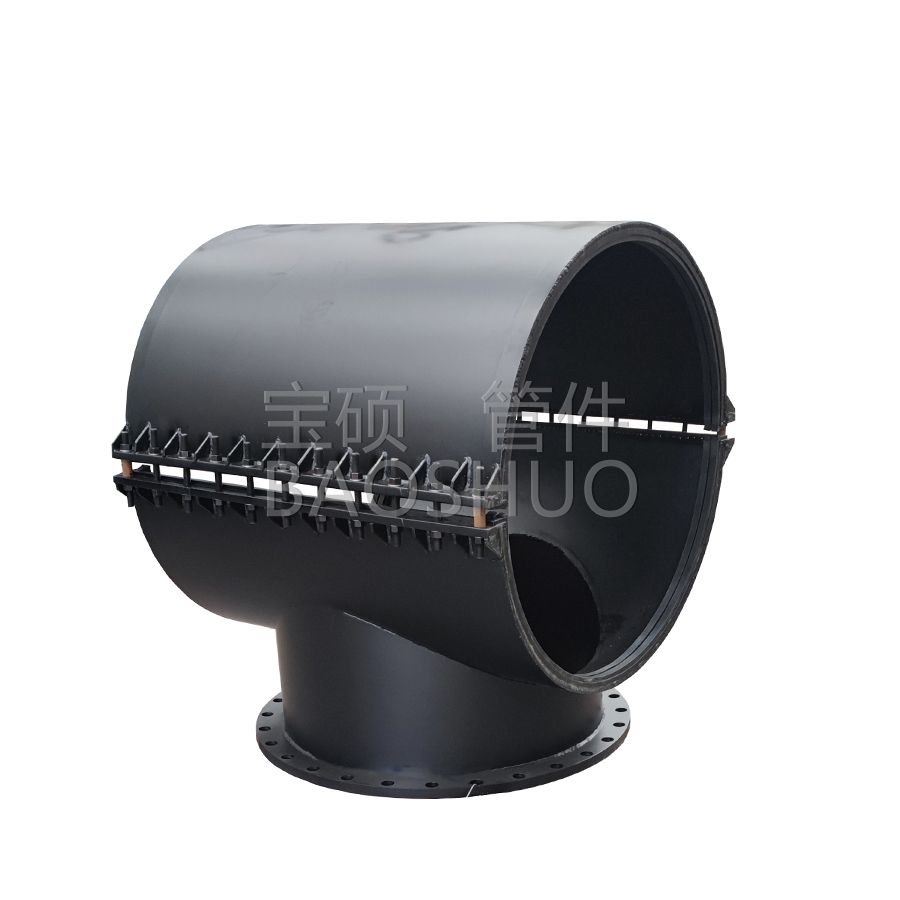

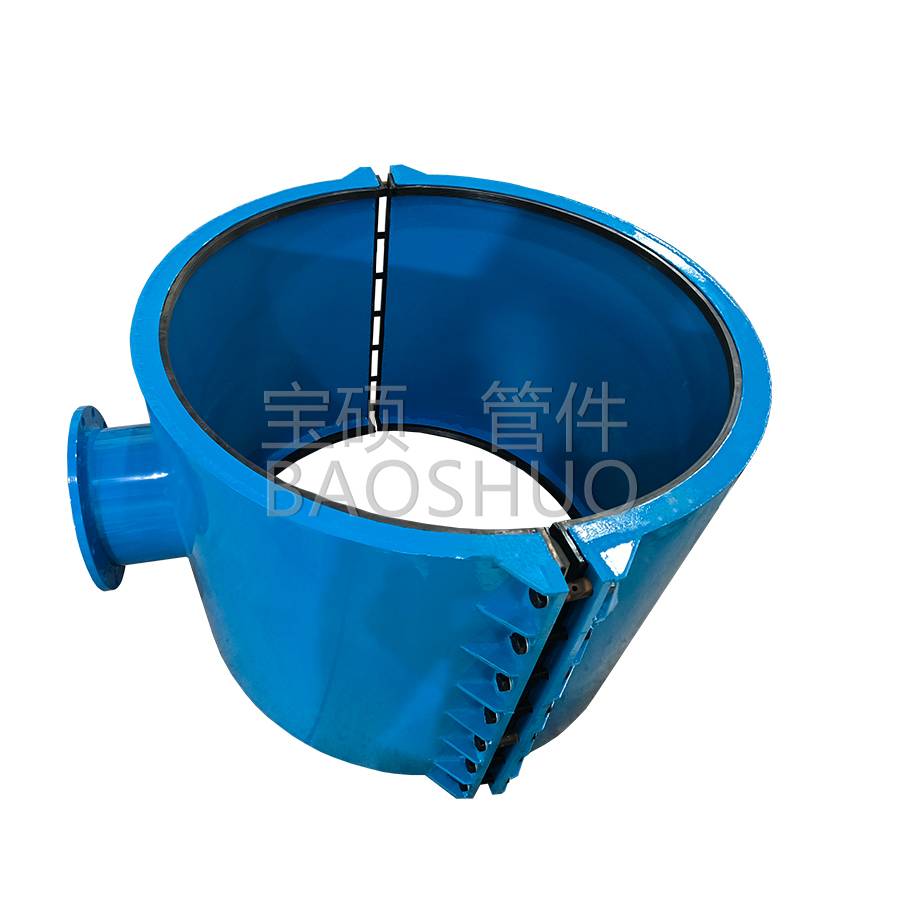

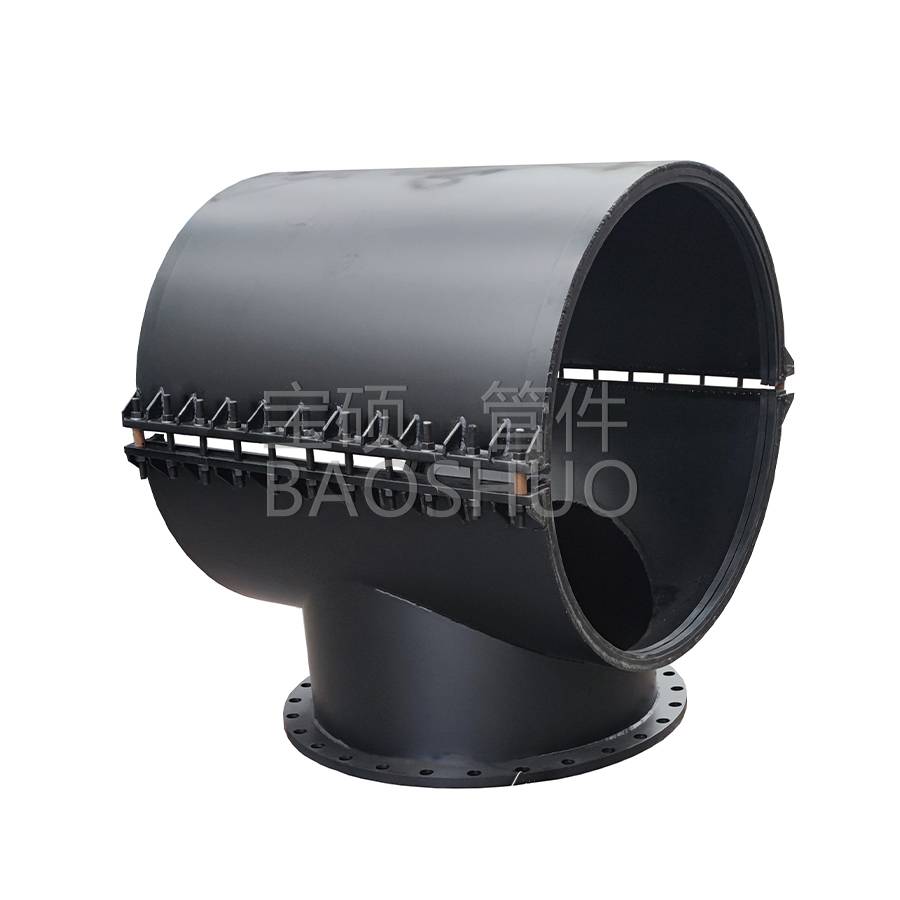

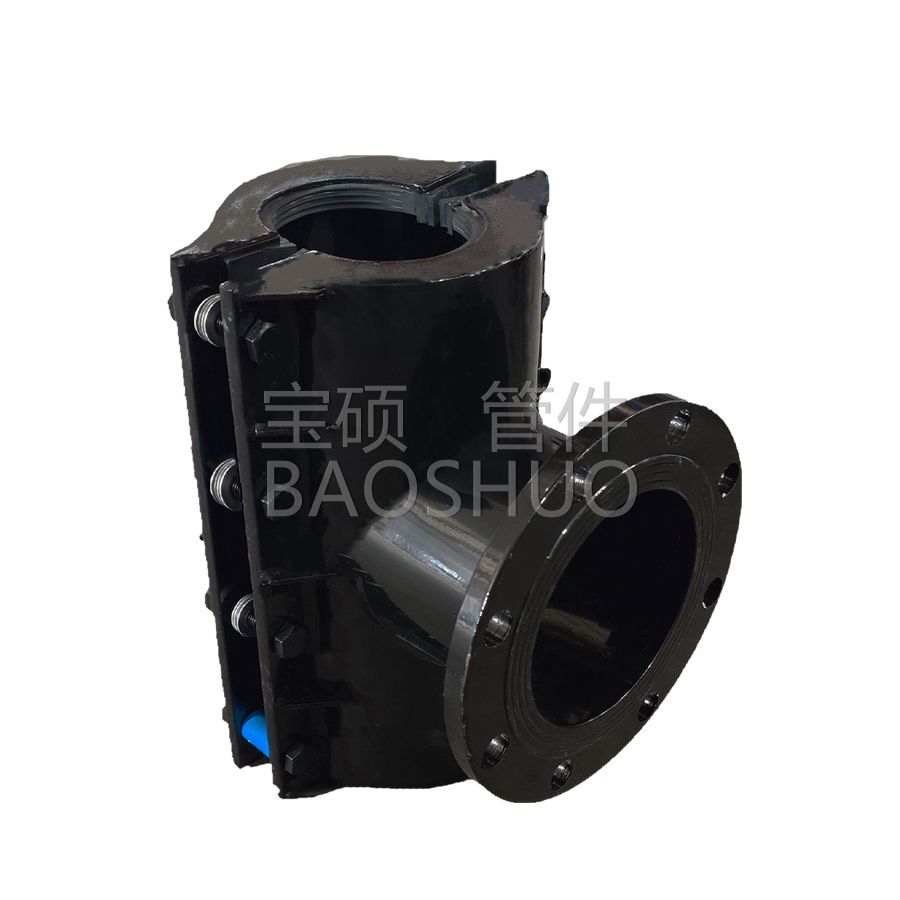

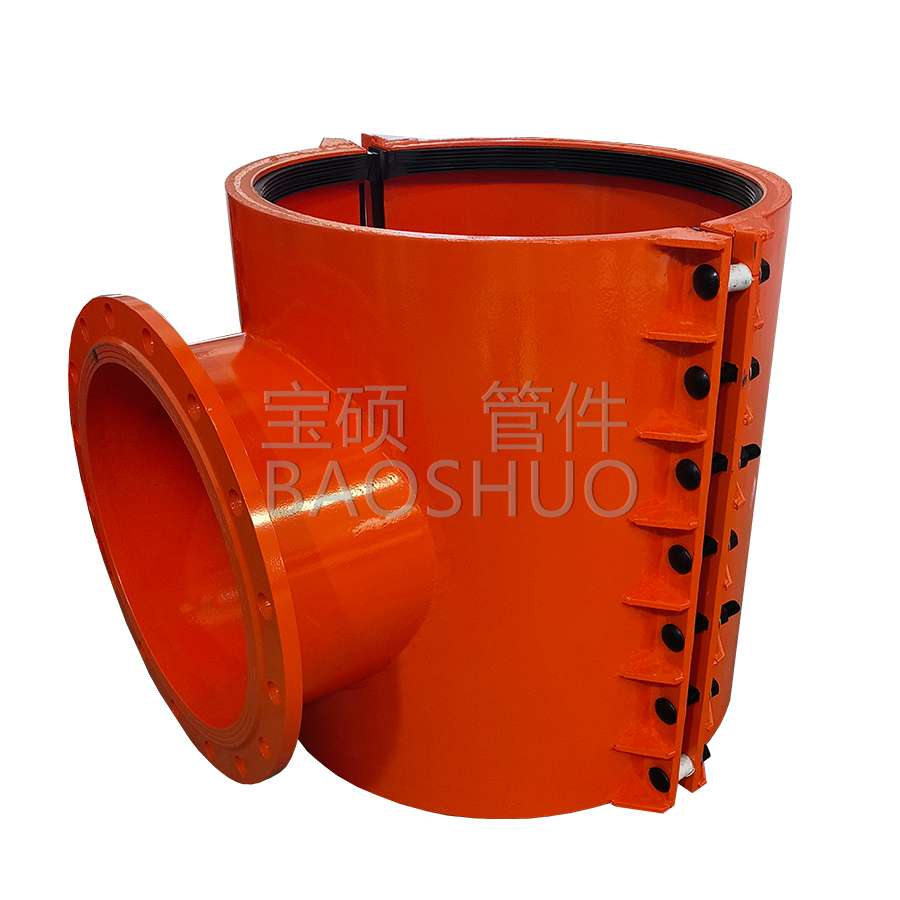

Tee with Flanged branch

The pipe clamp is a commonly used pipe connector, used to connect and fix the three-way joint of the pipeline. Its main function is to prevent leakage and damage after the pipeline opening work, and ensure the normal operation and service life of the pipeline.
Tee with Flanged branch can be divided into two categories according to the manufacturing material: metal and non-metal. Metal pipe clamps are made of carbon steel, stainless steel and aluminum alloy, etc., with high strength and high corrosion resistance, suitable for the transportation of various fluid media.

The advantages of Tee with Flanged branch include easy installation, high pressure resistance, strong corrosion resistance, etc. It has a unique structure and connection method, which can adapt to different pipe diameters and bending radii, and can withstand the internal and external pressure and vibration of the pipeline, ensuring the safety and stability of the pipeline.

When using Tee with Flanged branch, you need to follow certain steps. First, you need to clean the surface of the pipeline and make sure that the diameter of the pipeline matches the diameter of the tee pipe clamp. Then connect the pipe clamp to the pipeline and fix it firmly with bolts or nuts. It is necessary to check the sealing and installation quality of the pipe clamp to ensure the safety and stability of the pipeline system and to conduct subsequent hole opening operations after the pressure test is successful.

Pressure hole opening technology is an advanced process for mechanical drilling without stopping the pipeline, releasing pressure or emptying the medium. It is widely used in the transformation, maintenance and emergency repair of various pipelines.

Tee with Flanged branch hole opening pipeline type

PE pipe hole opening tee, PE wire mesh skeleton pipe hole opening tee, PVC pipe hole opening tee, FRP pipe hole opening tee, ductile iron pipe hole opening tee, PPR pipe hole opening tee.

Tee with Flanged branch application scenario

1. 🧿Oil and gas energy field
- Pipeline emergency repair: When the natural gas pipeline leaks, the plug wedge method or screw plug method is used to quickly plug the leak, and the bypass pipe is used to ensure continuous gas supply.

2.🧿Urban public pipe network
- Gas/water supply pipe network: Open holes and branches on buried gas pipes, and there is no need to stop gas and water during construction, reducing the impact on residents.
- Thermal pipes: Install monitoring instruments on steam pipes during the heating season, use high-temperature special opening machines, and high-temperature resistant opening tees.

3.🧿Industrial facility maintenance
- Process optimization: Open holes in circulating water pipes.

4. 🧿Emergency and environmental protection scenarios
- Dangerous goods pipelines: Open holes and replace valves in natural gas pipelines under pressure, and the whole process is closed and explosion-proof.
- Environmental protection transformation: The sulfur-containing sewage pipes of refineries are opened and introduced into the treatment unit to avoid medium leakage and pollution.

Field drawing
