Product parameter

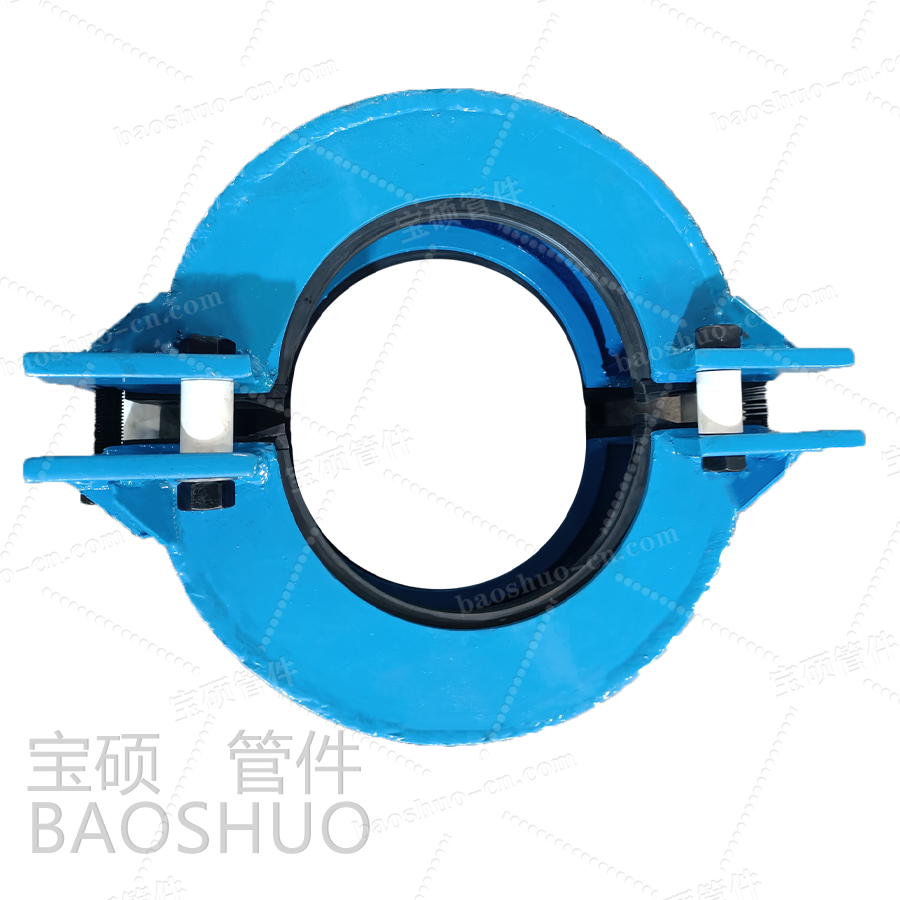

Flange leak repairer

1. This product combines the two technologies of plastic contact sealing and elastic contact sealing, which is suitable for pipes of various materials and effectively controls the leakage of flanges.
2. The on-site use effect is good, and it can be leak-proof. It adopts a block structure, and the on-site construction speed is fast, no water outage is required, and the construction excavation volume is small. It only needs to dig a small
working pit to operate, saving a lot of manpower, material resources and time, and quickly achieve the purpose of plugging leaks.
3. The working pressure of the leak plugger: 0.25-1.6MPa, and higher pressure repair clamps can also be customized. It is suitable for emergency repairs at flange connections, emergency repairs for flange leakage, repairs for flange detachment, emergency repairs for flange leakage, emergency repairs for PE pipe flange leakage, emergency repairs for seamless steel pipe flange leakage, emergency repairs for PE steel skeleton flange leakage, emergency repairs for PVC pipe flange leakage, and emergency repairs for PE steel wire skeleton pipe flange leakage. Non-standard products can be customized separately.

Flange-covered Pipe Repair Clamp work scenarios include:

According to different media environments, oil-resistant flange Pipe Repair Clamp and stainless steel flange Pipe Repair Clamp can be customized

🔹Chemical and petrochemical industry: leakage of refinery pipeline flange connection, leakage of corrosive gas pipeline flange connection, leakage of liquid chemical pipeline flange connection, leakage of reaction intermediate pipeline flange connection, and leakage of catalyst slurry pipeline flange connection.

🔹Petroleum and natural gas industry: leakage of offshore/onshore oil and gas field pipeline flange connection, leakage of oil and gas pipeline flange connection, leakage of refinery pipeline flange connection, leakage of natural gas processing plant pipeline flange connection, leakage of crude oil pipeline flange connection, leakage of finished oil pipeline (gasoline, diesel, aviation fuel flange connection), leakage of liquefied petroleum gas pipeline flange connection, and leakage of sulfur-containing and salt-containing sewage pipeline flange connection.

🔹Food and beverage industry

🔹Pharmaceutical and biotechnology industry: pure water system pipe flange connection leakage, (ethanol, acetone, etc.) pipe flange connection leakage, fermentation liquid pipe flange connection leakage.

🔹Water treatment and water supply: drinking water treatment plant pipe flange connection leakage, sewage treatment plant pipe flange connection leakage, seawater desalination plant pipe flange connection leakage, building water supply system pipe flange connection leakage, raw water pipe flange connection leakage, treated drinking water pipe flange connection leakage, pure water pipe flange connection leakage, ultrapure water (electronic grade) pipe flange connection leakage, chemical agent (coagulant, disinfectant such as chlorine, ozone water) pipe flange connection leakage, some sewage/reclaimed water (especially when corrosive) pipe flange connection leakage.

🔹Energy and power industry

🔹Ships and marine engineering: leakage of ship ballast water system pipe flange connection, fire protection system pipe flange connection, fuel system pipe flange connection, lubricating oil system pipe flange connection, seawater cooling system pipe flange connection, domestic water system pipe flange connection, chemical tanker cargo hold pipe flange connection. Seawater pipe flange connection leakage, ballast water pipe flange connection leakage, fuel pipe flange connection leakage, lubricating oil pipe flange connection leakage, fresh water pipe flange connection leakage, fire protection water pipe flange connection leakage, chemical cargo (select the appropriate stainless steel grade according to the nature of the cargo)

Steel pipe flange Pipe Repair Clamp, flange leakage repairer cleans the entire flange on both sides of the pipe, so that the surface of the pipe in contact with the Pipe Repair Clamp rubber meets the installation requirements.

Flange Pipe Repair Clamp maintenance principle

External repair: operate outside the pipe, no need to cut or replace the pipe.
Mechanical clamping: By screwing the screws diagonally, the force-bearing surfaces of the fasteners are evenly held, and the high-strength bolts provide huge tightening force.
Elastic sealing: Our company uses high-quality rubber materials and uses the compression deformation of the sealing rubber to achieve sealing.
Radial sealing force: The axial force of the bolt is converted into the key radial sealing pressure to achieve the sealing and plugging effect.
Pressure-assisted sealing: The internal pressure of the pipeline helps to enhance the sealing effect.

Field drawing
