Product parameter

1. Applicable pipe types

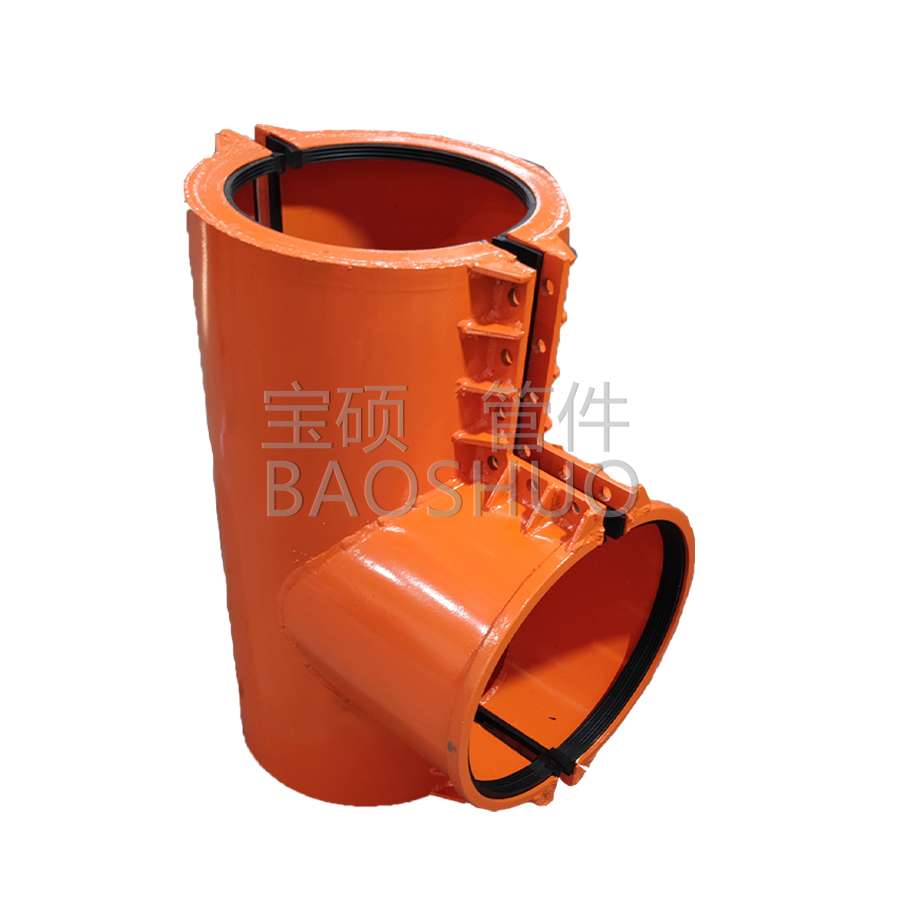

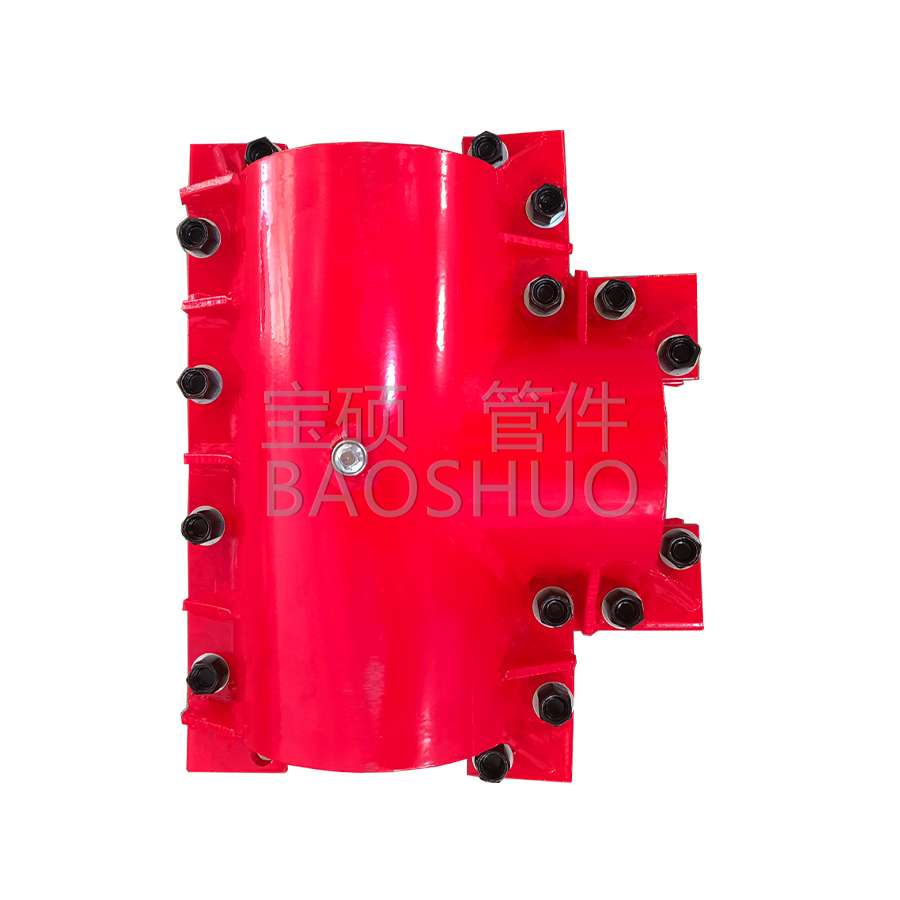

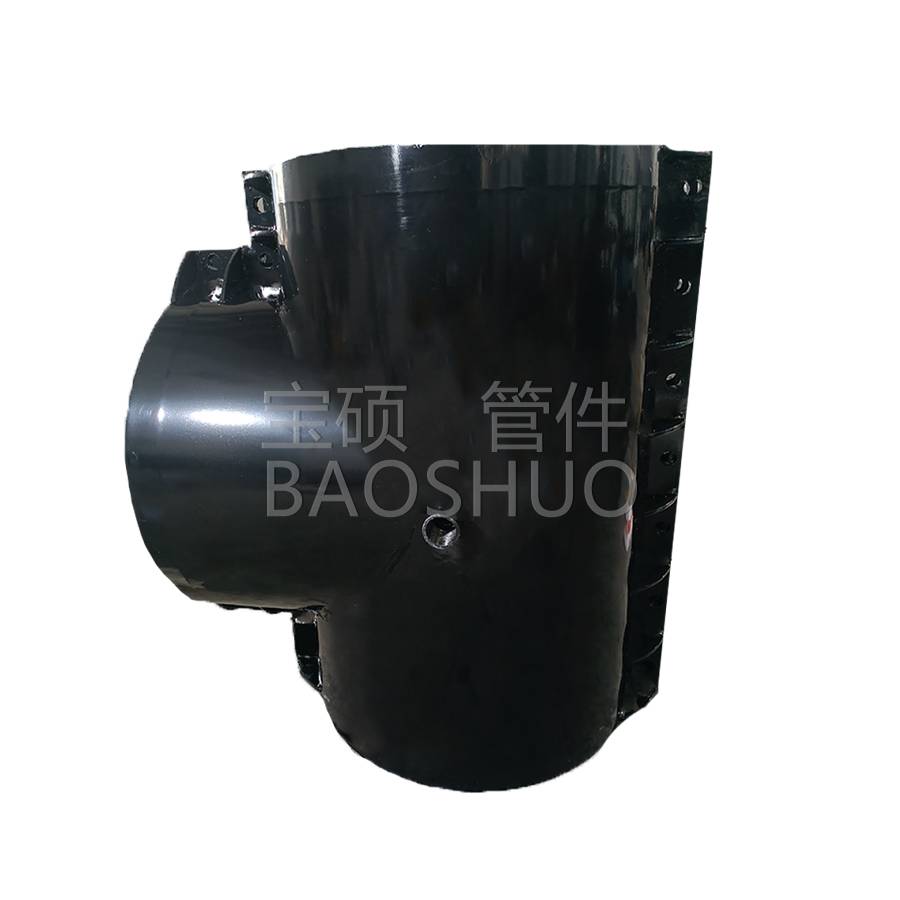

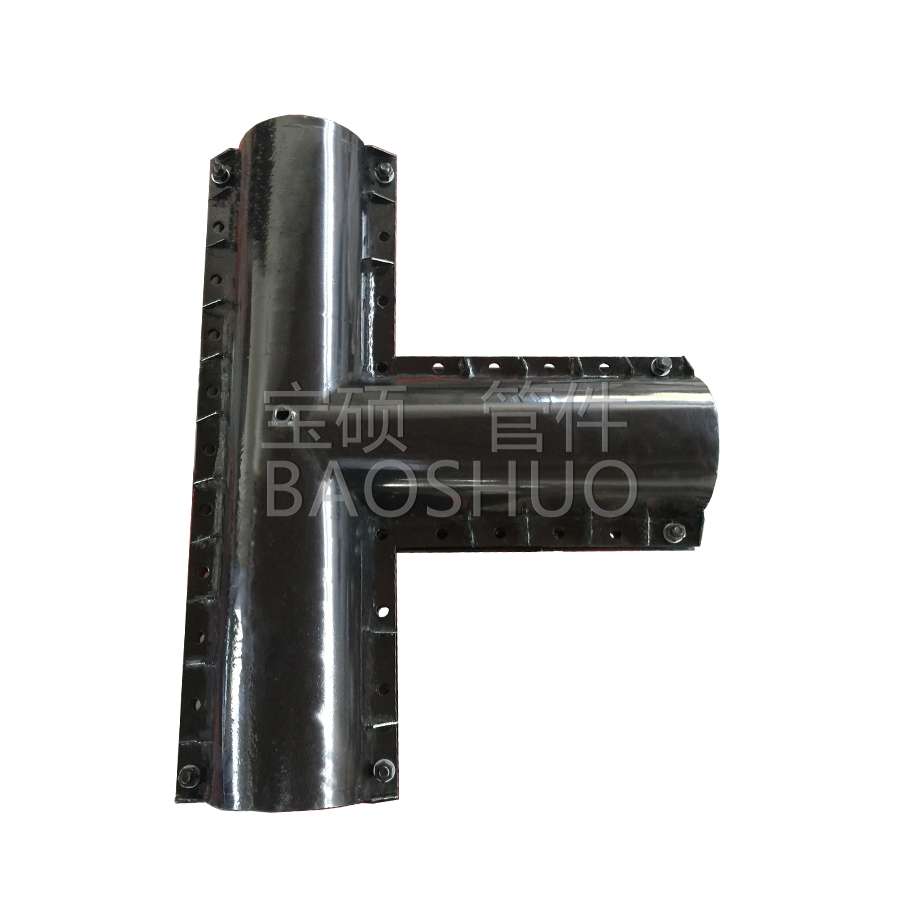

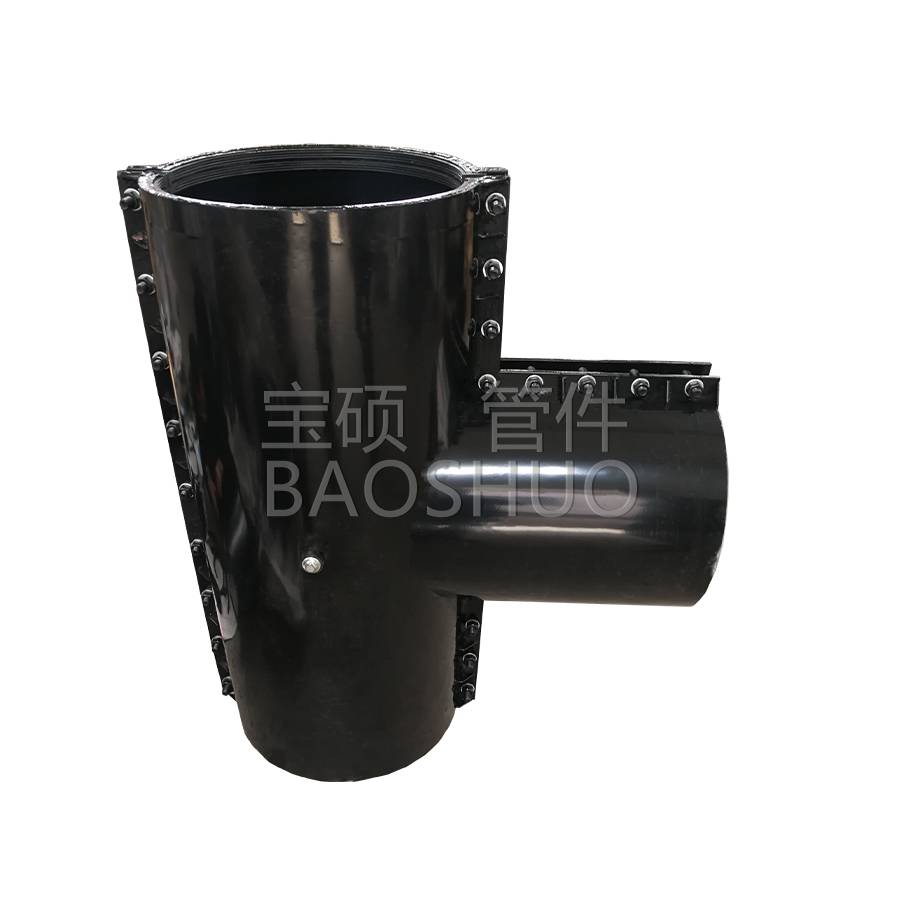

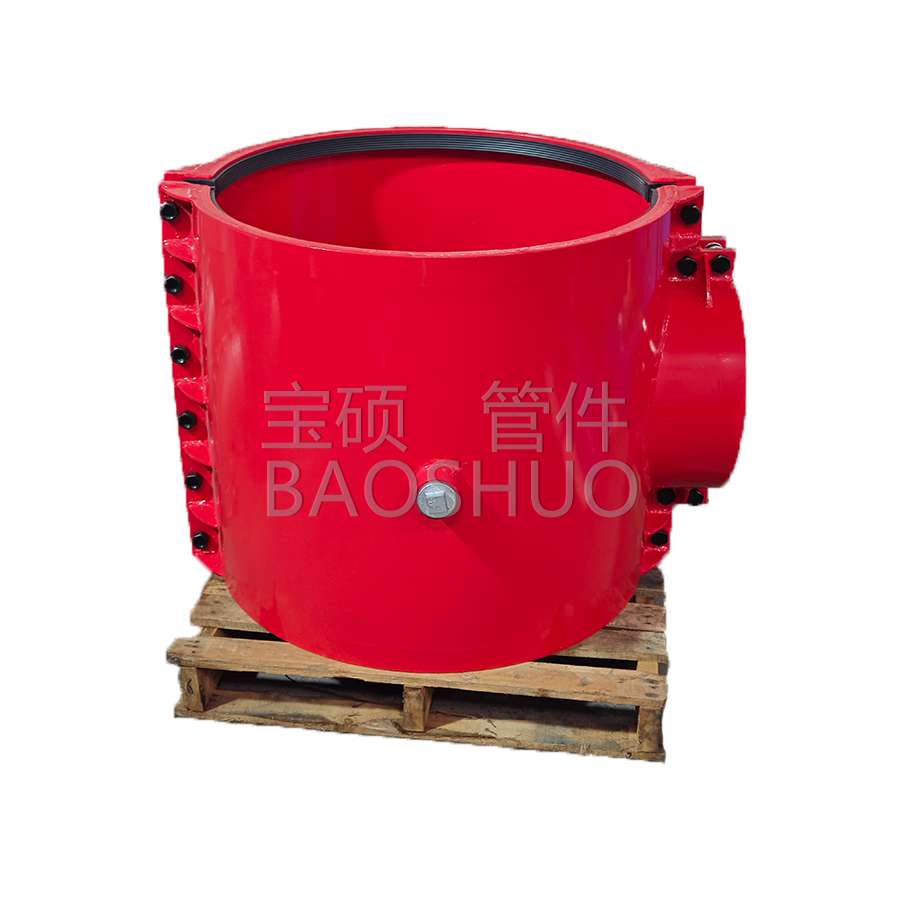

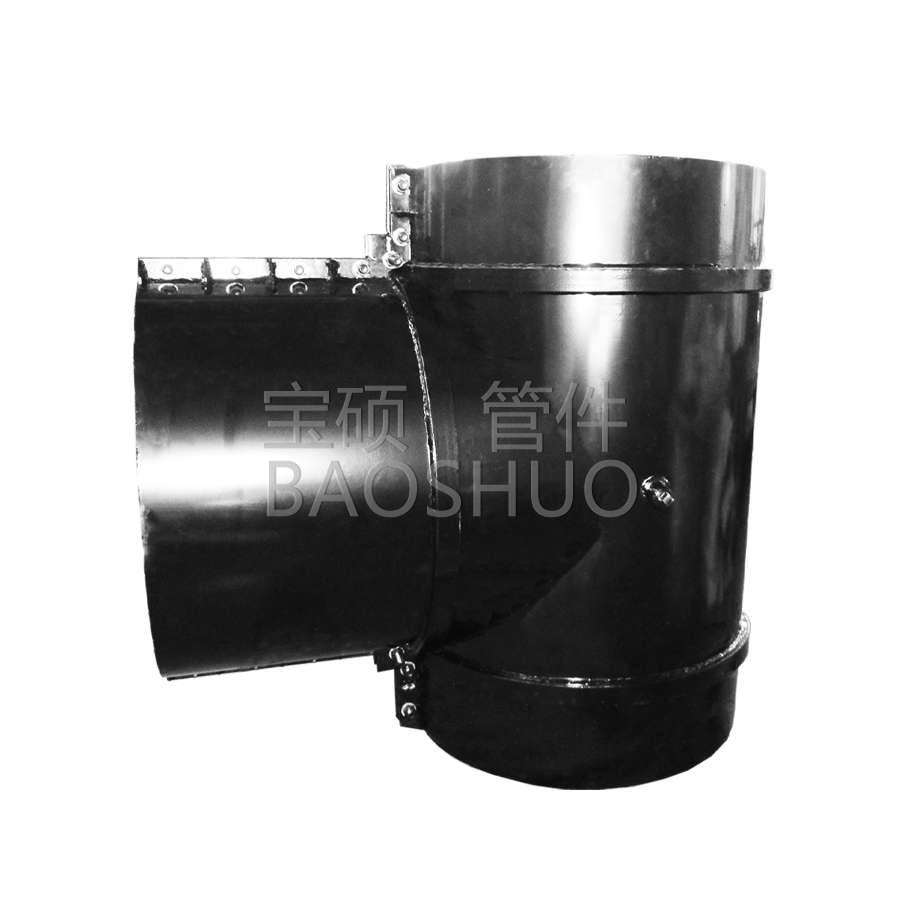

1. If the tee and tee on PVC pipe, PE pipe, PPR pipe, PE composite pipe, ABS pipe or other pipes with the same outer diameter are leaking, wrap the tee and tee for emergency repair; if the tee fittings of 20-1000UPVC water supply pipe or PVC-M water supply pipe are leaking, wrap the whole tee for emergency repair;

2. If the tee and tee on DN15-DN200 galvanized pipe or other pipes with the same outer diameter are leaking, wrap the tee and tee for emergency repair;

3. 40-DN2600 ductile iron pipe or other pipes with the same outer diameter, the positive tee and the negative tee are leaking, and the positive tee and the negative tee are all covered for repair:

4. DN50-DN3500 steel pipe or other pipes with the same outer diameter, the positive tee and the negative tee are leaking, and the positive tee and the negative tee are all covered for repair:

5. DN100-DN4000 glass fiber reinforced plastic pipe or other pipes with the same outer diameter, the positive tee and the negative tee are leaking, and the positive tee and the negative tee are all covered for repair;

II. Applicable pipe connection types

Plastic pipe butt tee is damaged, plastic pipe bonding connection weld is leaking, electric fusion tee is leaking, hot fusion tee is leaking, ductile iron pipe socket tee is leaking, etc., any tee repair.

III. Performance characteristics

1. The construction is very convenient, no need to stop power and water, just find the leaking place, hold the pipe with two half joints, and tighten the nut.
2. It is applicable to a wide range of pipe materials and has a small construction volume, which greatly saves manpower and material resources and ensures that it is leak-proof.
3. It is a green and environmentally friendly emergency repair equipment with good pressure-bearing performance, corrosion resistance, erosion resistance, aging resistance, non-toxicity, and no radiation.

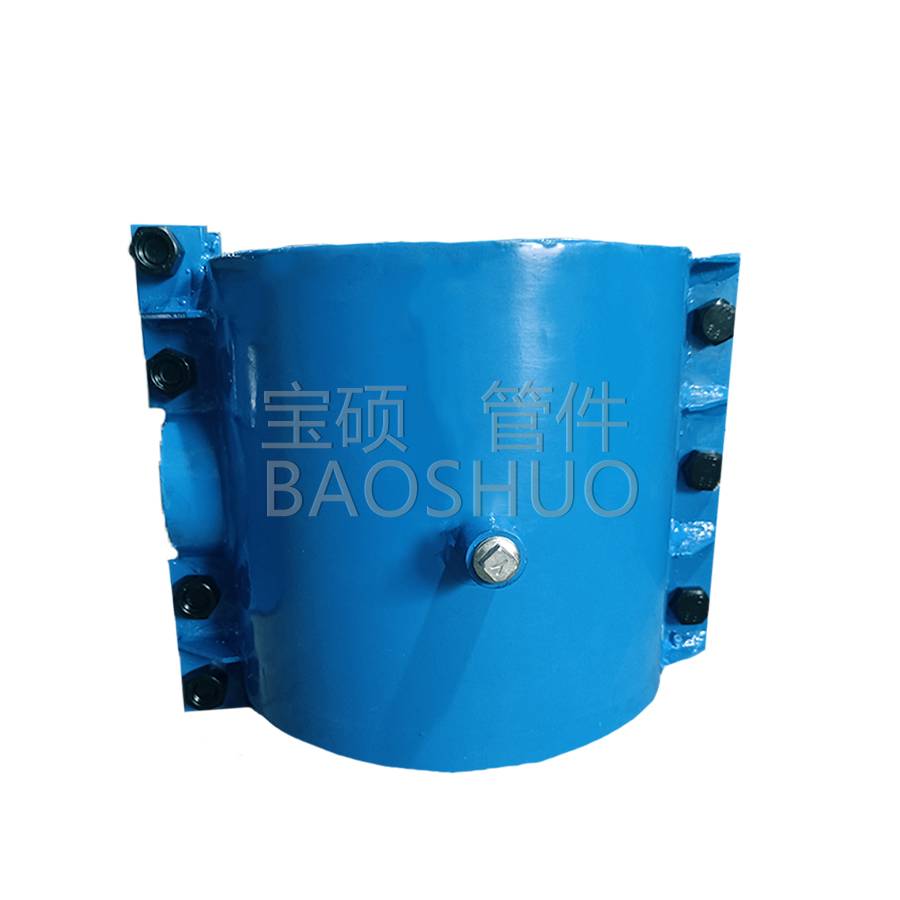

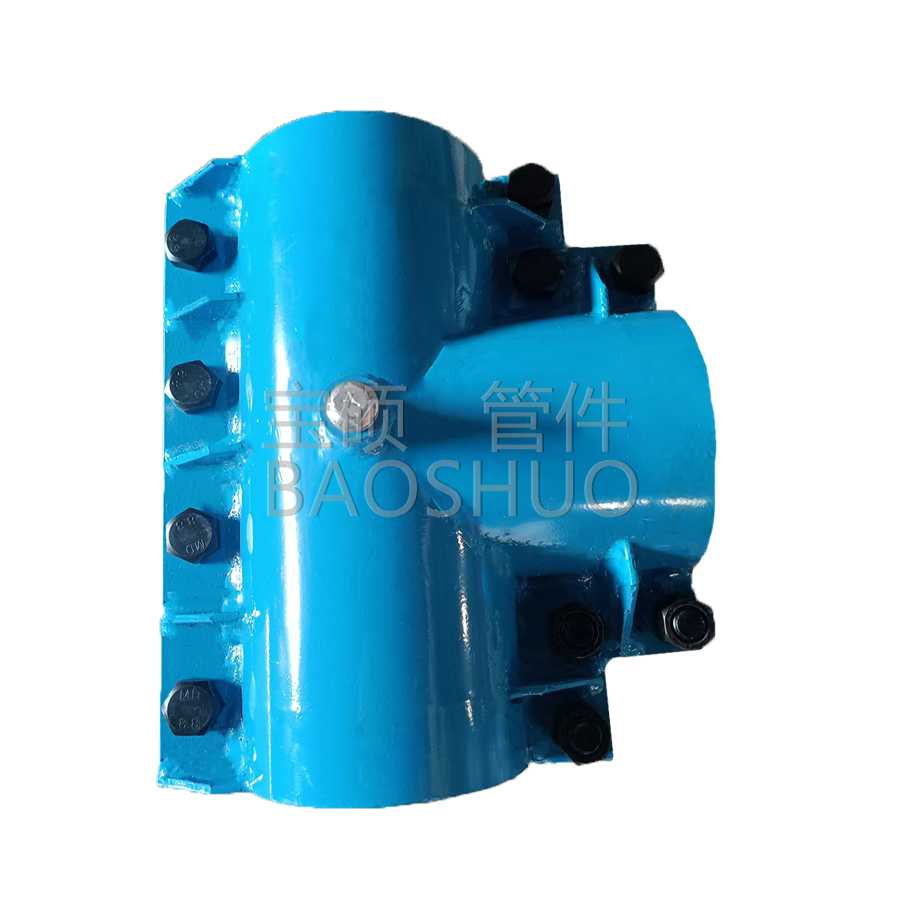

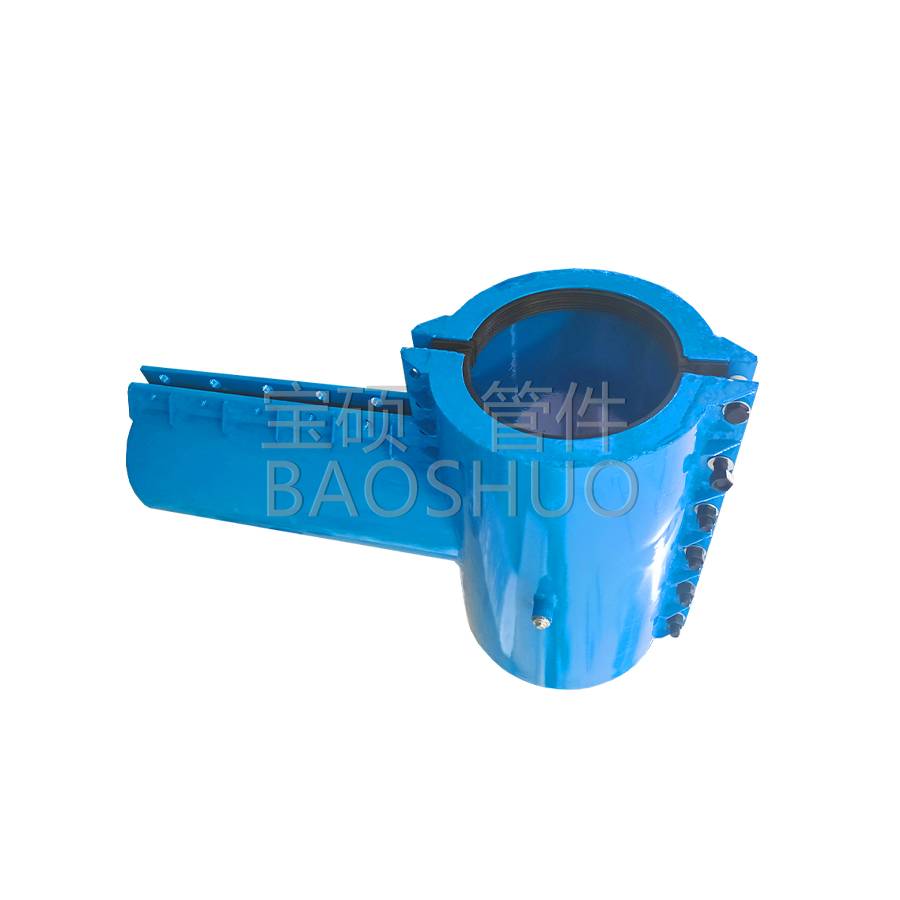

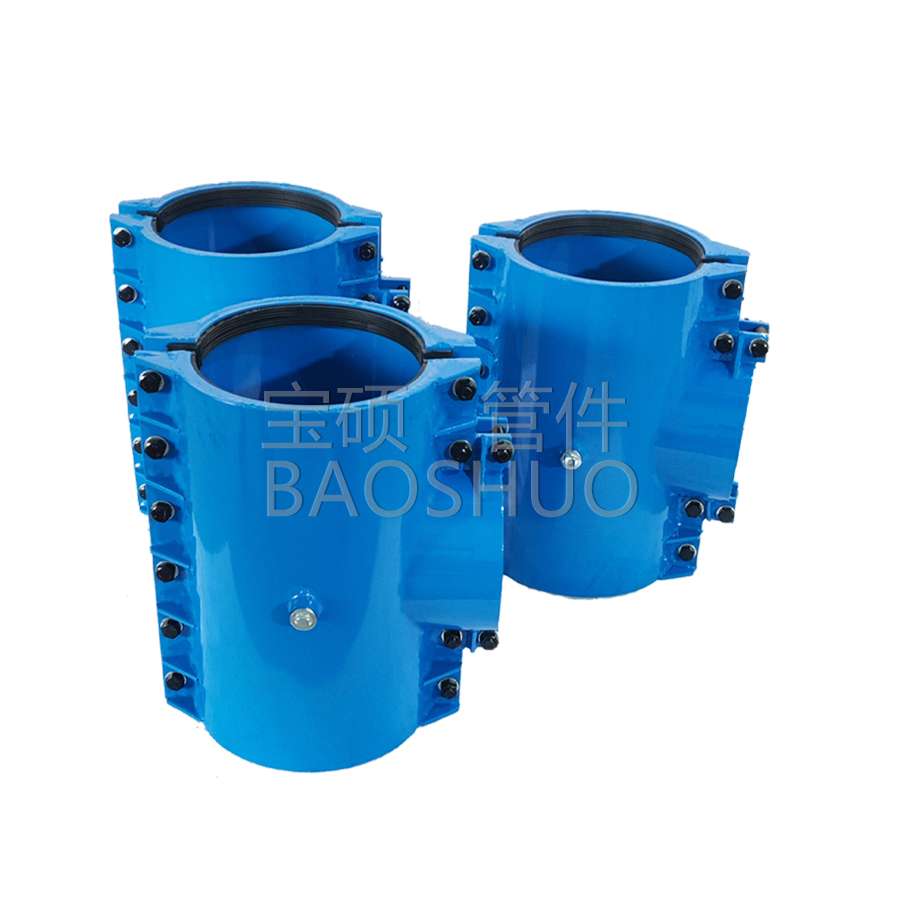

Pipe Repair Clamp is composed of 2 Carbon steel,2 rubber liners for sealing and 6 bolts.  Working pressure up to 1.6Mpa(16 bar).  Compared with other pipe repair clamps,it has better sealing effect and higher pressure,and both sides are connected to make the pressure more even.
suitable for Electric Fusion Tee leak，Hot Melt Pipe tee leak ，PE socket tee, PE butt tee, electric fusion tee PPR tee, PVC tee PVC bonding positive tee parts,  PE butt tee part, PE melting positive tee parts, Tee joint of steel pipe,the weld weld welding, the steel pipe weld hole repair,The pipe repair clamp is also suitable for pipes with a diameter difference of 1-2mm from the standard pipe diameter.
Can be used for elbow pipe, hole, sand hole, fracture, welding mouth leakage.
* easy to install
*strong pressure resistance, corrosion resistance
* wide range of use, any material pipeline and working environment
* Pipe body material can choose carbon steel,You can customize stainless steel 304,316,316L
*You can customize High temperature resistance Pipe Repair Clamp Corrosion resistance Pipe Repair Clamp  High pressure resistance Pipe Repair Clamp
#pipeline #pipeline manufacturer #Water main maintenance
1.Pipe repair clamp is suitable for cast iron pipe,cement pipe,PPR pipe,PE pipe,etc.  easy and convenient to use,no need to stop the water,no need to cut the water pipe,it saves a lot of labor and time,and quickly achieve the purpose of plugging the leak.

2.Suitable for various metal or non-metallic pipelines, it can quickly repair sand holes and cracks caused by aging and corrosion without stopping pressure or replacing pipelines.  Easy installation and high construction efficiency

3.  Express freight is calculated by weight.  Different specifications and weights are different.  If you need any specifications, contact customer service for freight.  We recommend that you send logistics if the quantity is large or the large diameter is large.  If there is any urgent delivery, you can pick it up at home and contact customer service for instructions.

4.  For other large caliber, contact customer service.  Non-standard sizes can be customized.

NOTE: please check the outer diameter of the leaking pipe,leakage area length and front-to-back distance,make sure you have enough space for the installation,this is very important .And make sure the surface of the pipe repair clamp is clean before using it.  Different types of iron pipe,cement pipe,PPR pipe,PE pipe,etc.  diameter is not the same size, when buying our products, you need to accurately measure the pipe diameter and then purchase the corresponding pipe repair clamp.   In addition,please tighten the bolts in symmetrical order to avoid damage to the rubber lining due to partial load.
