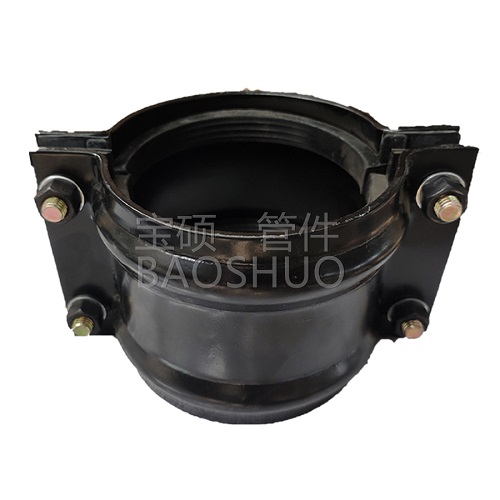

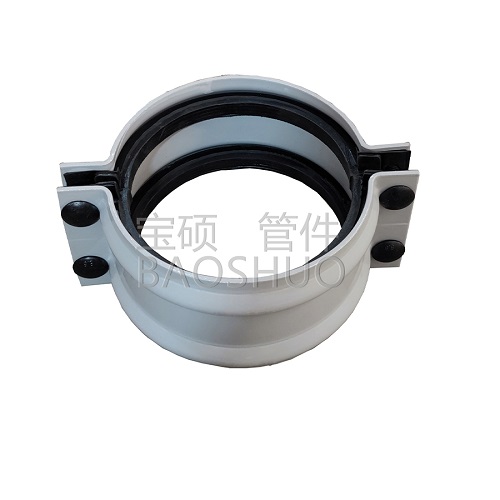

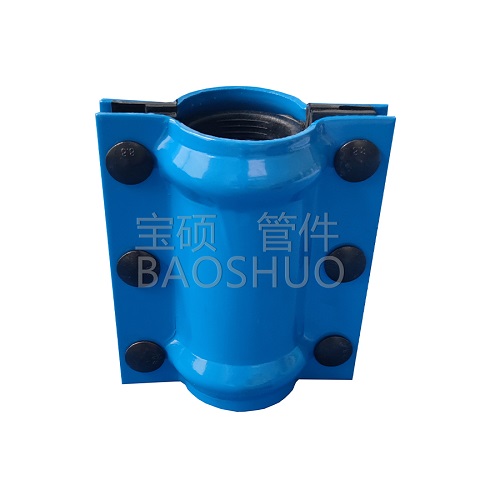

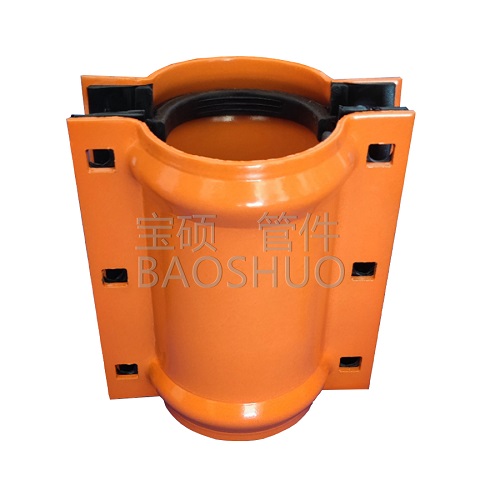

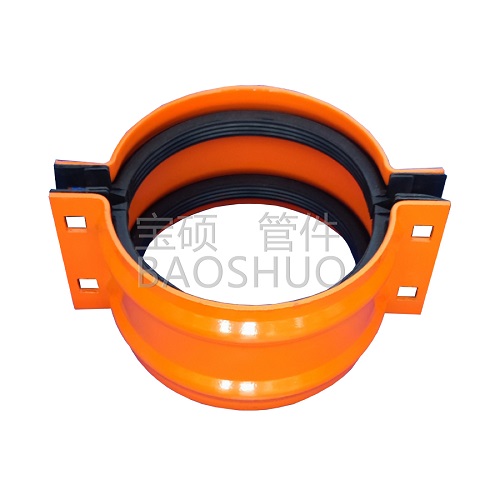

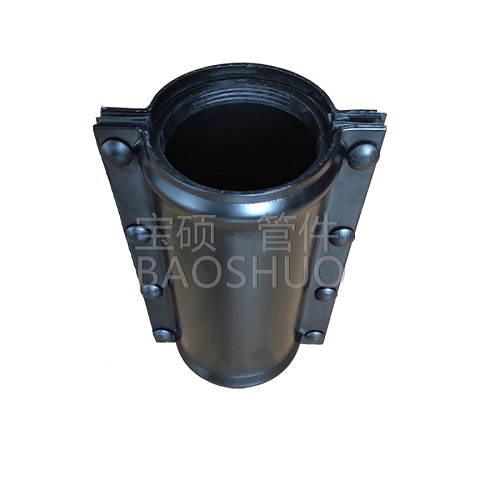

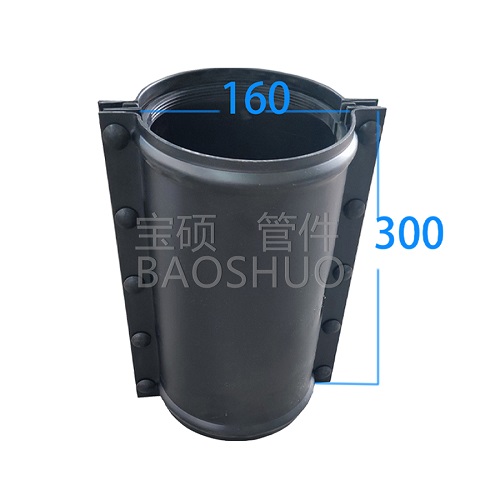

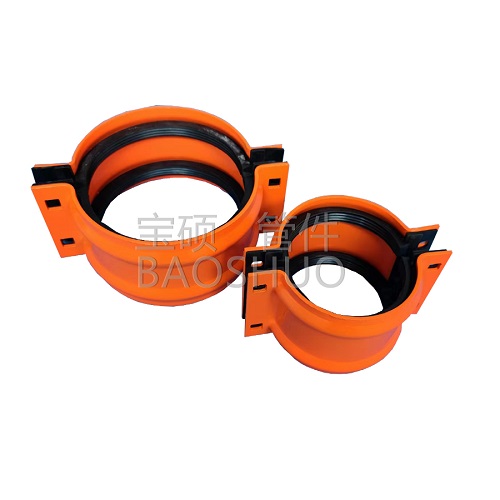

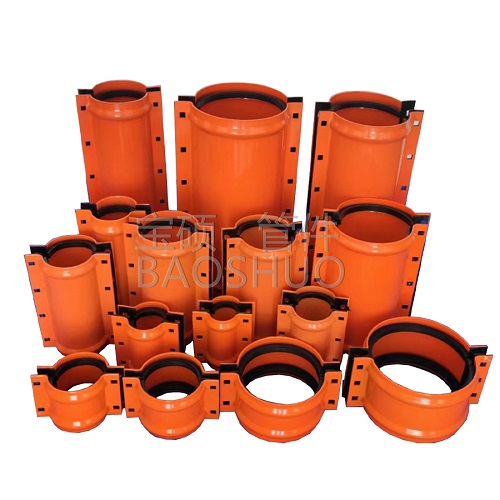

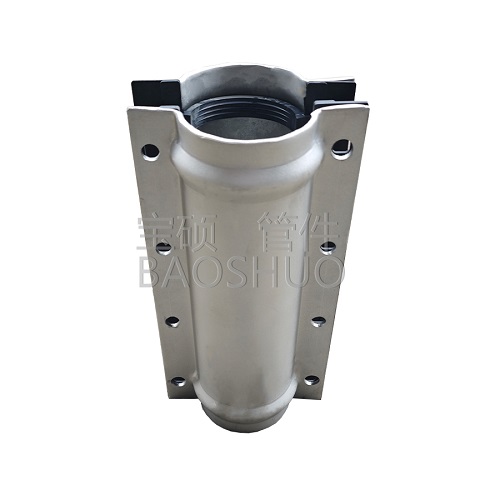

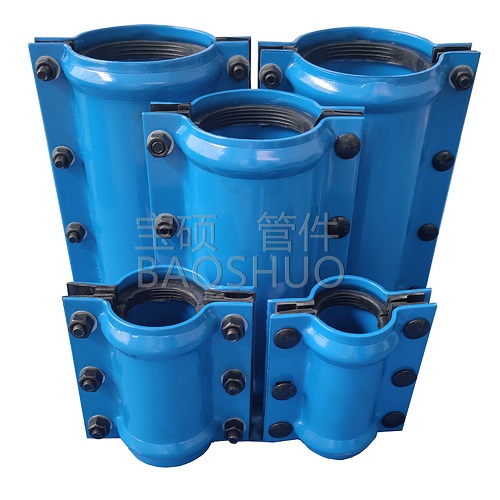

Straight pipe Repair Clamps 1
It is suitable for the repair of straight pipe, steel pipe weld hole,PE, PVC, PPR,PE wire mesh composite pipe and other plastic pipe straight pipe leakage, butt weld water leakage repair, no need to saw pipe, no need to stop water, quick maintenance.
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
Φ20-200mm |
Base material |
Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
Product parameter
|
|
|
1. Scope of application
1. Φ20-200 PVC pipe, PE pipe, PPR pipe, PE composite pipe, ABS pipe or other pipes with the same outer diameter leak;
2. PE pipe, PPR pipe, PE steel-plastic composite pipe, ABS pipe and other butt joints leak;
3. DN15-200 galvanized straight pipe;
4. Repair Clamps can be customized for any standard pipes such as American standard, British standard, Japanese standard, etc.;
5. Repair Clamps can be customized for any other outer diameter specifications and any length.
2. Applicable pipe connection types
Leakage of steel pipe welding seams, leakage of plastic pipe butt joints, emergency repair of PVC joint seams, emergency repair of PE joint seams, emergency repair of PVC joint seams, and repair of PE steel-plastic composite pipe joint gaps.
3. Performance characteristics
1. Emergency repair and installation are convenient and fast, no need to saw the pipe, emergency repair without water shut-off! One hug to get it done!
2. High pressure level and high strength!!!
Field drawing
