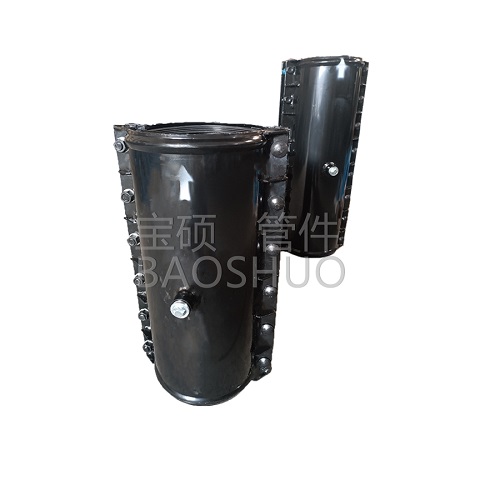

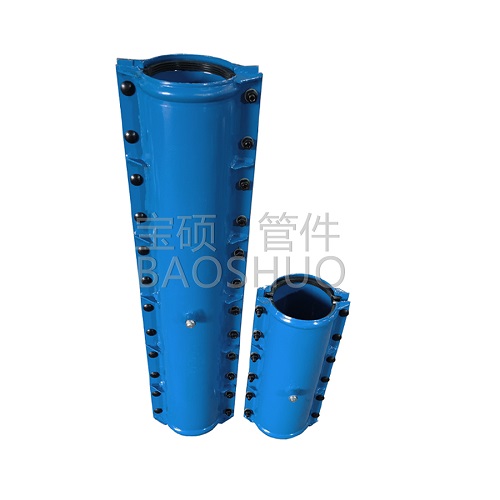

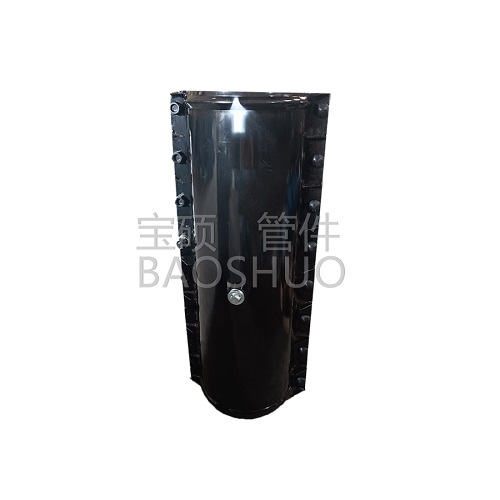

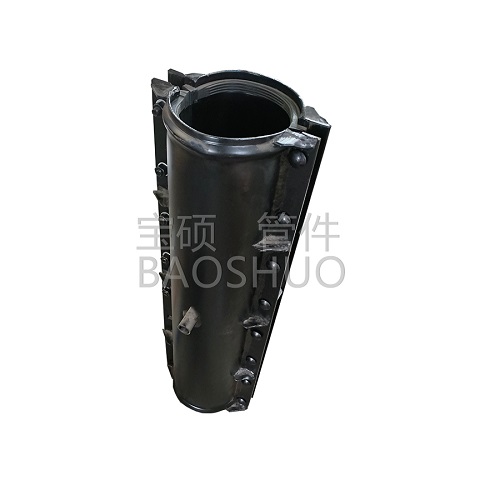

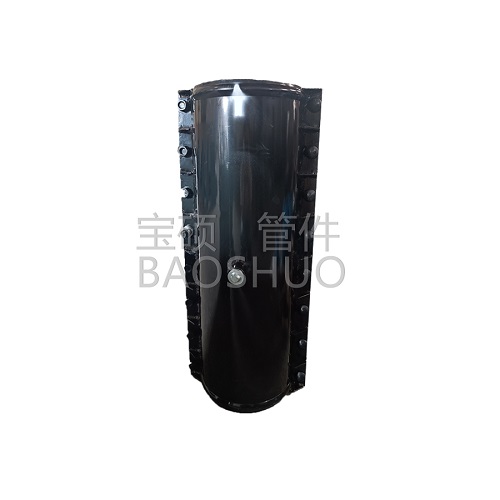

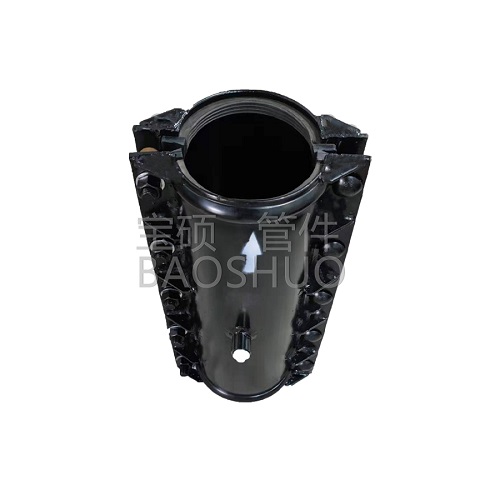

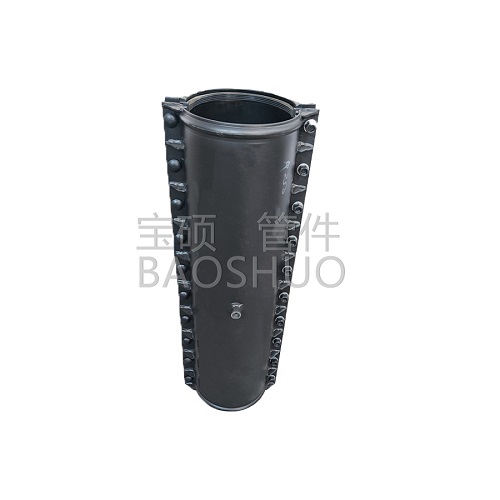

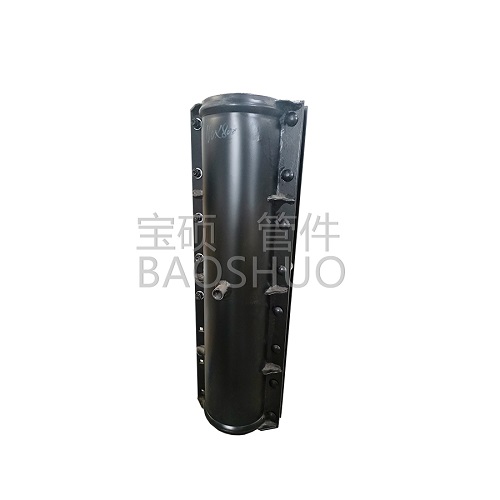

Straight pipe Repair Clamps 2
It is suitable for the repair of straight pipe, steel pipe weld hole,PE, PVC, PPR,PE wire mesh composite pipe and other plastic pipe straight pipe leakage, butt weld water leakage repair, no need to saw pipe, no need to stop water, quick maintenance.
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
Φ50-400mm |
Base material |
Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
Product parameter
|
|
|
1. Scope of application
1. Leakage of Φ50-400 PVC pipe, PE pipe, PPR pipe, PE composite pipe, ABS pipe or other pipes with the same outer diameter;
2. Leakage of PE pipe, PPR pipe, PE steel-plastic composite pipe, ABS pipe and other butt joints;
3. DN15-200 galvanized straight pipe;
4. Repair Clamps can be customized for any standard pipes such as American standard, British standard, Japanese standard, etc.;
5. Repair Clamps of any other outer diameter specifications and any length can be customized.
2. Applicable pipe connection types
Leakage of steel pipe welding seam, leakage of plastic pipe butt joint, emergency repair of PVC joint seam, emergency repair of PE joint seam, emergency repair of PVC joint seam, repair of PE steel-plastic composite pipe joint gap.
3. Performance characteristics
1. The construction is very convenient, no need to stop power and water, just find the leak, hold the pipe with special Repair Clamps for steel pipe, and tighten the nut.
2. It is applicable to a wide range of pipe materials and has a small construction volume, which greatly saves manpower and material resources and ensures that it is leak-proof.
3. It is a green and environmentally friendly repair tool with good pressure-bearing performance, corrosion resistance, erosion resistance, aging resistance, non-toxicity, and no radiation.
