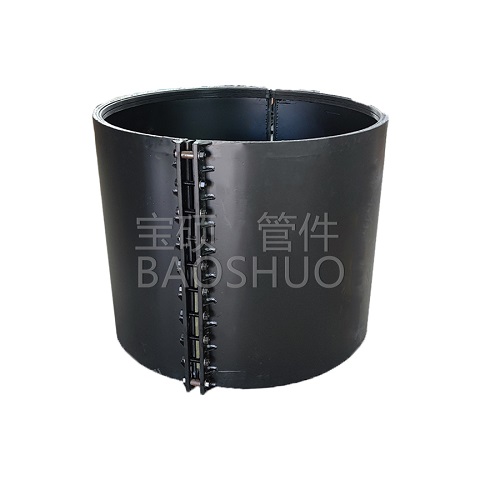

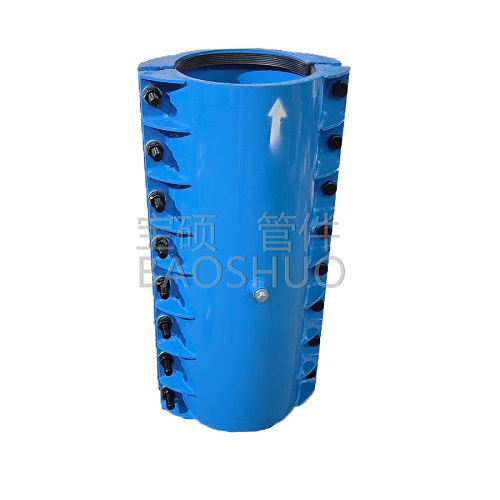

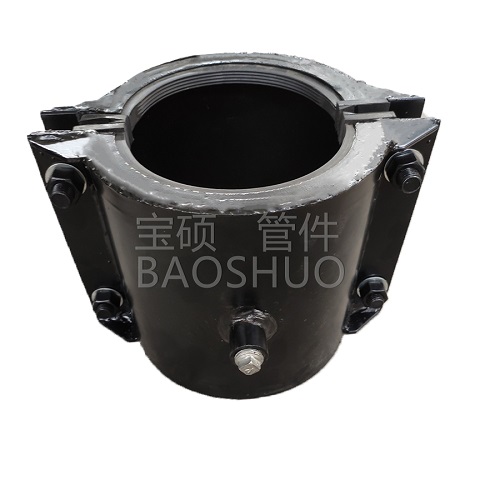

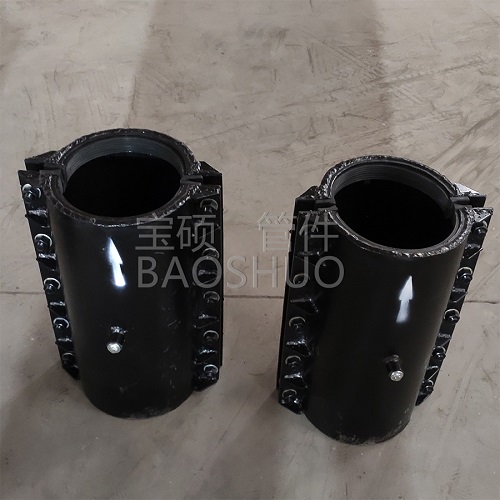

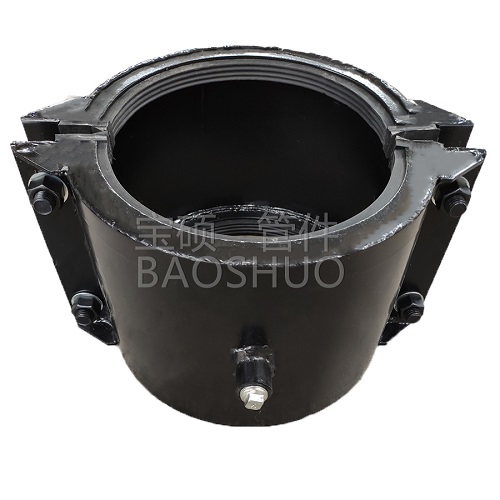

Straight pipe Repair Clamps 3
It is suitable for the repair of straight pipe, steel pipe weld hole,PE, PVC, PPR,PE wire mesh composite pipe and other plastic pipe straight pipe leakage, butt weld water leakage repair, no need to saw pipe, no need to stop water, quick maintenance.
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
DN15-4000 |
Base material |
Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
1. Scope of application
1. Φ50-400 PVC pipe, PE pipe, PPR pipe, PE composite pipe, ABS pipe or other pipes with the same outer diameter leaking;
2. PE pipe, PPR pipe, PE steel-plastic composite pipe, ABS pipe and other butt joints leaking;
3. DN15-200 galvanized straight pipe;
4. DN40-DN2600 ductile iron pipe leaking or other pipes with the same outer diameter leaking;
5. DN50-DN3500 steel pipe leaking or other pipes with the same outer diameter leaking;
6. DN100-DN4000 FRP pipe leaking or other pipes with the same outer diameter leaking;
7. DN100-DN3500 cement pipe leaking or other pipes with the same outer diameter leaking;
8. Repair Clamps can be customized for pipes of any standard such as American standard, British standard, Japanese standard, etc.;
9. Repair Clamps can be customized for any other outer diameter specifications and any length.
2. Applicable pipe connection types
Leakage of steel pipe welding seams, leakage of plastic pipe butt joints, emergency repair of PVC joints, emergency repair of PE joints, emergency repair of PVC joints, repair of PE steel-plastic composite pipe joint gaps, ductile iron pipes, crack repair of glass fiber reinforced plastic pipes, and crack repair of cement pipes.
3. Performance characteristics
1. The construction is very convenient, no power outage or water outage is required, just find the leak, hold the pipe with special Repair Clamps for steel pipes, and tighten the nuts.
2. The applicable pipe material range is wide, the construction volume is small, and manpower and material resources are greatly saved, so as to ensure that there is no leakage.
3. Green and environmentally friendly emergency repair equipment with good pressure bearing performance, corrosion resistance, erosion resistance, aging resistance, non-toxicity, and no radiation.
Field drawing
