Increase the pipe mouth, work under high water pressure environment, civil water can not be stopped,Body carbon steel material, surface anti-oxidation spray treatment,Working pressure up to 1.6Mpa(16 bar).
With Positive Stop for PVC PE GRP AC Pipe，Inner Thread Increased Interface Pipe Fitting Increased Interface Pipe Fitting，Plastic pipe for PE pipe. PVC pipe.PPR pipe. ABS tube Nylon tube. PE steel-plastic composite pipe can be customized glass steel pipe, steel pipe, cast iron pipe, cement pipe, etc., for pipe water distribution, increase the interface,with Screwed Branch

Scope of application

1. Medium 20-Medium 1600UPVC pipe, PVC-M pipe, PE pipe, PPR pipe, PE wire mesh composite pipe, ABS pipe and other plastic pipes with outer diameters.
2. Branch pipes require internal threads or external threads.
Performance characteristics
1. Used in conjunction with a drilling machine, it replaces the reserved threaded tee and four-way grafted branch pipes. It does not need to be welded on the main pipe during installation. It has the advantages of simple and fast installation, accurate and arbitrary position determination;
2. High pressure level and high strength!!!

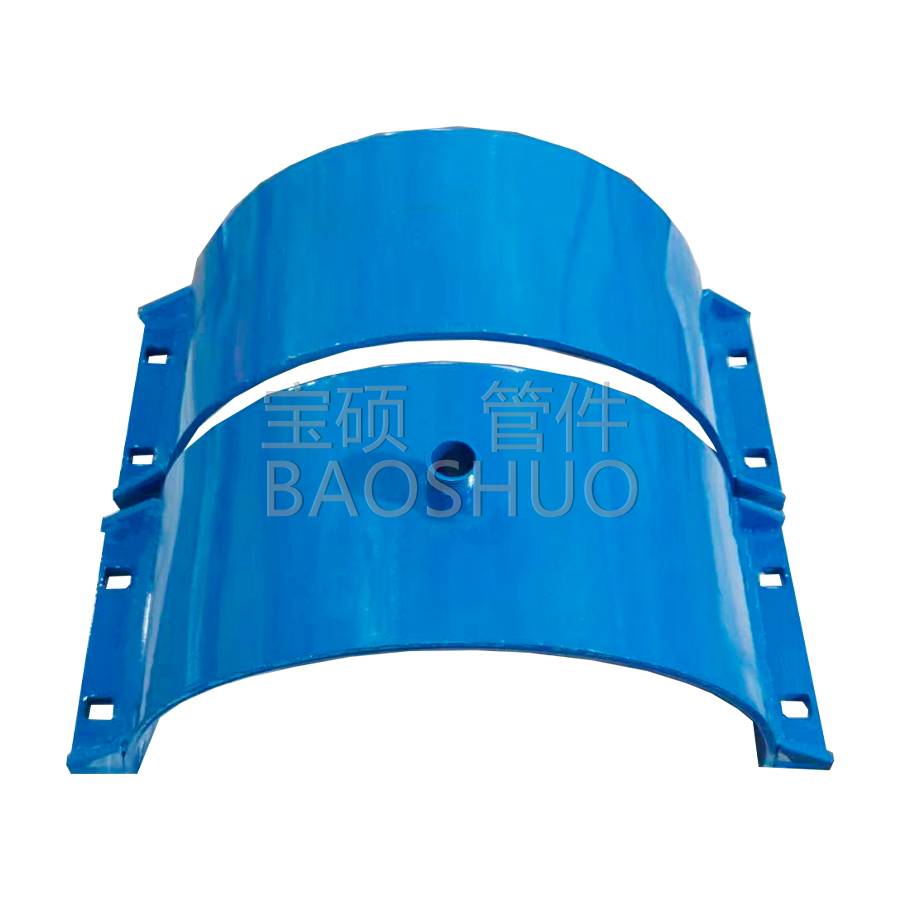

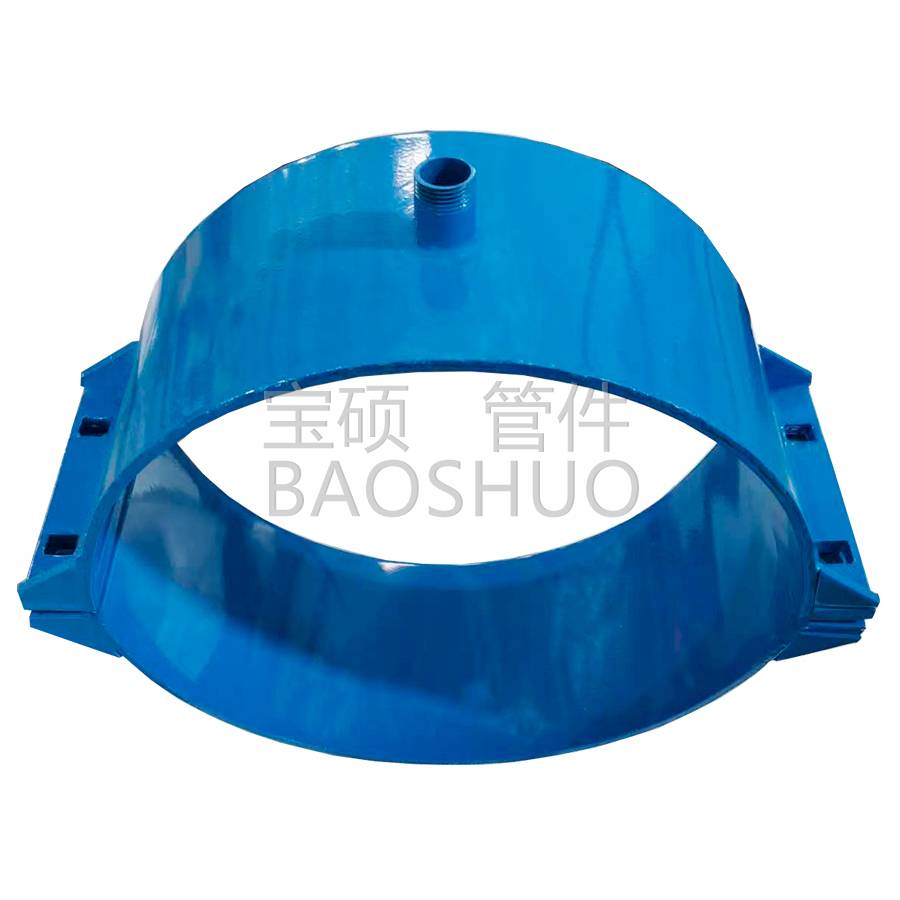

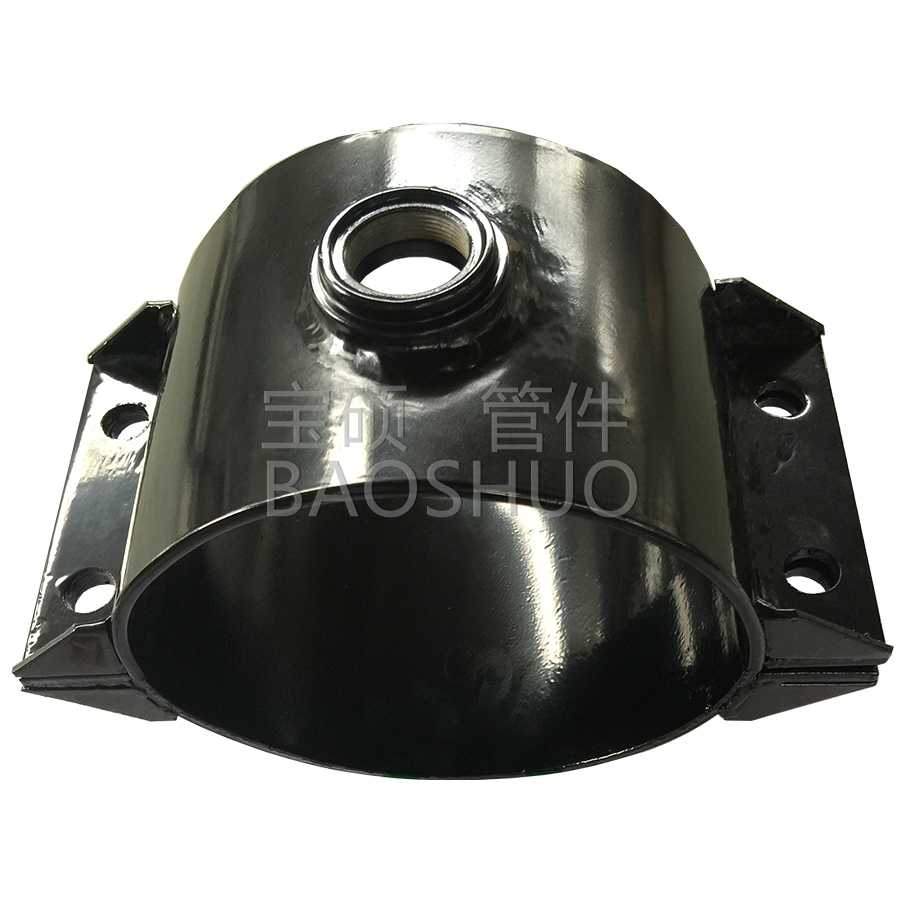

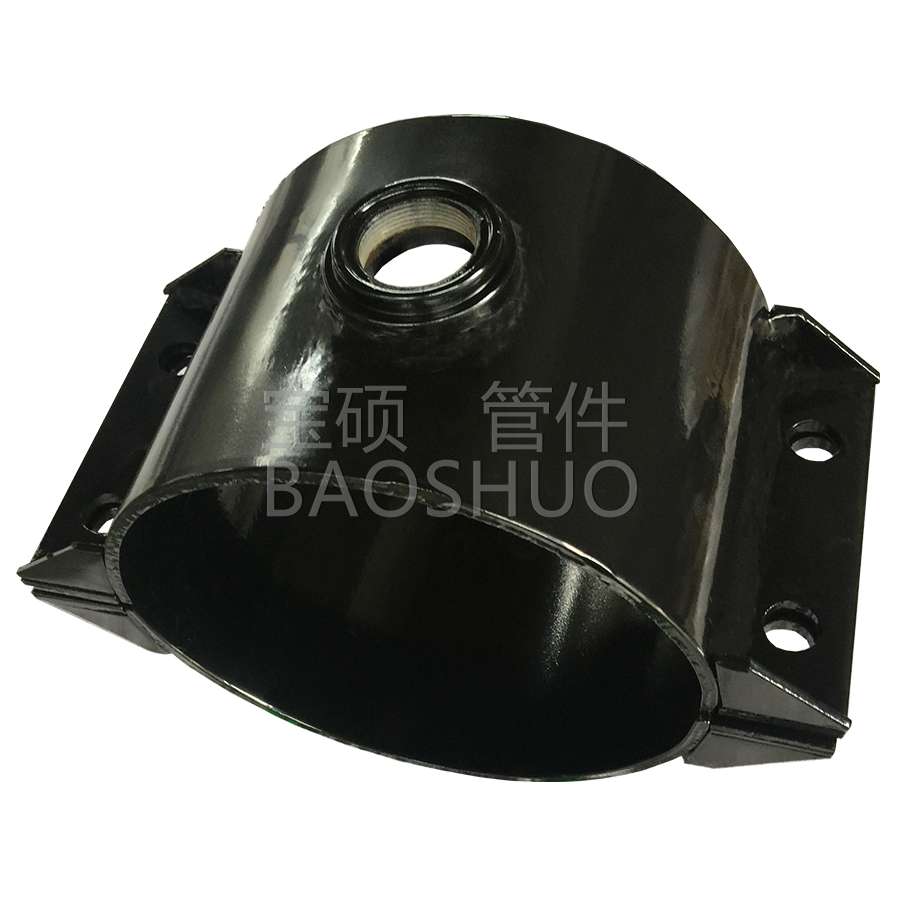

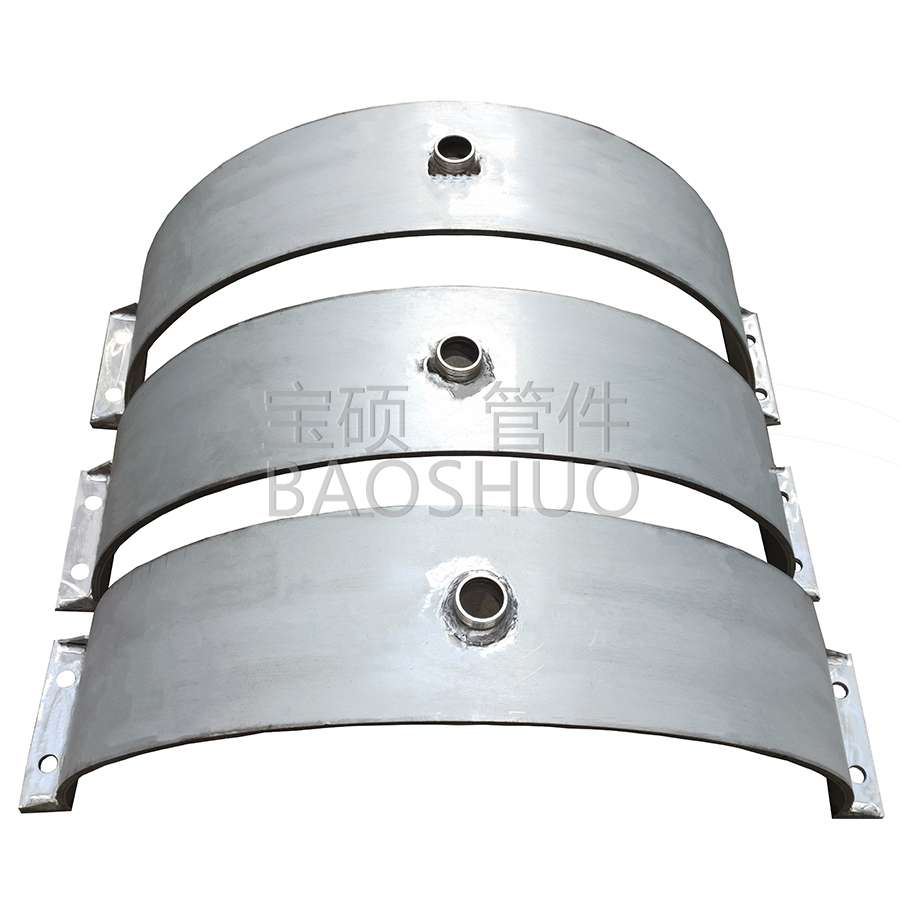

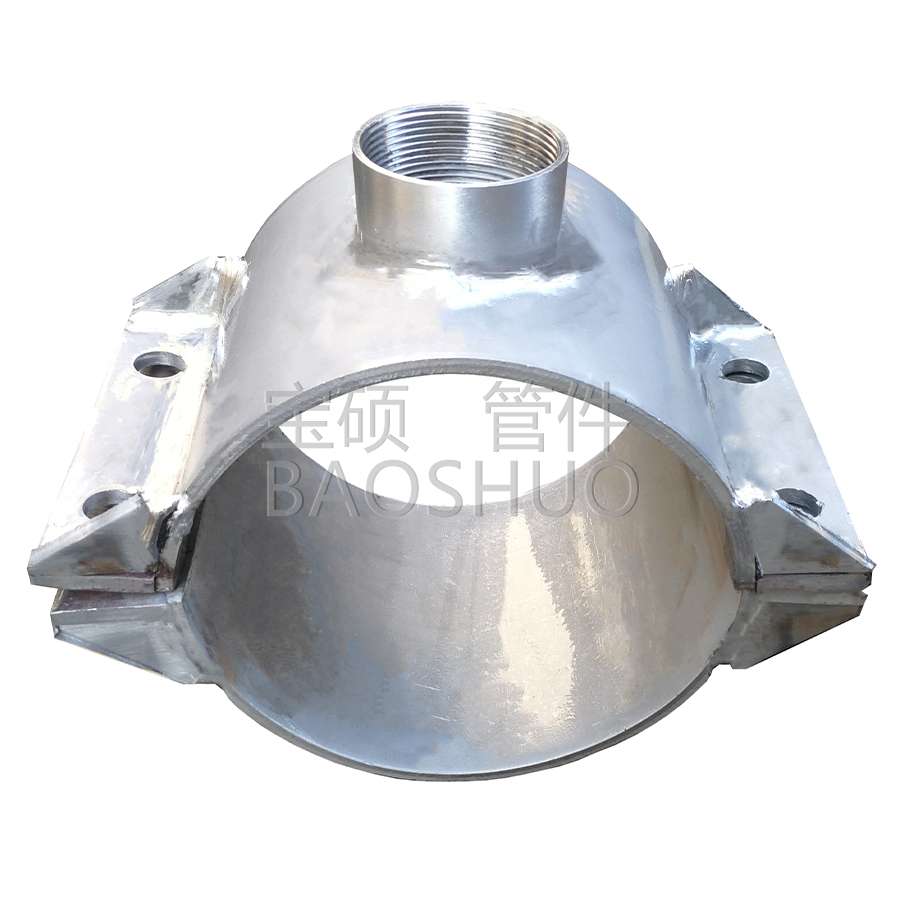

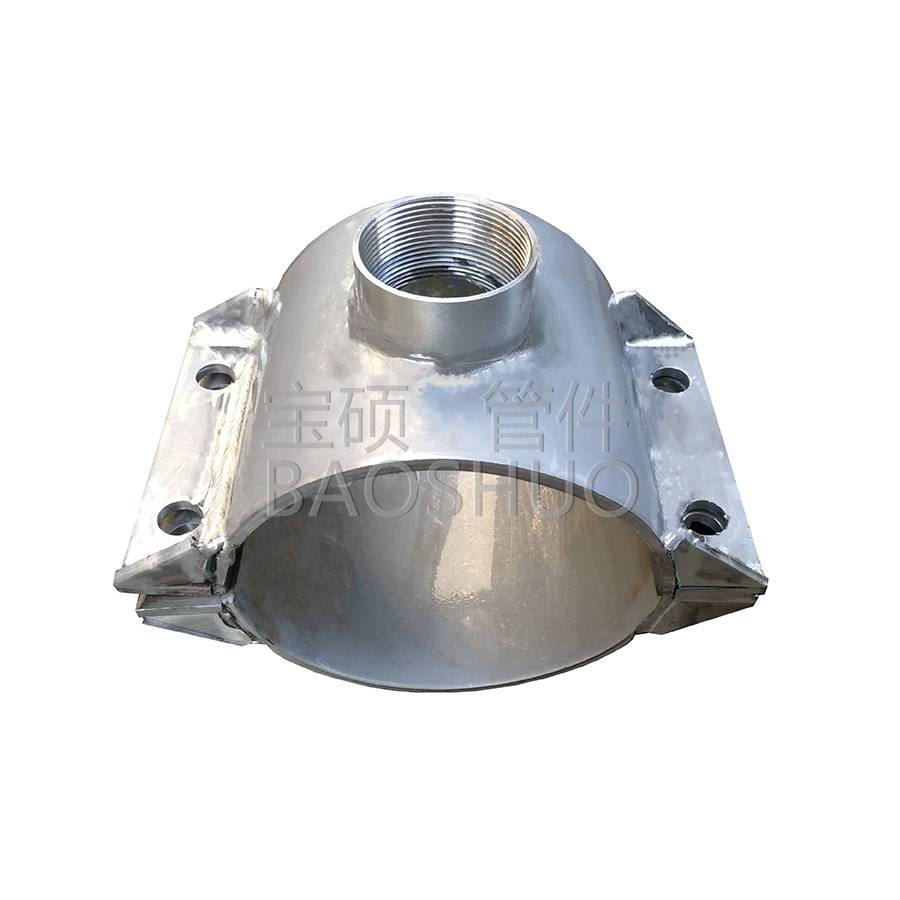

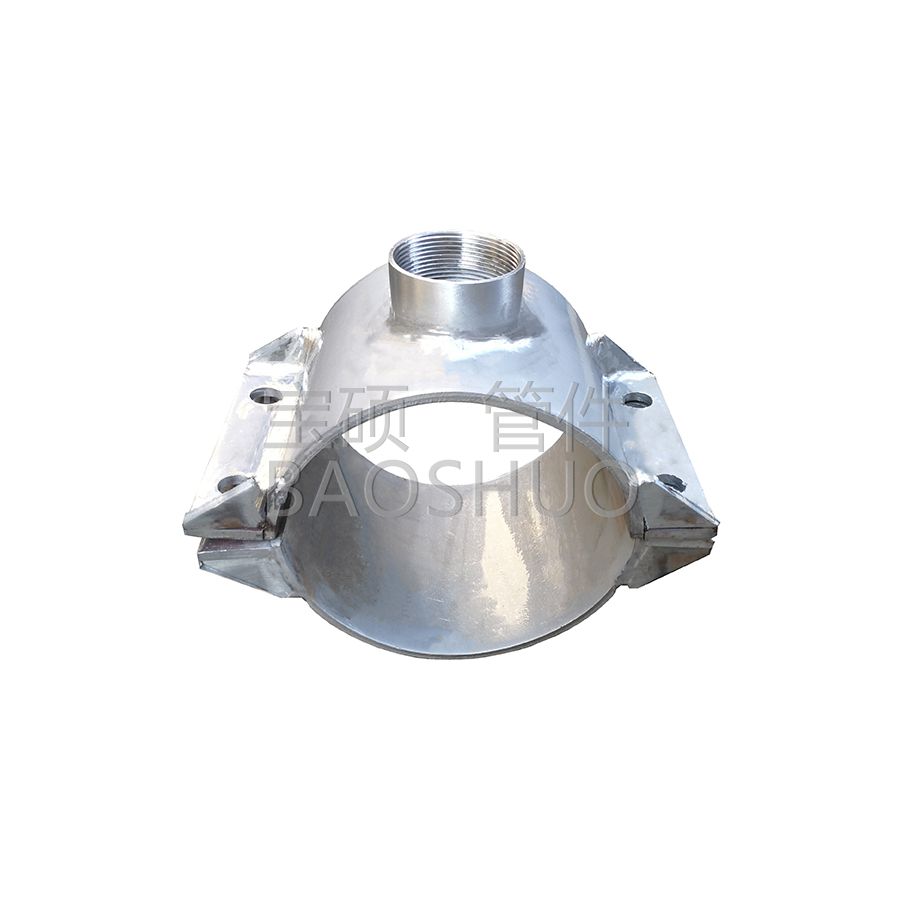

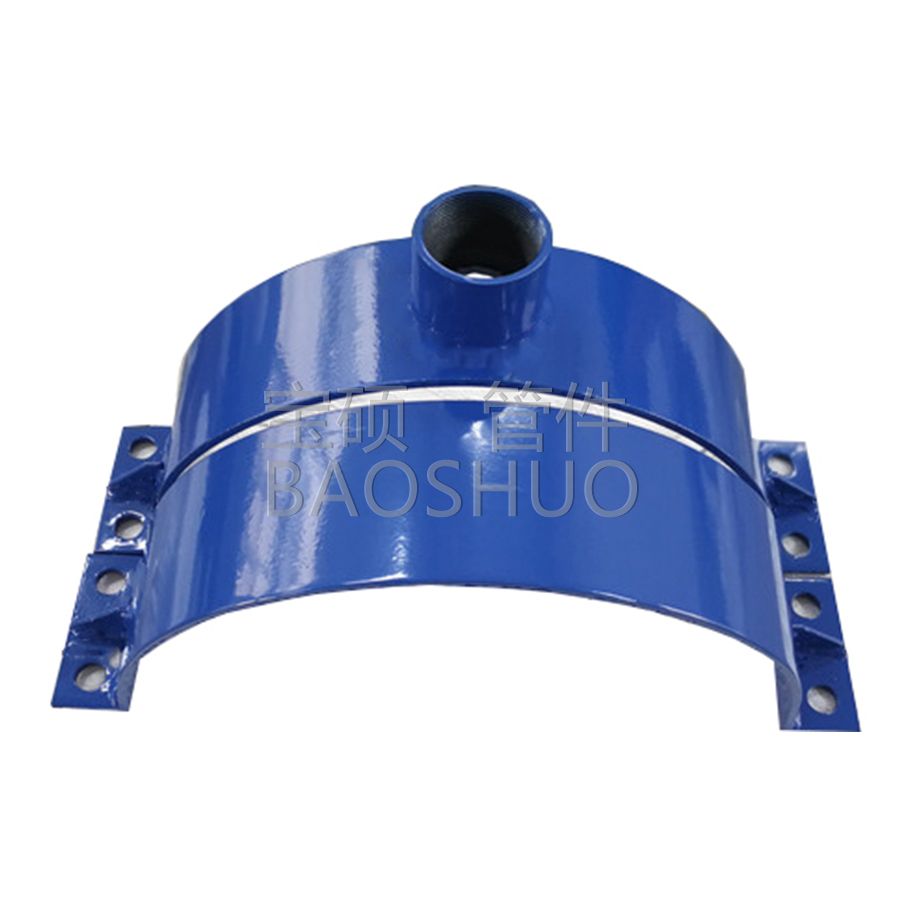

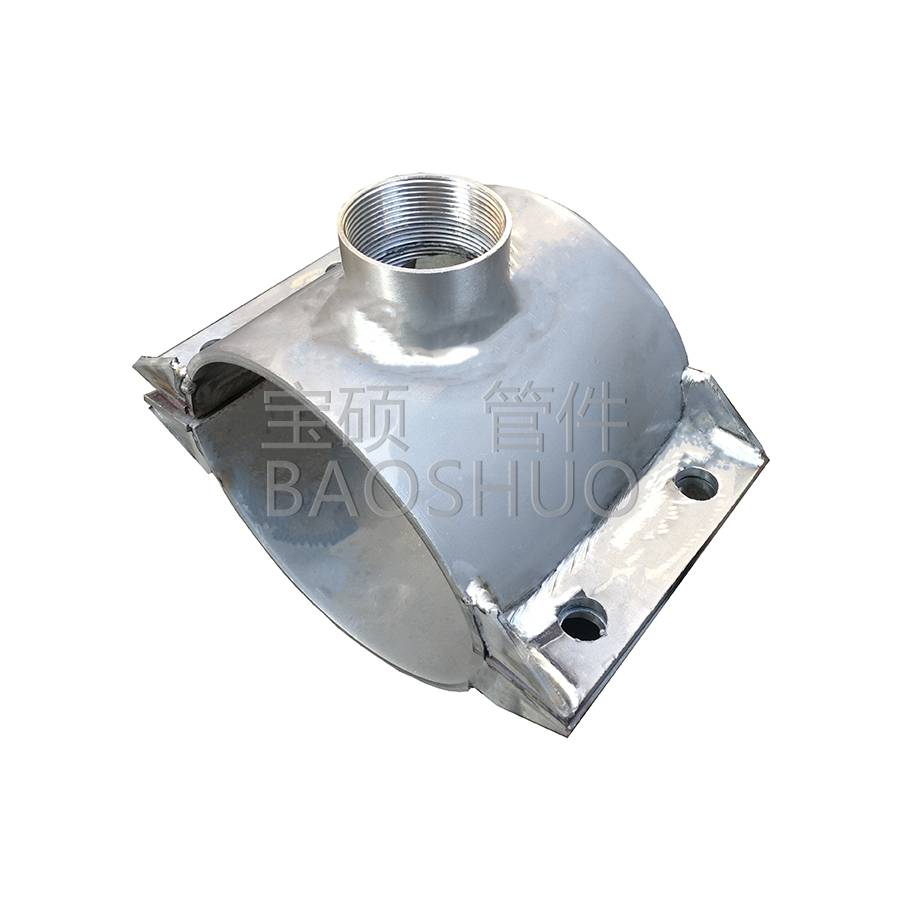

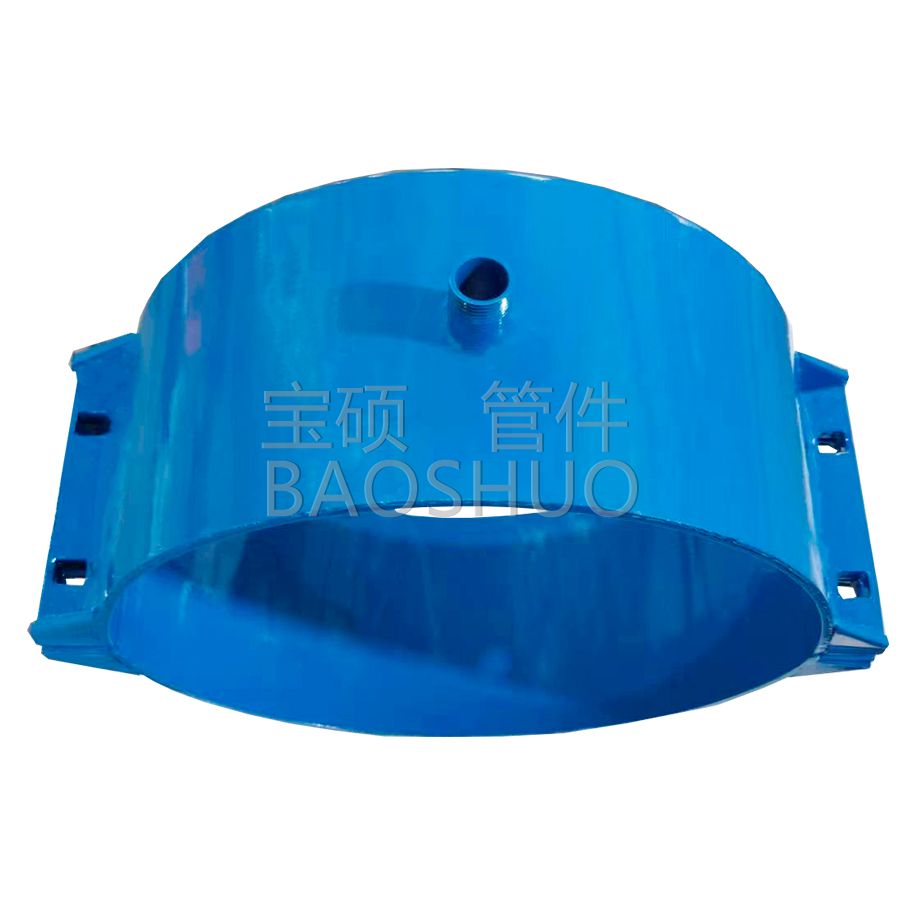

Saddle Clamp with Threaded Outlet-refers to the saddle tee pipe clamp or saddle branch joint. This is a method of opening a hole in the main pipe and connecting the branch pipe.

Introduction to Saddle Clamp with Threaded Outlet

1. Saddle-type openings are usually made by directly opening a hole in the main pipe at the construction site and installing branch pipe connectors.

Applicable to situations where branches need to be installed on existing running pipes, or where prefabricated tees cannot be used due to space and cost constraints.

2. Cut a hole on the main pipe that matches or is slightly larger than the inner diameter of the branch pipe. The end of the branch pipe is processed into a saddle-shaped curved surface that matches the curvature of the outer wall of the main pipe so that it fits tightly on the main pipe. The saddle-shaped branch pipe connector is fixed to the main pipe opening by threading.

3. Installation flexibility and economy:

Applicable to modification and maintenance: It is the most common method to add branches to in-service pipelines. There is no need to cut off the main pipe or replace a large section of the pipe. There is no need to weld the saddle tee to the main pipe. The construction is relatively convenient and has little impact on the operation of the system. It can be constructed with water and pressure.

Applicable to large-diameter main pipes: For large-diameter main pipes, prefabrication or procurement of large-diameter tees is costly and difficult to transport and install. Saddle-type openings are a more economical and practical choice.

Space limitations: It is more advantageous in places where space is narrow and prefabricated tees are difficult to install.
