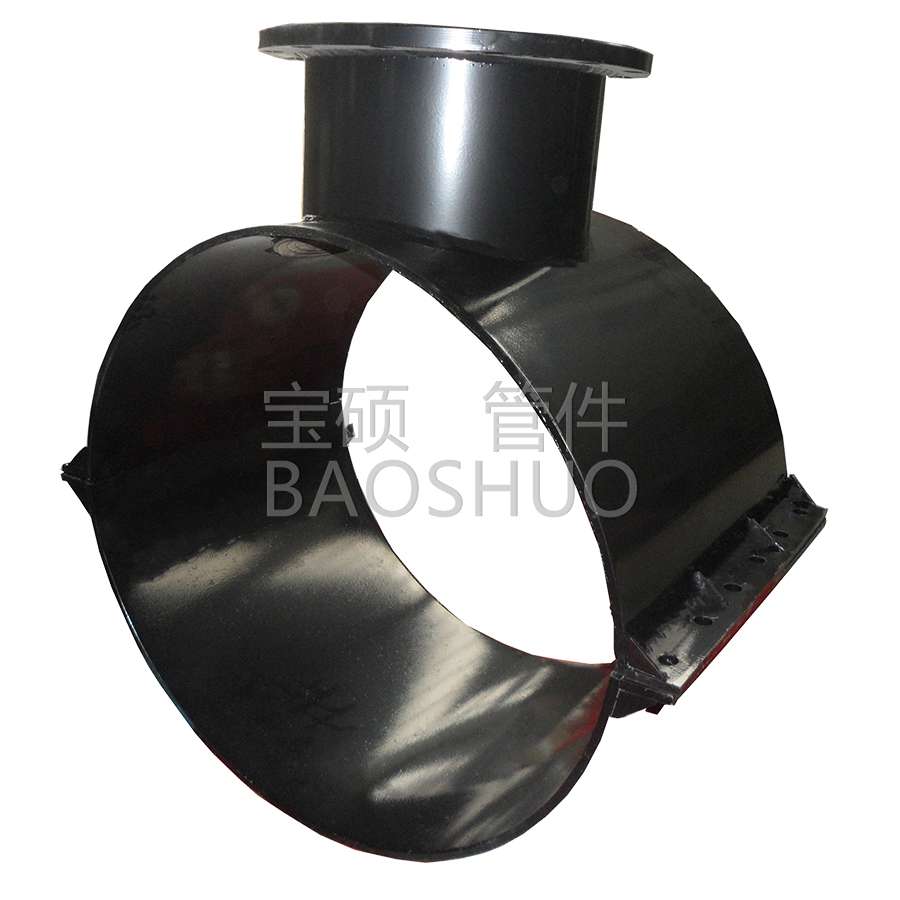

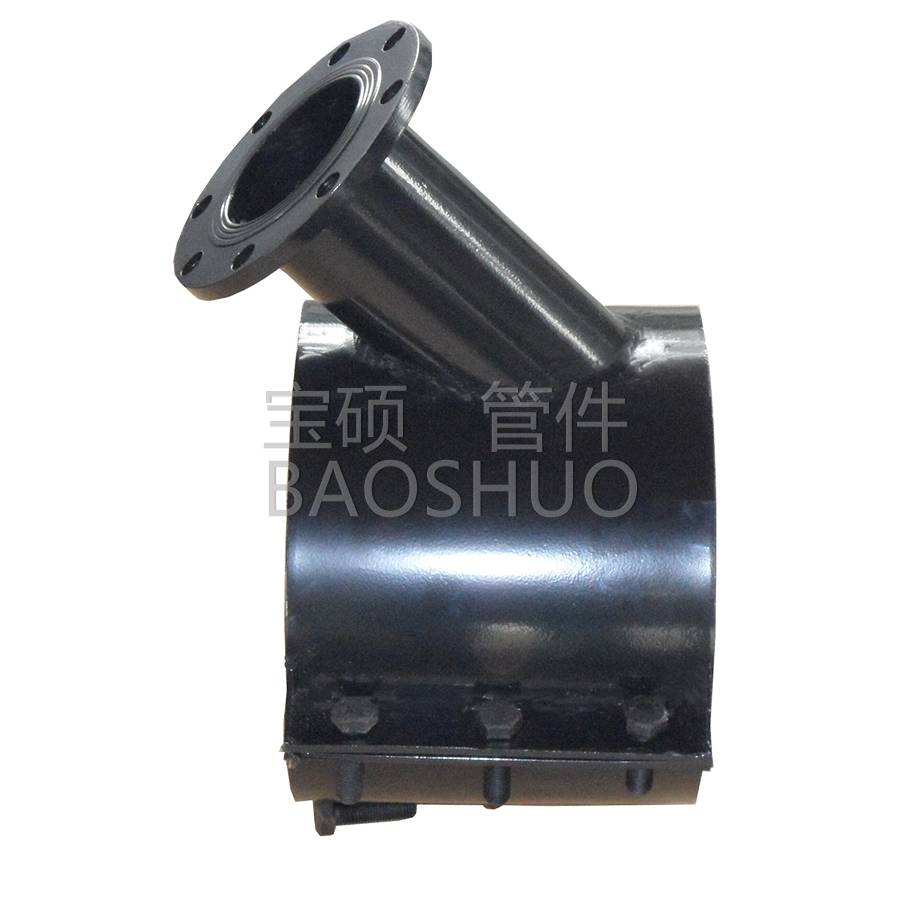

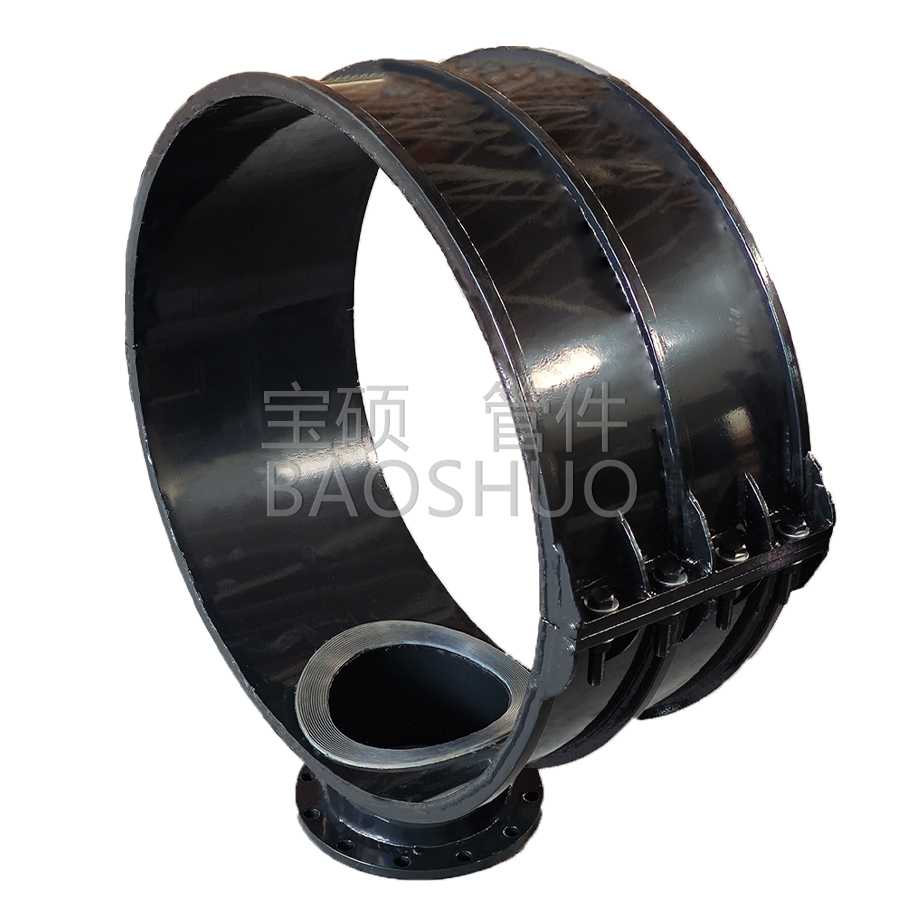

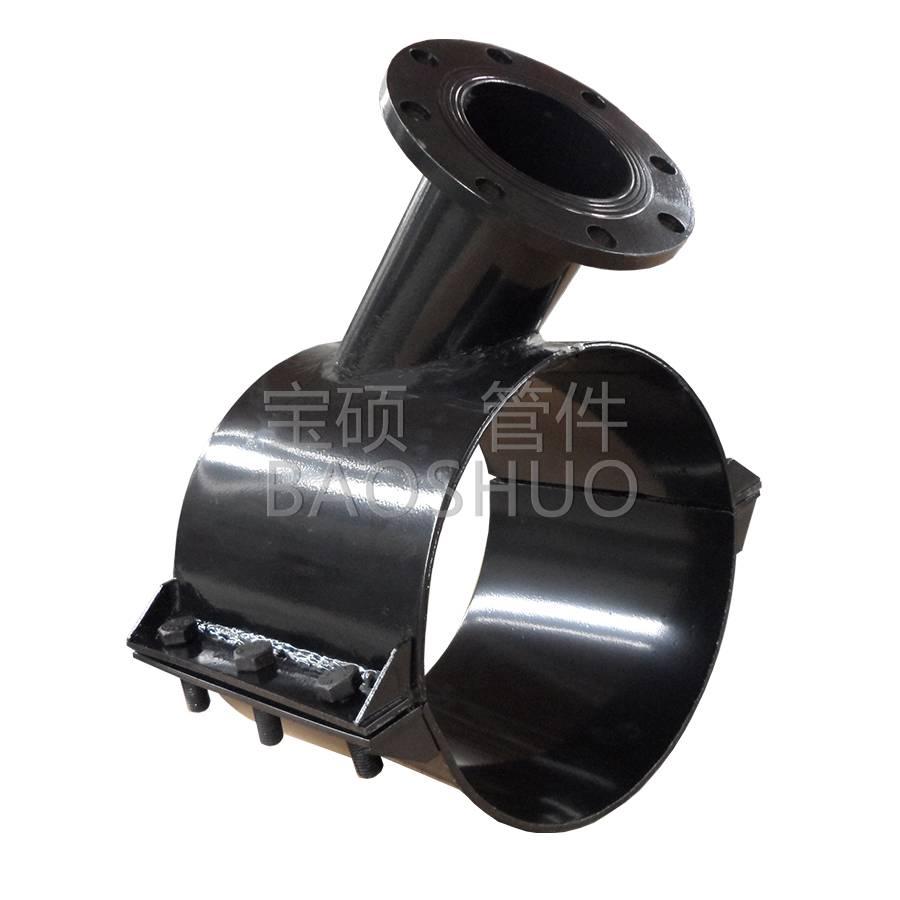

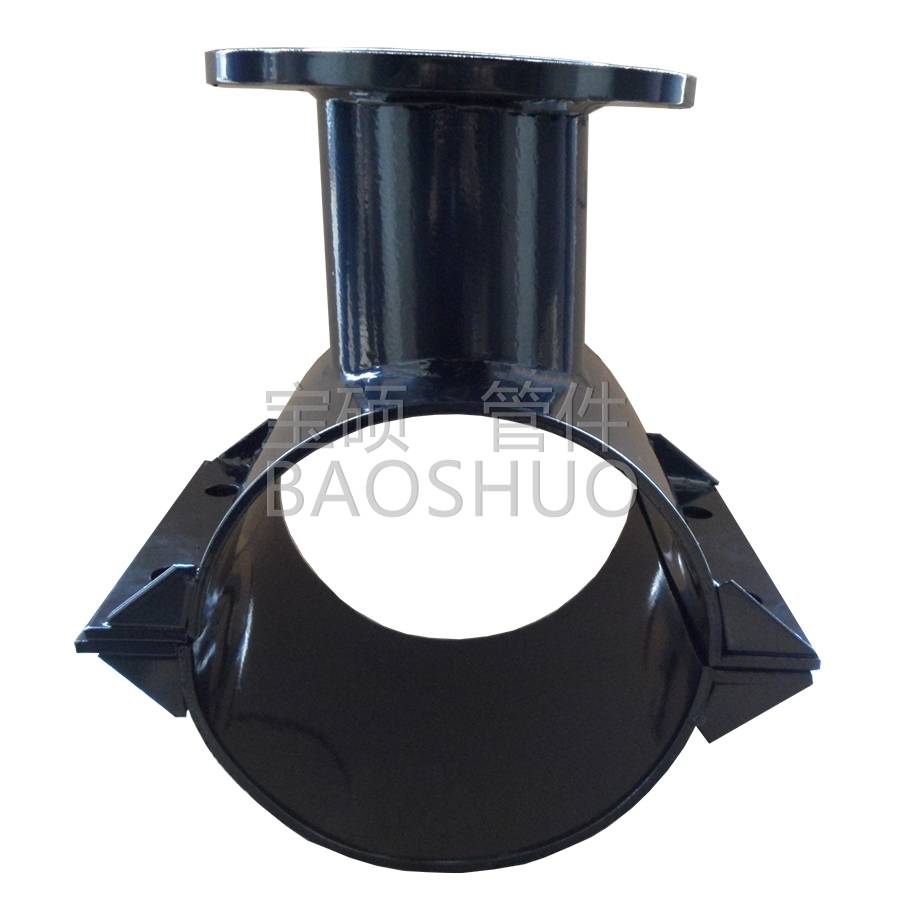

Saddle Clamp with Flange Outlet
Suitable for pipe water distribution, increase the interface ,Flange Outlet,cambered surface adaptor saddle clamp,
Water distribution saddle, PE saddle type additional interface, flange connection PE saddle tee, saddle type flange opening tee, flange opening tee, pipeline flange opening, flange connection PE additional interface, PE pipe opening connection tee, PVC pipe opening connection tee, PE water supply pipe opening connection branch pipe, PVC pipe flange half tee, PE pipe flange opening tee, PVC pipe saddle tee pipe clamp, PE pipe saddle tee pipe clamp,
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
DN15-DN4000 |
Base material |

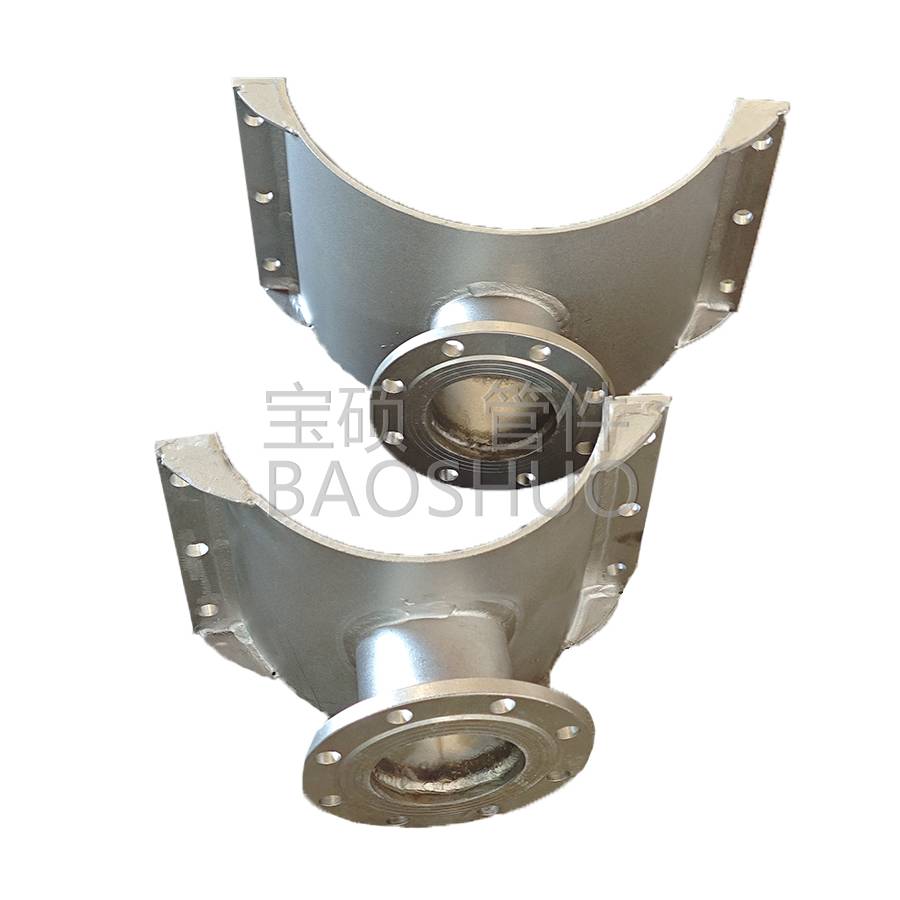

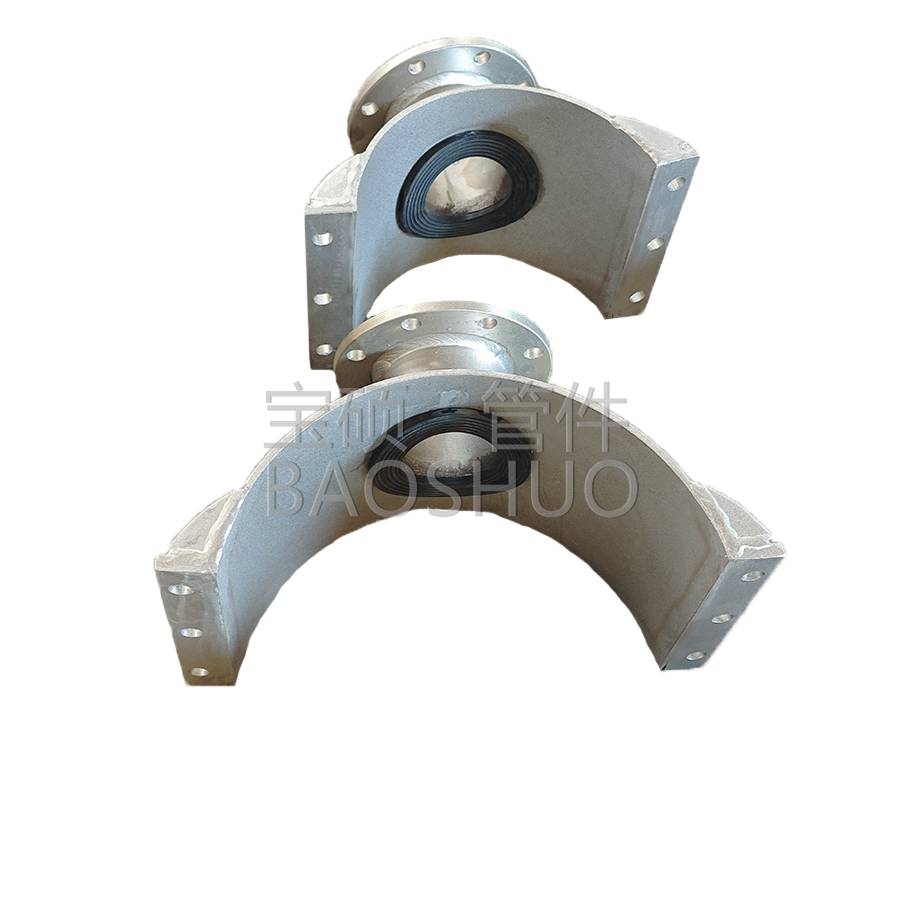

Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|

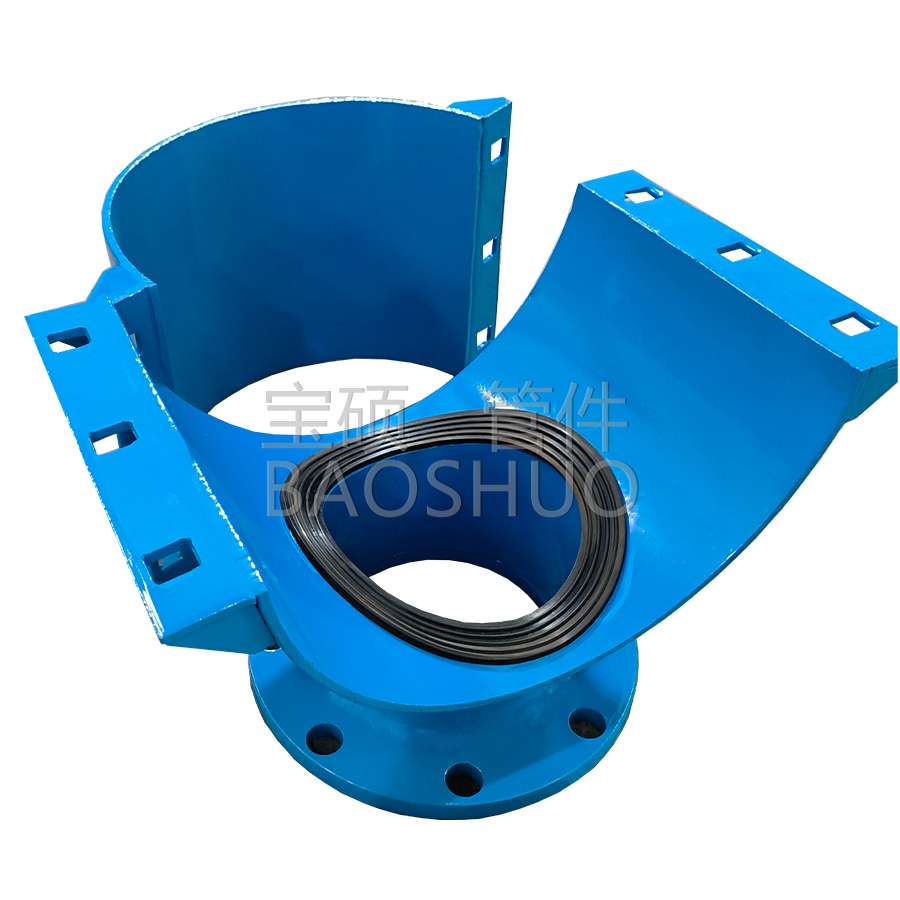

Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
Material: Q235B steel plastic material, natural rubber, nitrile rubber or EPDM rubber (can also be customized stainless steel and other rubber)
Scope of application
UPVC pipes of medium 20-medium 1600, PVC-M pipes, PE pipes, PPR pipes, PE wire mesh composite pipes, ABS pipes and other plastic pipes with outer diameters
Performance characteristics
1. Used in conjunction with a drilling machine, it replaces the reserved flange tee and flange four-way grafting branch pipes. There is no need to weld the tee on the main pipe. It has the advantages of simple and fast installation and accurate position determination
2. Socket saddle tee can be customized
3. High pressure level and high strength!!!
Saddle Clamp with Flange Outlet-refers to saddle tee or saddle branch joint. This is a method of opening a hole in the main pipe and connecting the branch pipe.
Introduction to Saddle Clamp with Flange Outlet
1. Saddle-type openings are usually made directly on the main pipe at the construction site and the branch pipe connector is installed.
Applicable to situations where branches need to be added to existing running pipelines, or where prefabricated tees cannot be used due to space or cost constraints.
2. Cut a hole on the main pipeline that matches or is slightly larger than the inner diameter of the branch pipe. The end of the branch pipe is processed into a saddle-shaped curved surface that matches the curvature of the outer wall of the main pipe so that it fits tightly on the main pipe. The saddle-shaped branch pipe connector is fixed to the main pipe opening by threads.
3. Installation flexibility and economy:
Applicable to renovation and maintenance: It is the most common method to add branches to in-service pipelines. There is no need to cut off the main pipe or replace a large section of the pipe. There is no need to weld the saddle tee to the main pipe. The construction is relatively convenient, with little impact on the operation of the system, and it can be constructed with water and pressure.
Applicable to large-diameter main pipes: For large-diameter main pipes, prefabrication or procurement of large-diameter tees is costly and difficult to transport and install. Saddle-type openings are a more economical and practical choice.
Space limitations: It has more advantages in situations where space is narrow and prefabricated tees are difficult to install.
