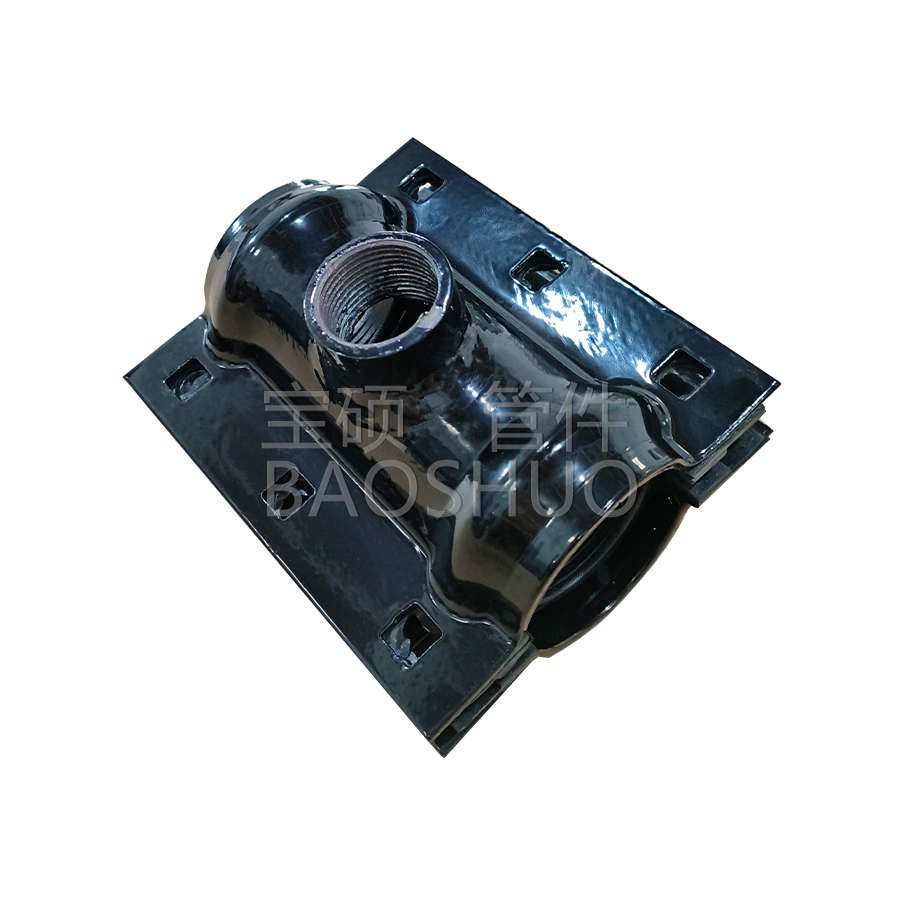

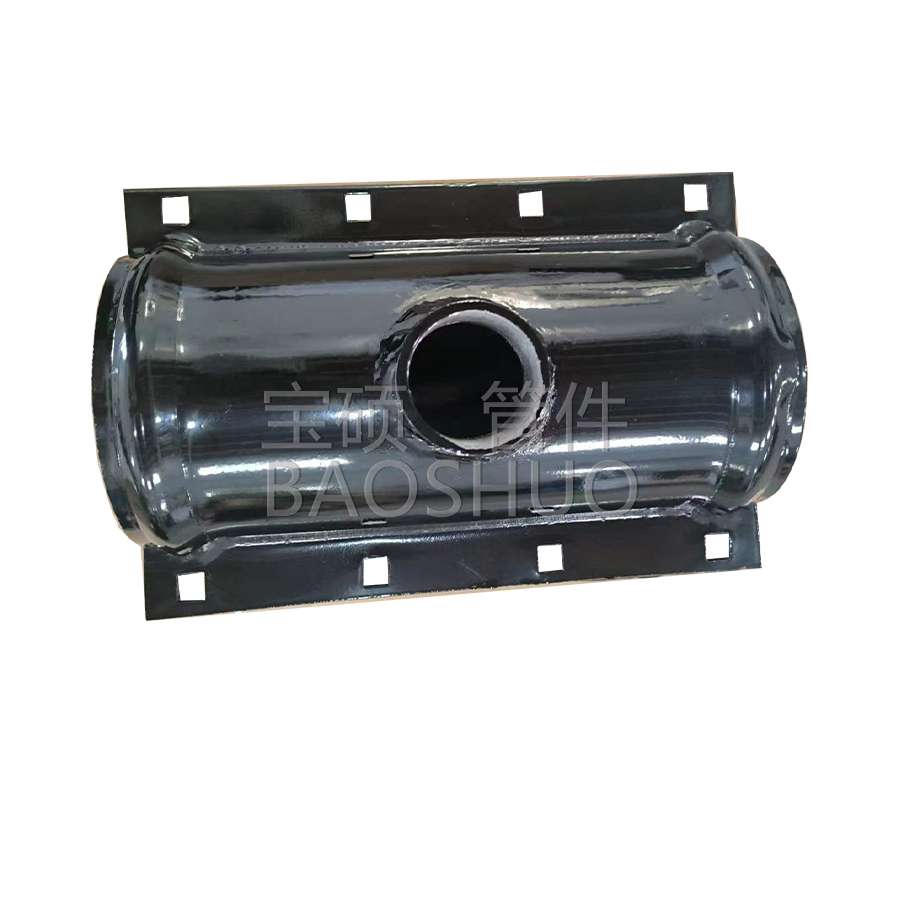

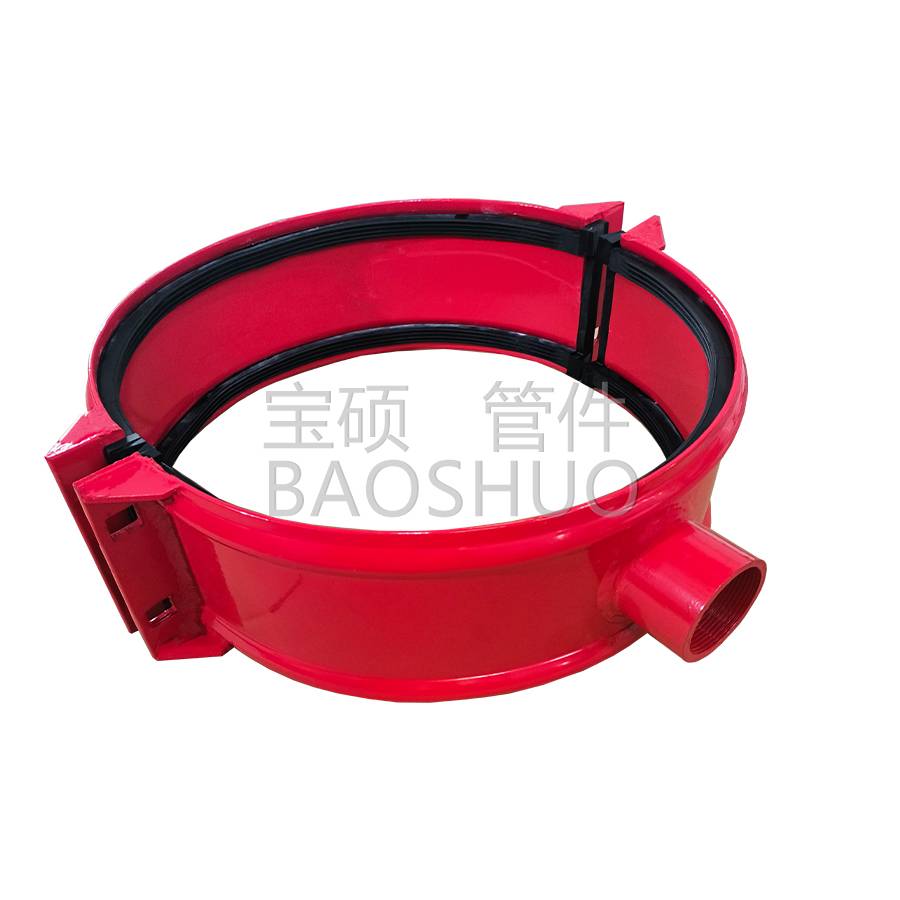

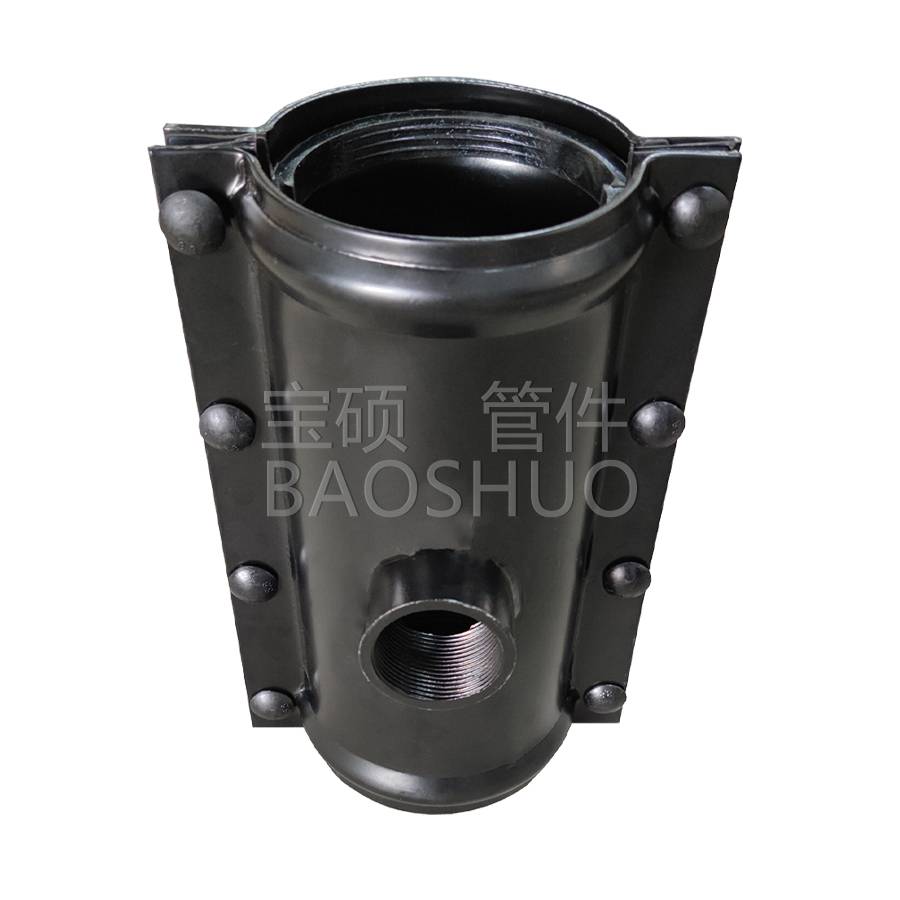

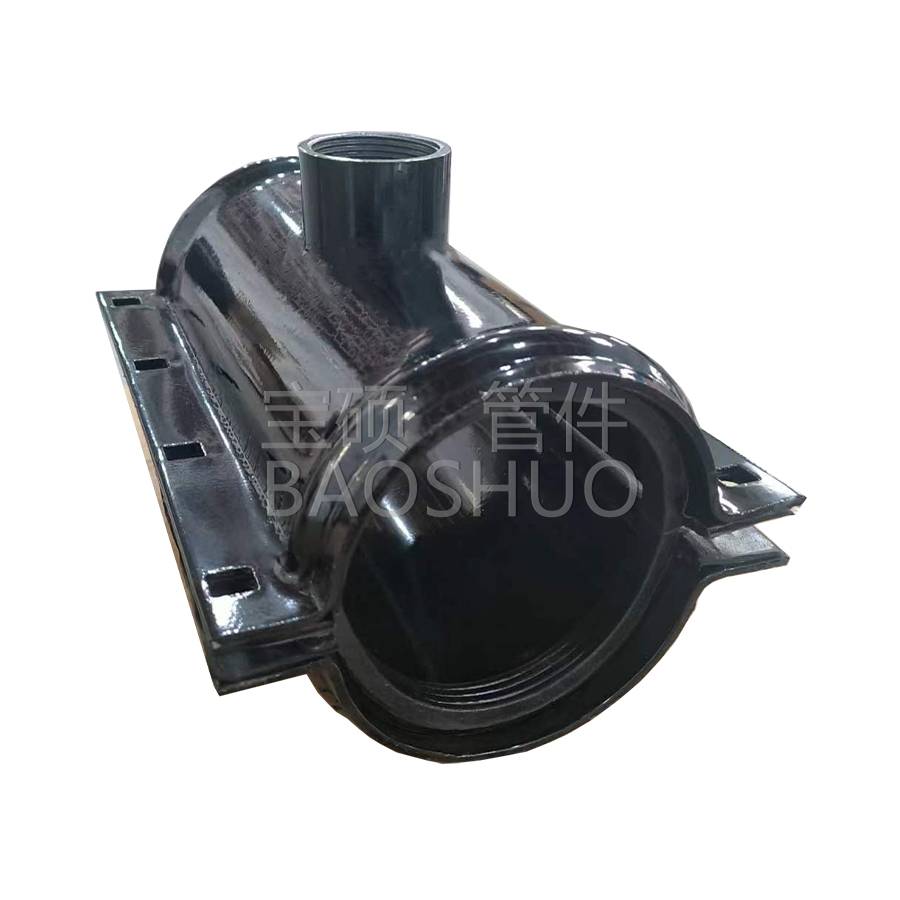

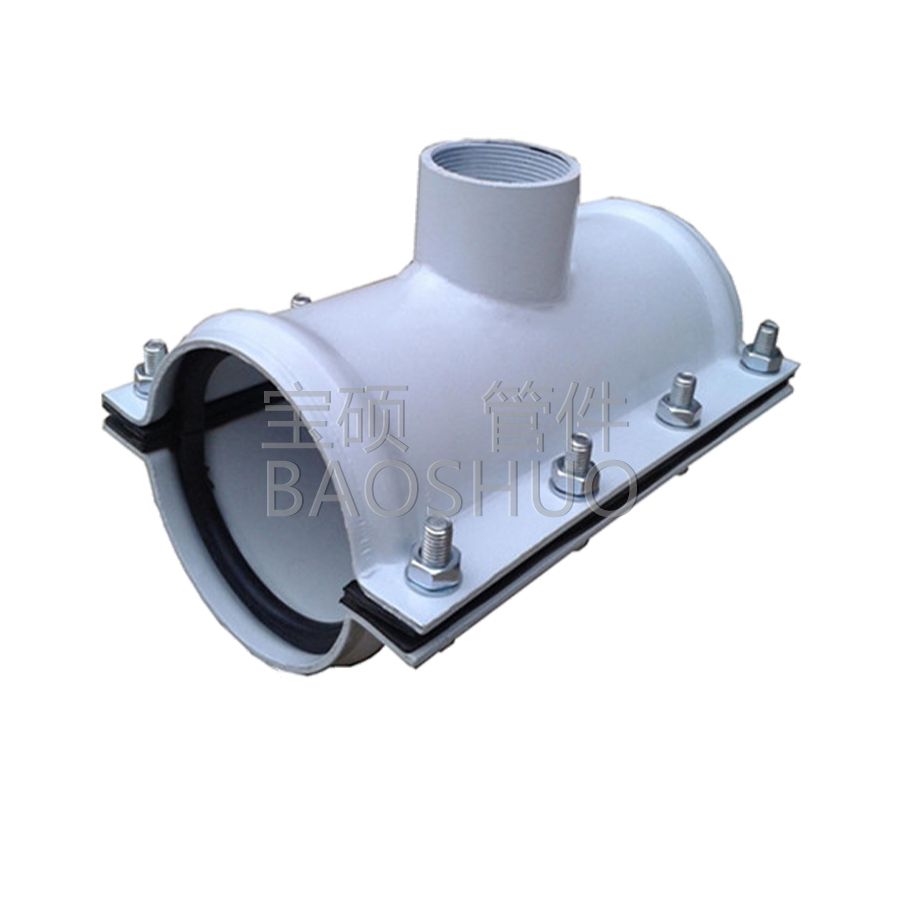

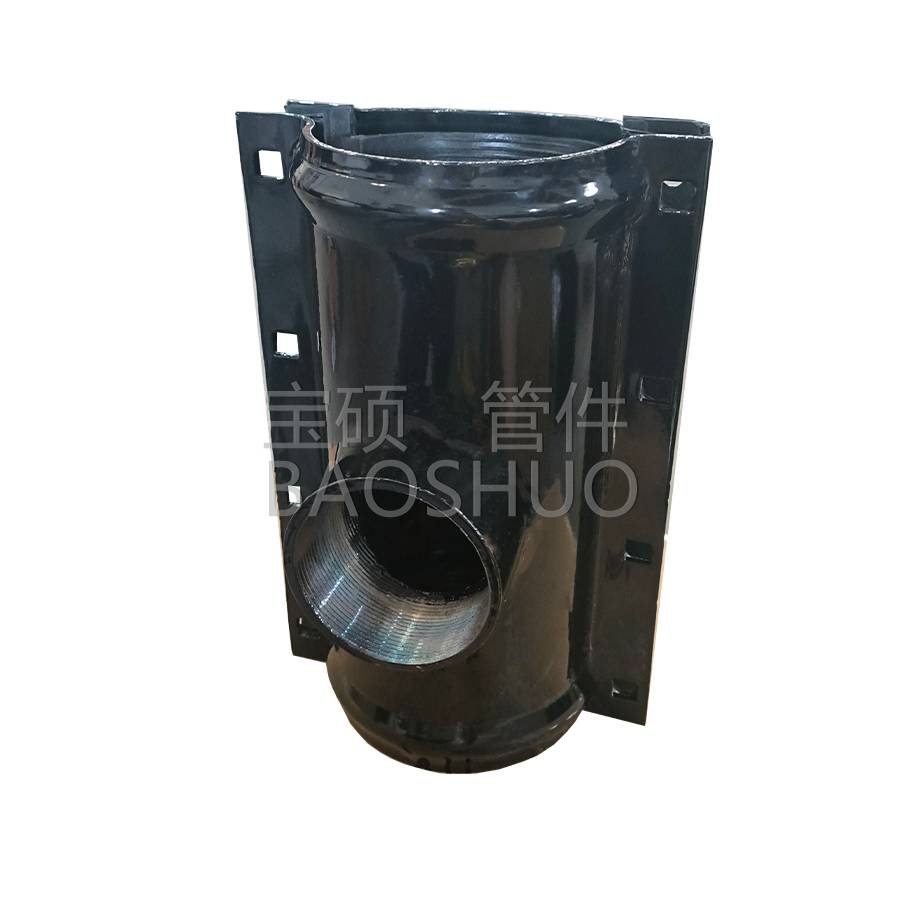

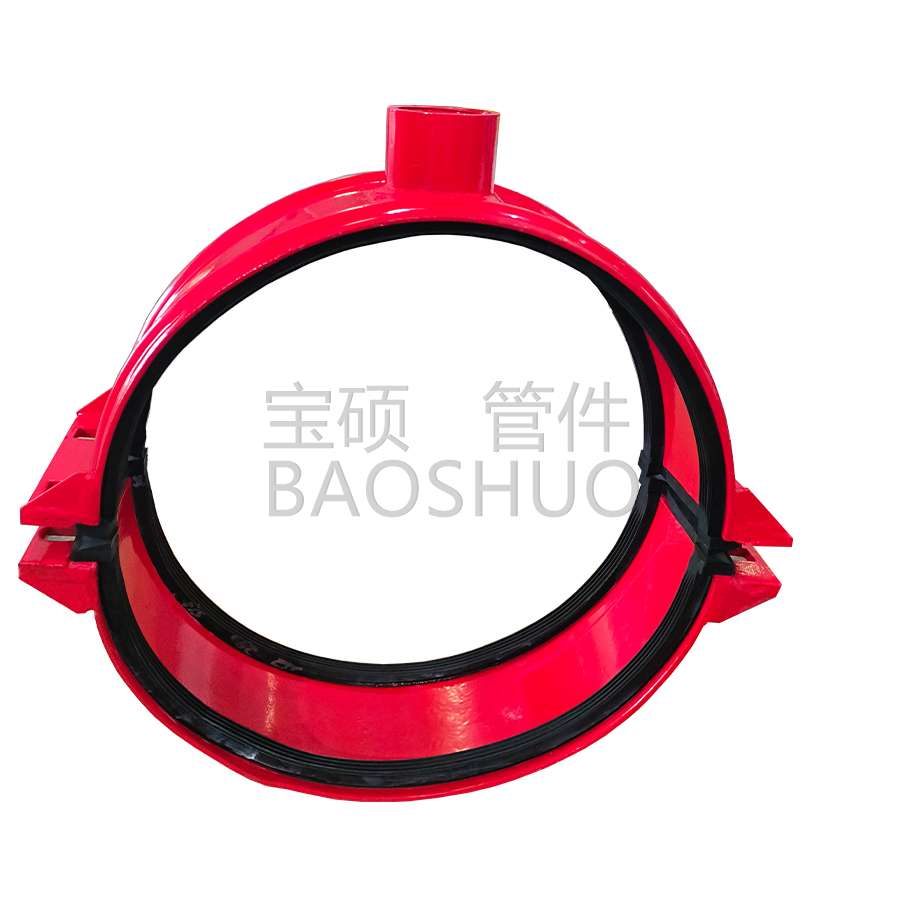

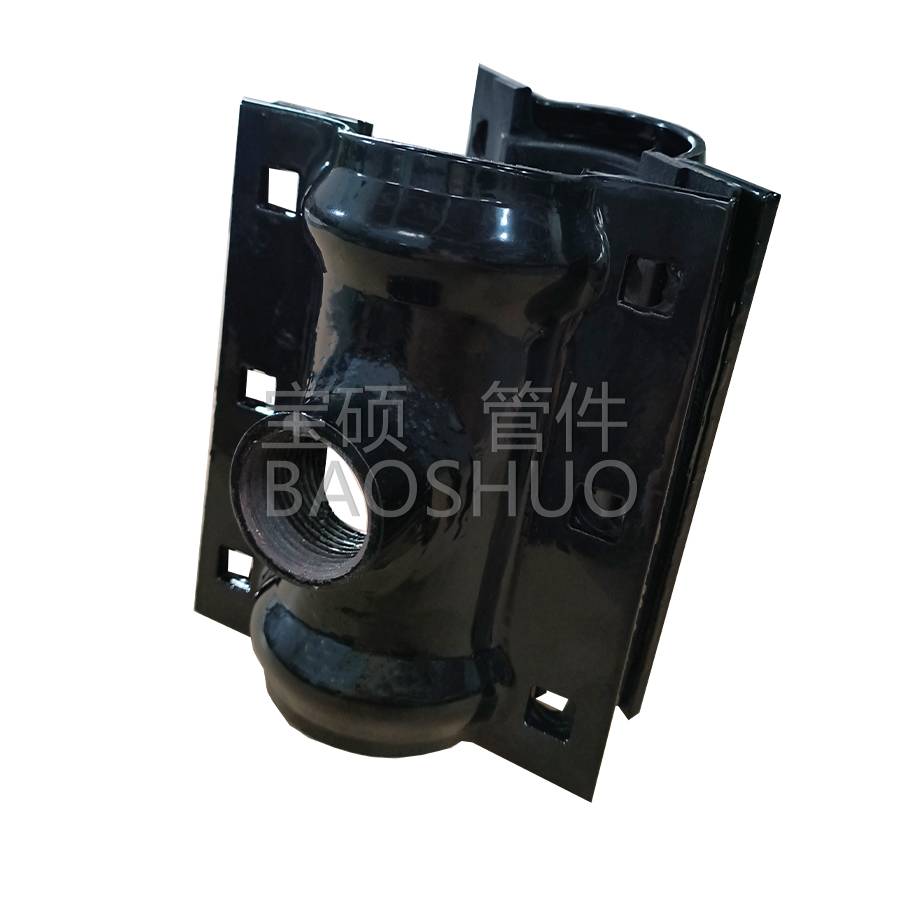

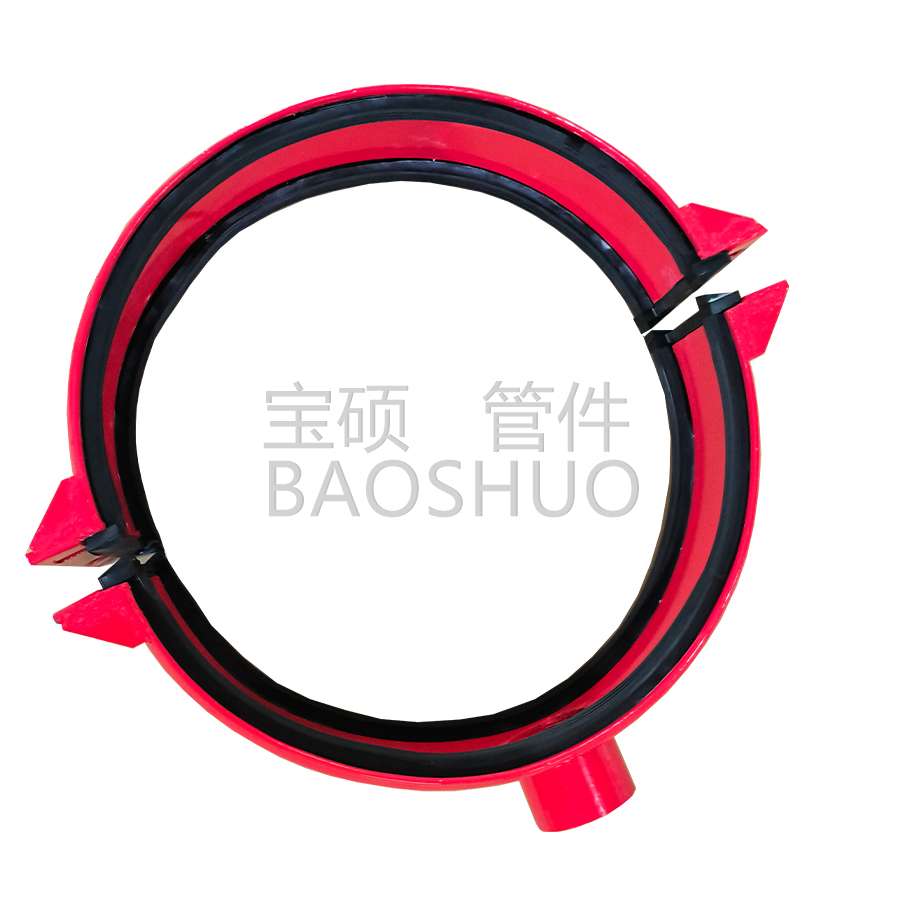

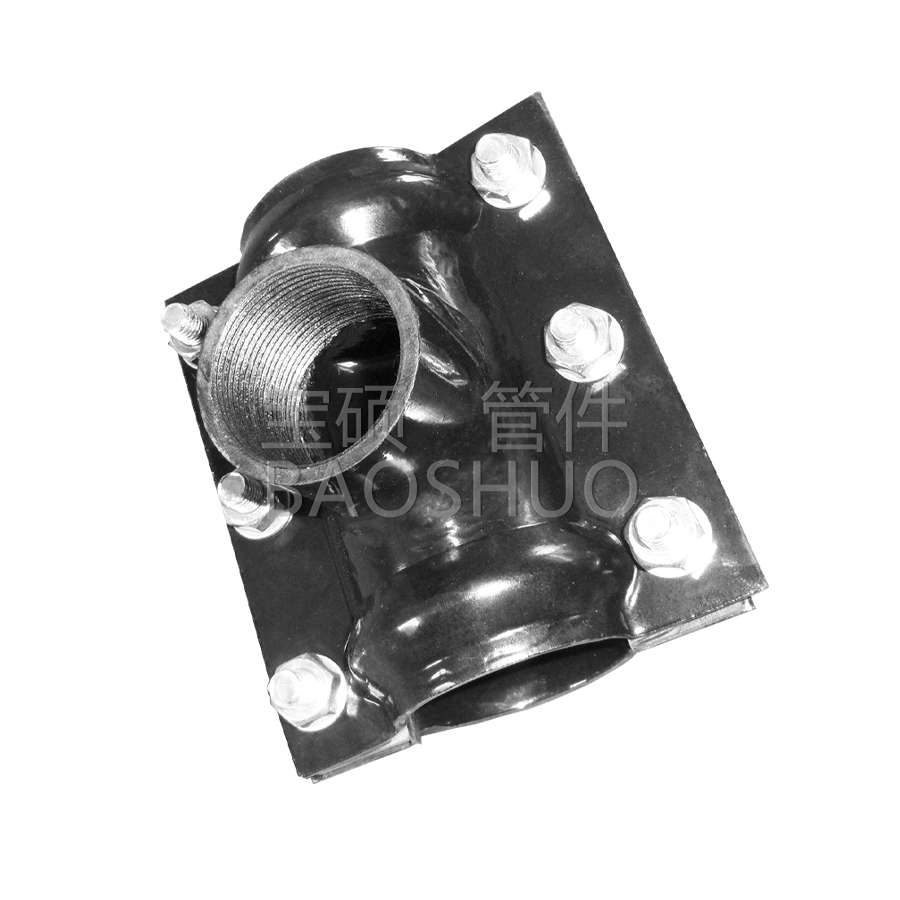

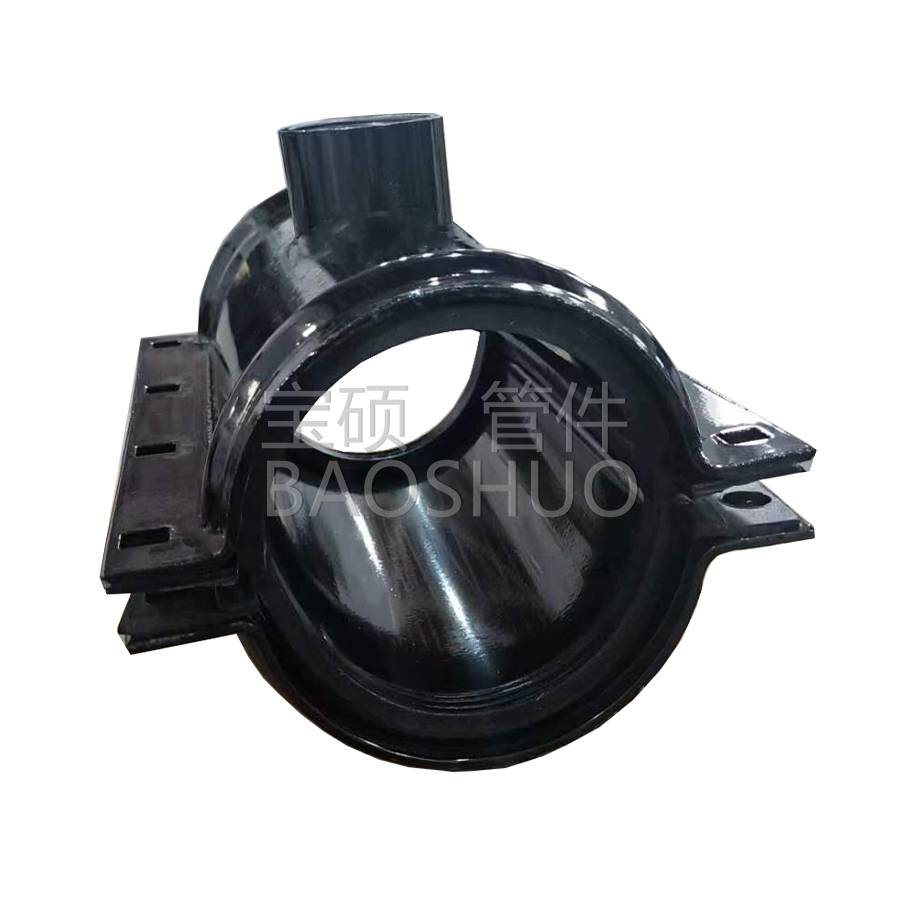

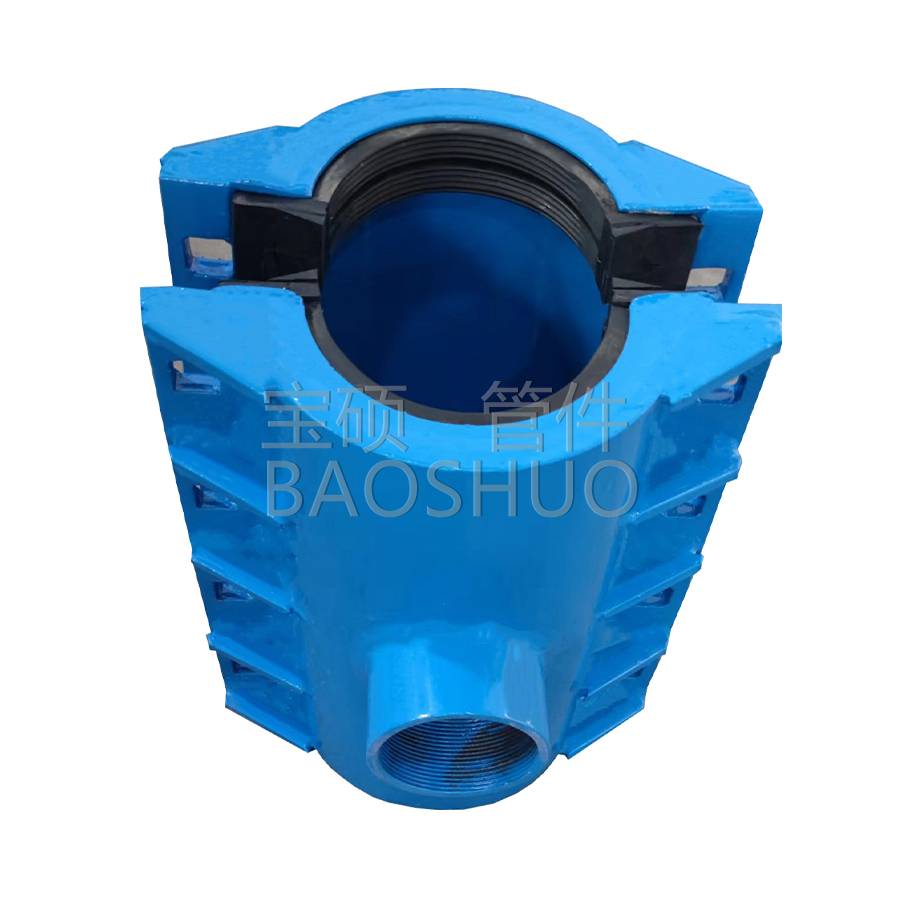

Tee with threaded branch
Suitable for pipe water distribution, increase the interface ,female adaptor,male adaptor,Screw thread
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance

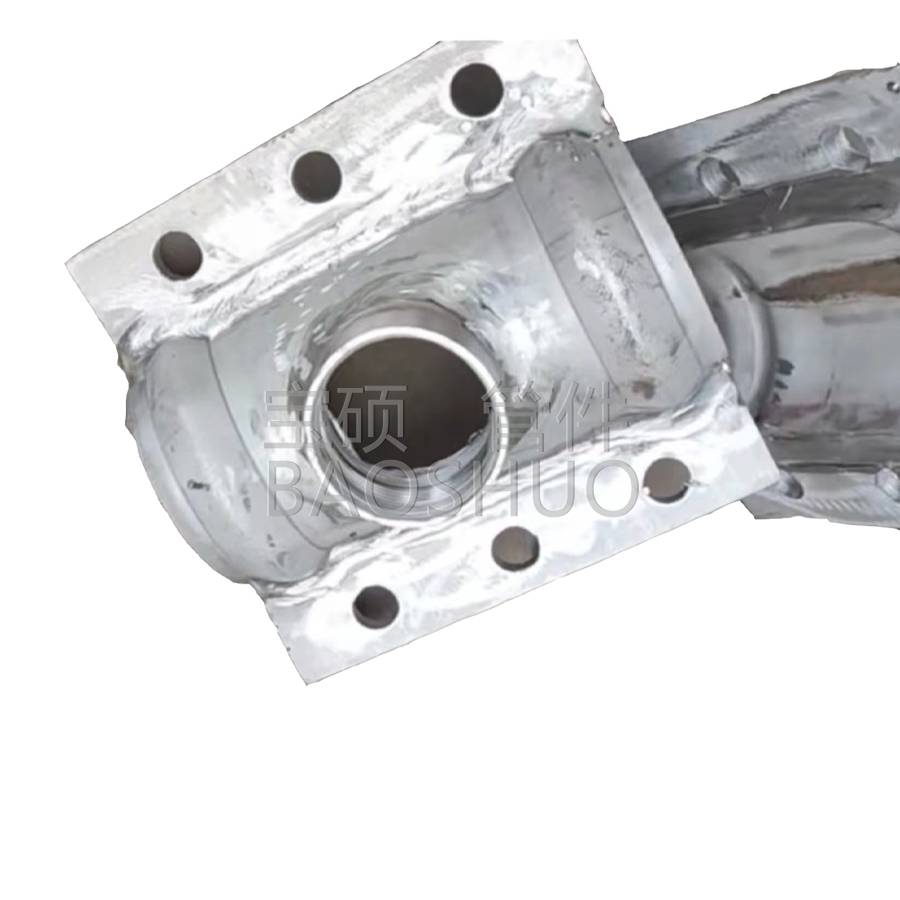

figure at the crime scene
|
model |
DN15-DN4000 |
Base material |
Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
Points to note for pipeline drilling construction:
Safety is the core: fully assess risks, and make good protection and emergency preparations.
Pipeline condition is the foundation: wall thickness, corrosion, and defect inspection are crucial.
Equipment material matching: correct selection, pressure level, material, and specifications must meet the requirements. For corrosive pipelines, choose Baoshuo's stainless steel drilling tee.
Precise centering: throughout the entire process of drilling and tapping.
Valve operation sequence: the valve must be fully opened when drilling; after the drilling is completed, the valve must be closed before the drilling machine is disassembled.
Reliable sealing: the rubber of the drilling tee is evenly tightened, and the threaded seal is correctly constructed.
Standardized operation: strictly follow the equipment operating procedures and construction specifications.
Thorough inspection: all sealing points must be strictly inspected after installation and in the initial stage of commissioning.
Tee with threaded branch Opening pipe type
PE pipe opening with tee, PE wire mesh skeleton pipe opening with tee, PVC pipe opening with tee, FRP pipe opening with tee, ductile iron pipe opening with tee, PPR pipe opening with tee.
