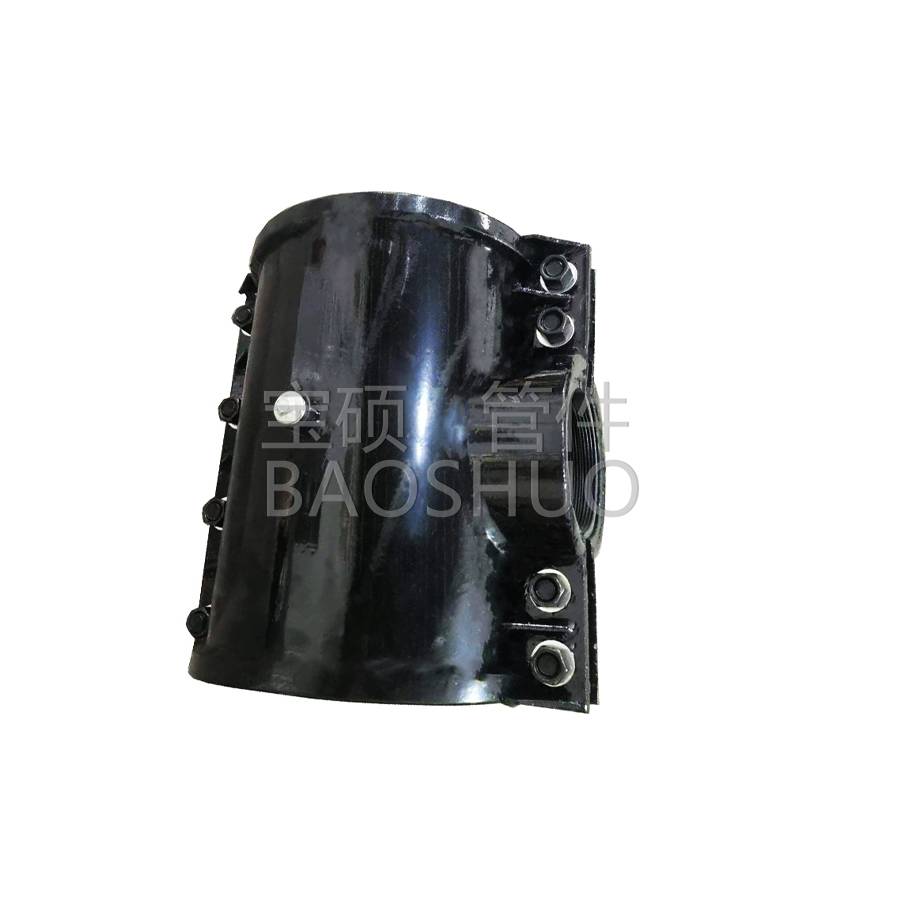

Reducing tee Pipe Repair Clamp
It is suitable for repair of water leakage at the tee joint, water leakage at the tee melting joint, water leakage at the tee hot melting joint, water leakage at the tee socket joint,Reducing Pipe Repair Clamp
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
DN15-DN4000 |
Base material |
Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
1. Applicable pipe types
1. For reducing tees on PVC pipes, PE pipes, PPR pipes, PE composite pipes, ABS pipes or other pipes with the same outer diameter, wrap the reducing tees for emergency repair;
For 20-1000UPVC water supply pipes or PVC-M water supply pipe reducing tees, wrap the entire tee for emergency repair;
2. For reducing tees on DN15-DN200 galvanized pipes or other pipes with the same outer diameter, wrap the reducing tees for emergency repair ;
3. For DN40-DN2600 ductile iron pipes or other pipes with the same outer diameter, wrap up the reducing tees for emergency repair;
4. For DN50-DN3500 steel pipes or other pipes with the same outer diameter, wrap up the reducing tees for emergency repair;
5. For DN100-DN4000 FRP pipes or other pipes with the same outer diameter, wrap up the reducing tees for emergency repair;
II. Applicable pipe connection types
Plastic pipe butt reducing tees are damaged, plastic pipe bonding connection welds are leaking, electric fusion reducing tees are leaking, hot fusion reducing tees are leaking, ductile iron pipe socket reducing tees are leaking, etc., any tee repair. Applicable to any type of reducing tee pipe fittings for emergency repair.
Performance characteristics
1. The construction is very convenient, no power outage or water outage is required, just find the damaged part of the pipe, hold the pipe with two pieces of Pipe Repair Clamp, and tighten the nut.
2. It is applicable to a wide range of pipe materials and has a small construction volume, which greatly saves manpower and material resources and ensures that it is leak-proof.
3. It is a green and environmentally friendly emergency repair equipment with good pressure-bearing performance, corrosion resistance, erosion resistance, aging resistance, non-toxicity, and no radiation.
Field drawing
