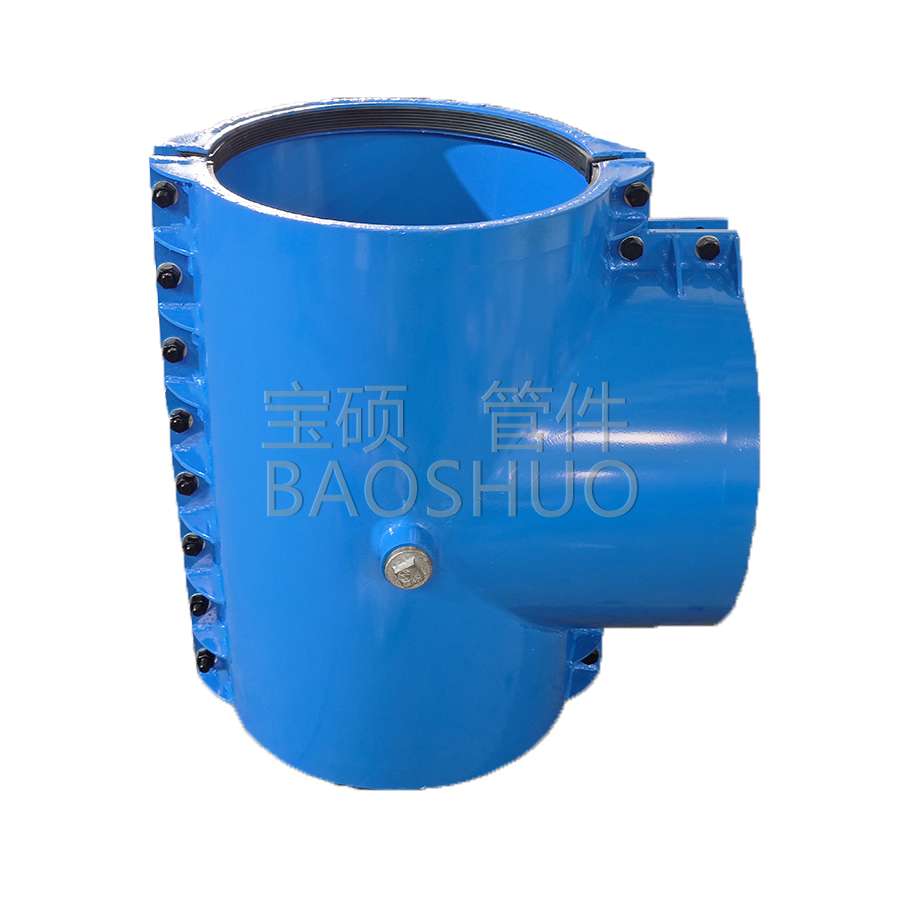

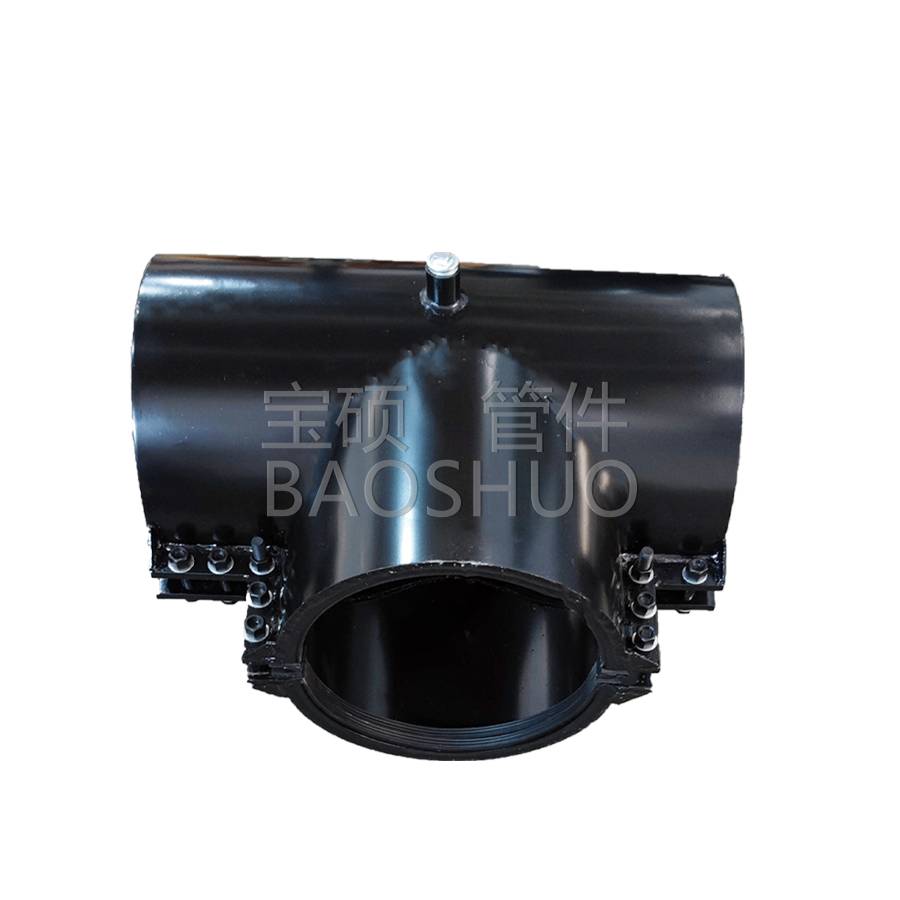

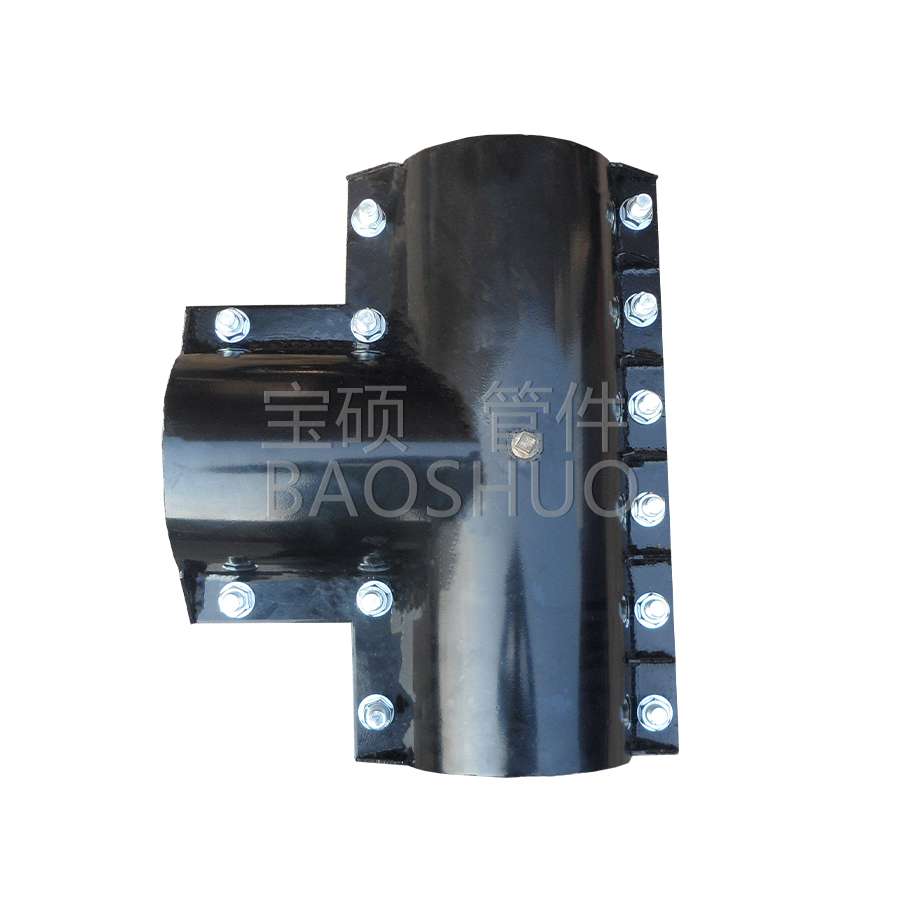

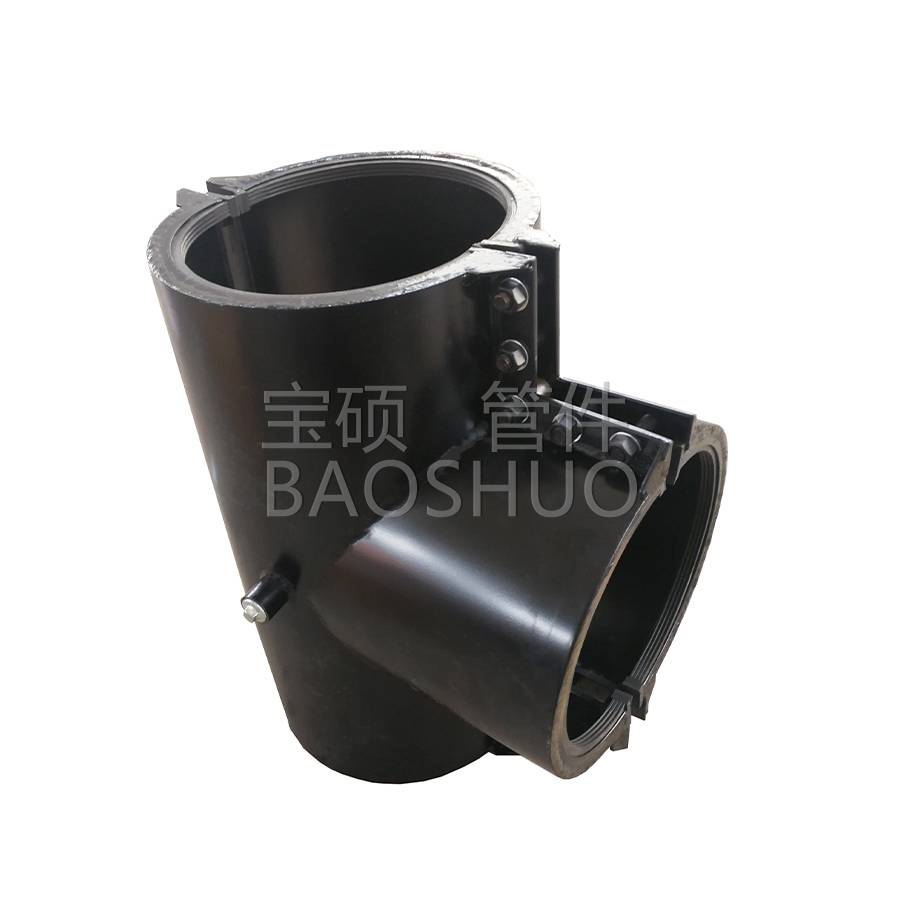

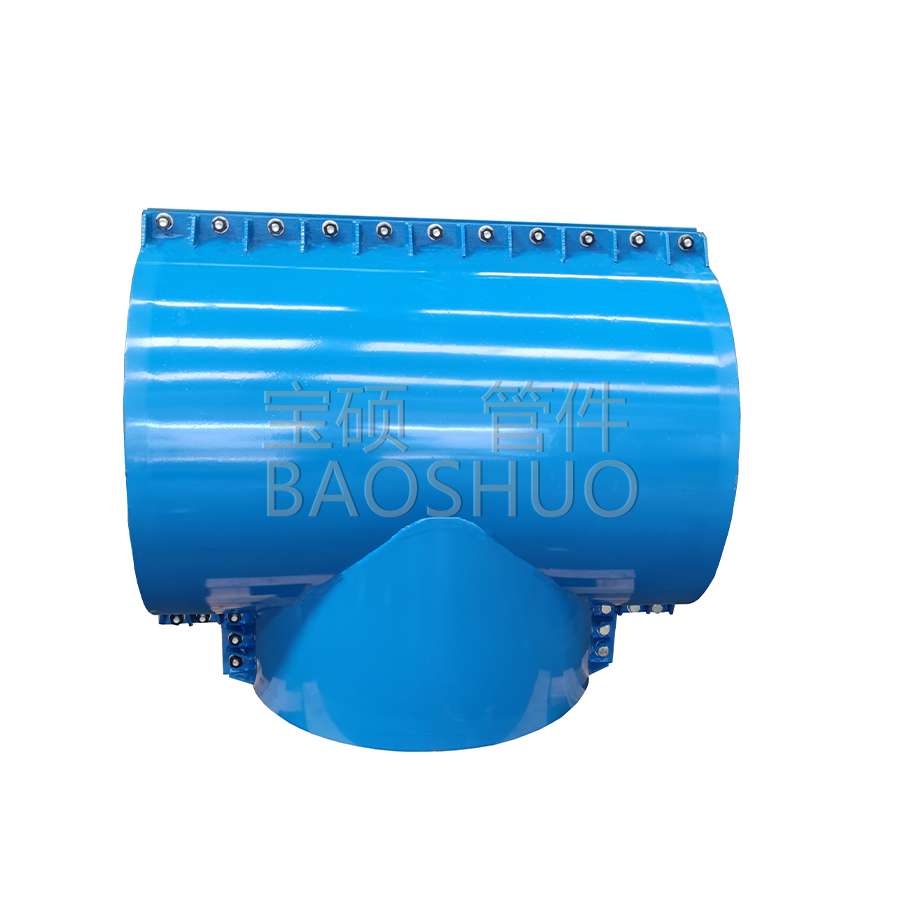

Equal Tee Pipe Repair Clamp
It is suitable for repair of water leakage at the tee joint, water leakage at the tee melting joint, water leakage at the tee hot melting joint, water leakage at the tee socket joint,Reducing Pipe Repair Clamp, for Tee section of pipe .
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
DN15-DN4000 |
Base material |
Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
|
|
|
-
Applicable pipe types
1. For the straight tees on PVC pipes, PE pipes, PPR pipes, PE composite pipes, ABS pipes or other pipes with the same outer diameter, wrap the straight tees for emergency repair;
20-1000 UPVC water supply pipes or PVC-M water supply pipe tees are leaking, wrap the entire tee for emergency repair;
2. For the straight tees on DN15-DN200 galvanized pipes or other pipes with the same outer diameter, wrap the straight tees for emergency repair;
3. For the straight tees on DN40-DN2600 ductile iron pipes or other pipes with the same outer diameter, wrap the straight tees for emergency repair;
4. For the straight tees on DN50-DN3500 steel pipes or other pipes with the same outer diameter, wrap the straight tees for emergency repair;
5. For the straight tees on DN100-DN4000 fiberglass pipes or other pipes with the same outer diameter, wrap the straight tees for emergency repair;
2. Applicable pipe connection types
Plastic pipe butt tee damage, plastic pipe bonding connection weld leakage, electric fusion tee leakage, hot melt tee leakage, ductile iron pipe socket tee leakage, etc., tee leakage repair, tee Pipe Repair Clamp, PE butt tee Pipe Repair Clamp, ductile iron pipe tee Pipe Repair Clamp, FRP pipe Pipe Repair Clamp, can be customized according to the size of the tee on site. Large-diameter repair section, any tee repair.
3. Tee installation method
1. Clean the surface of the pipe that needs to be repaired. Too rough surface will affect the sealing effect.
2. Separate the pipe repair clamp, and remove the pressure relief plug on the Pipe Repair Clamp, and place the upper and lower parts of the Pipe Repair Clamp on the pipe.
3. Install the screws in diagonal order until they are sealed.
Pay attention to the distance between the upper and lower parts of the pipe repair clamp when installing the screws, keep the two sides consistent, and be careful not to squeeze the triangular rubber too much to cause damage.
4. Install the plug wrapped with raw tape on the pressure relief hole.
Field drawing
