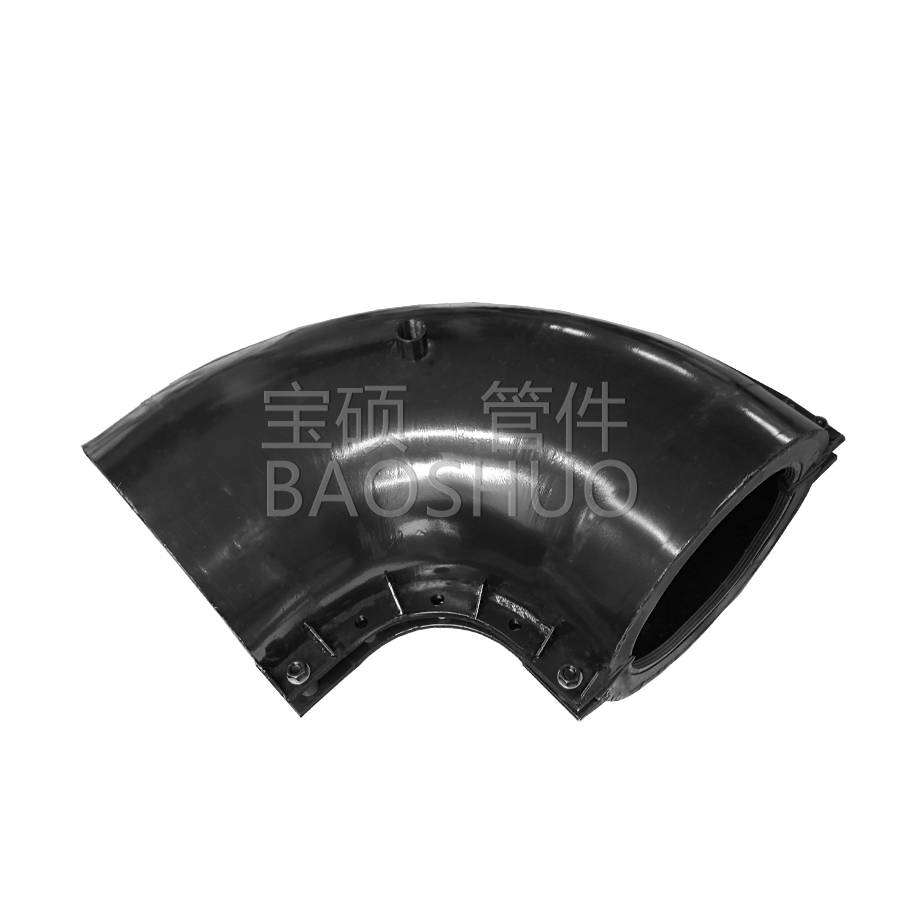

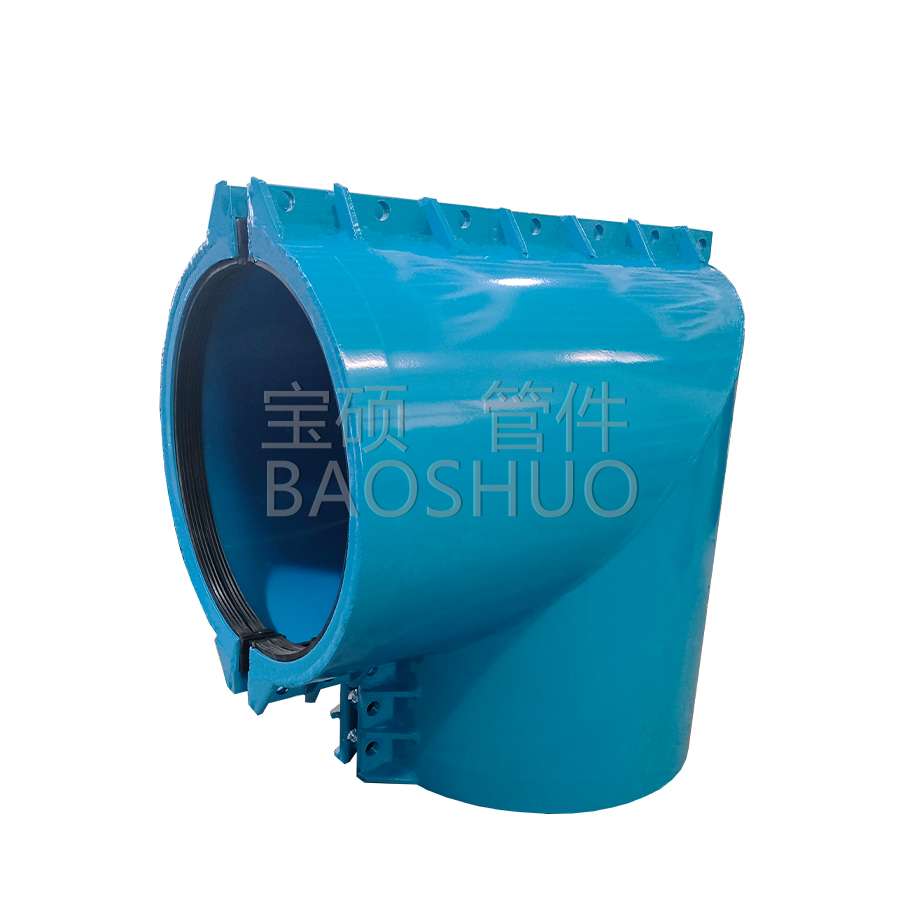

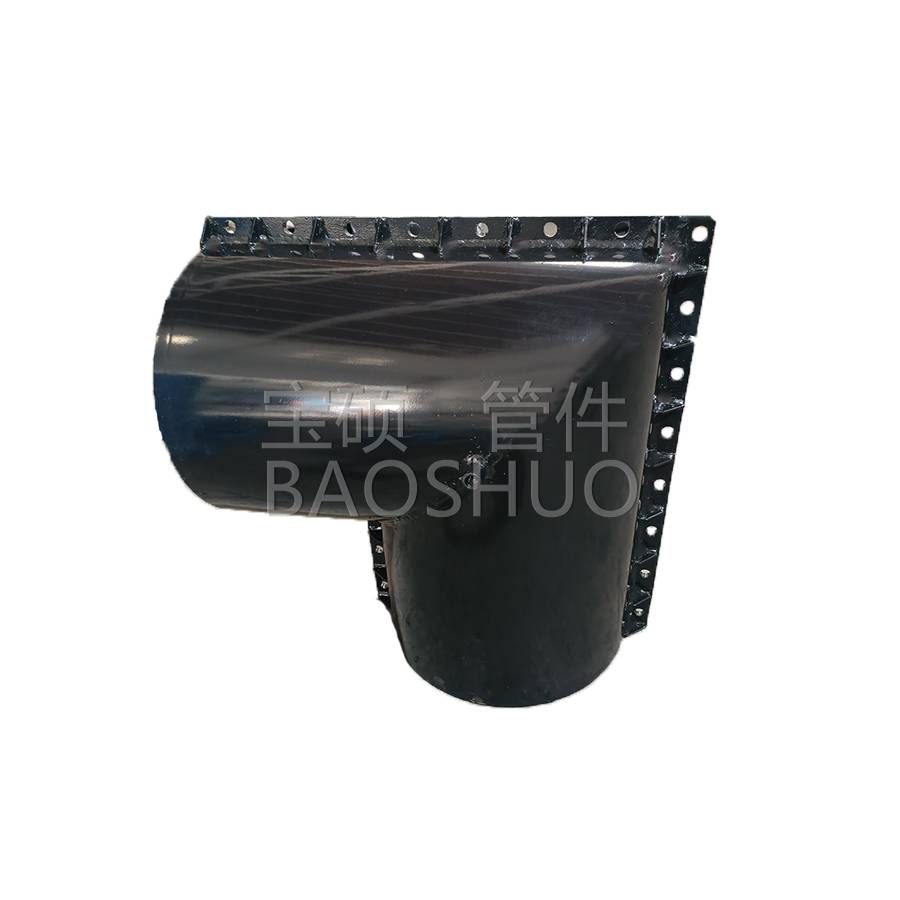

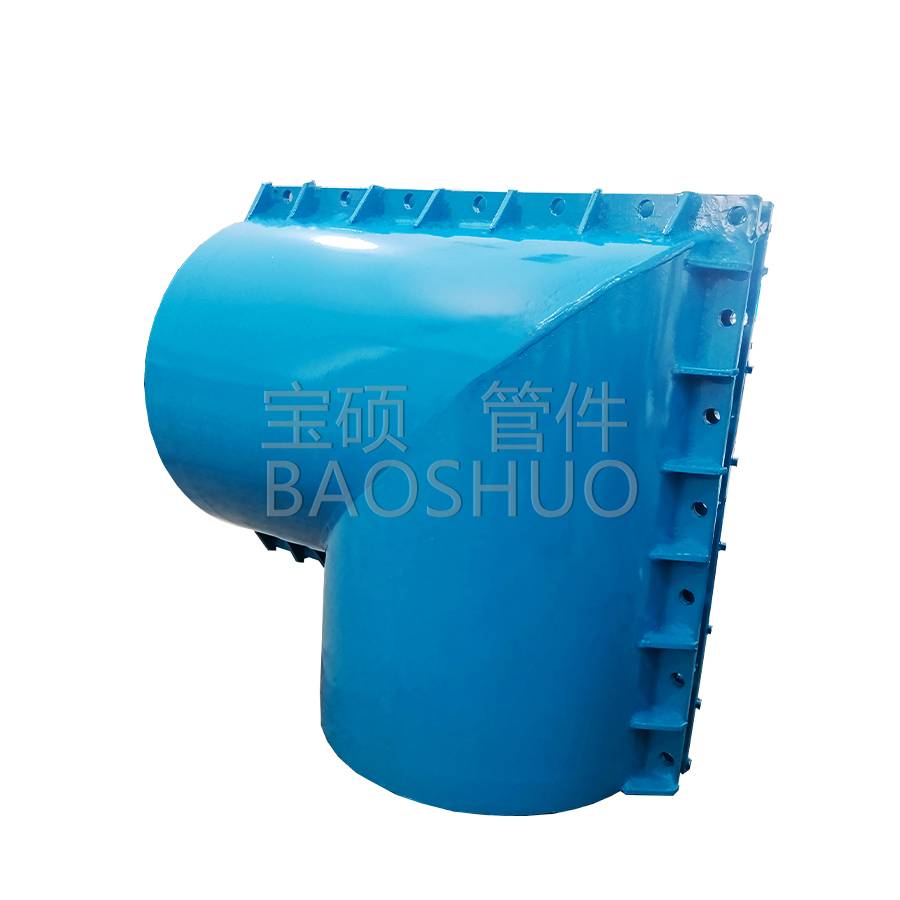

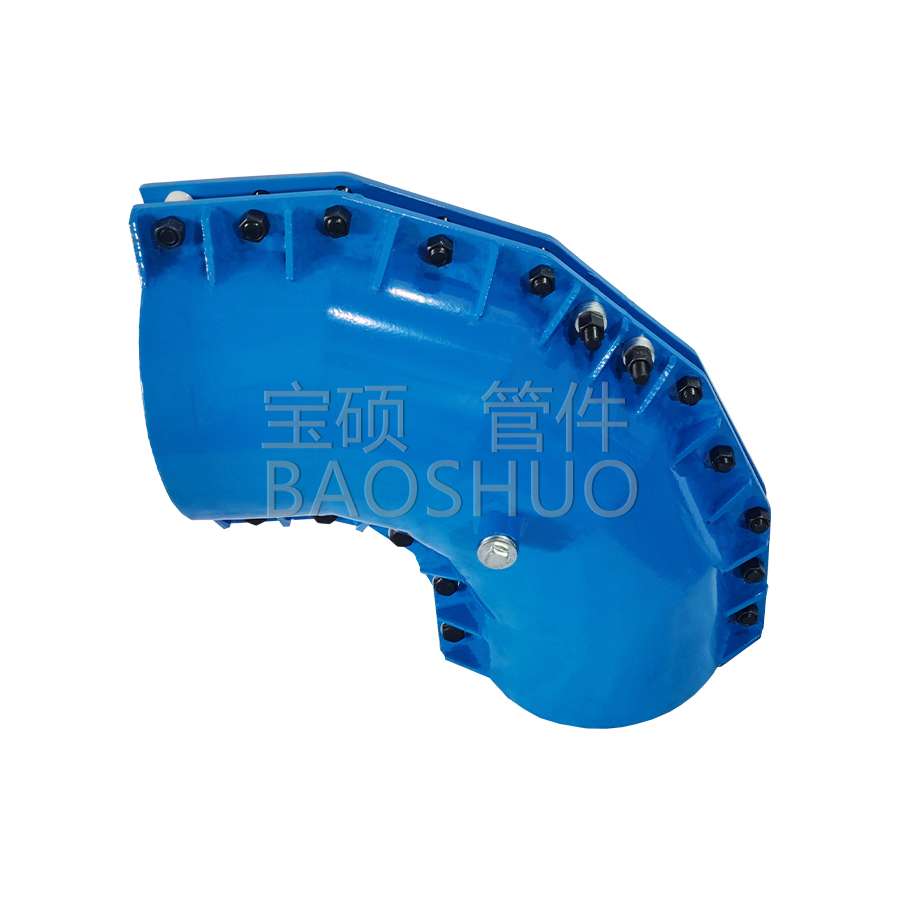

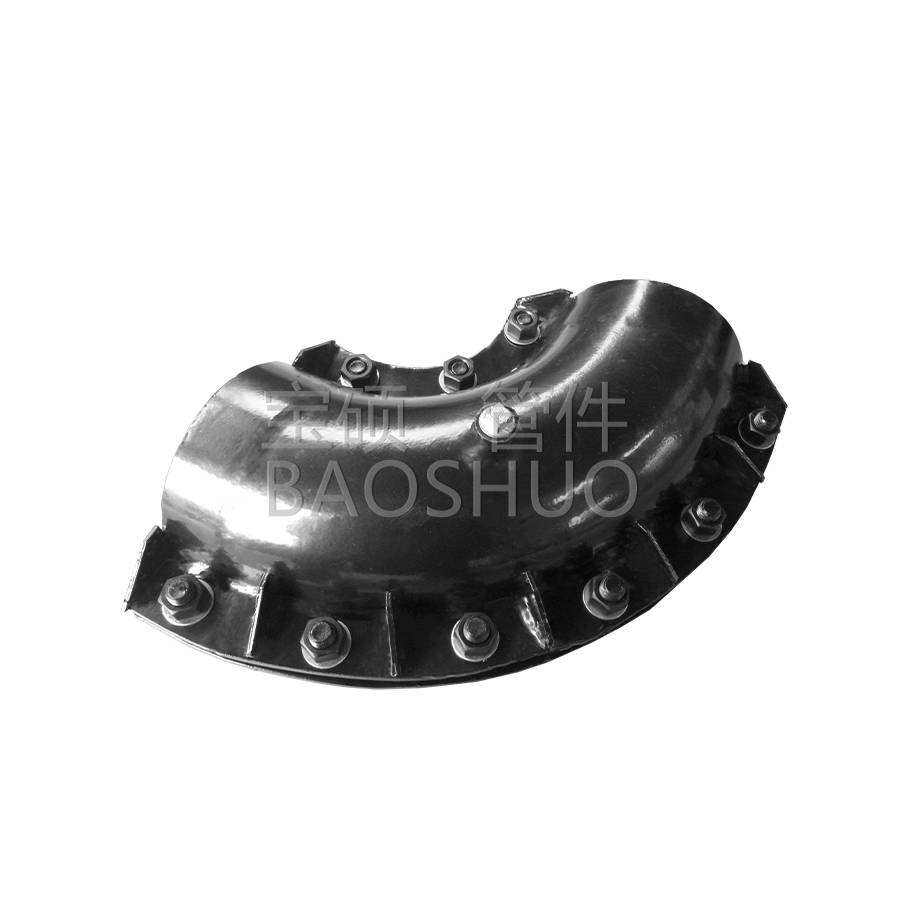

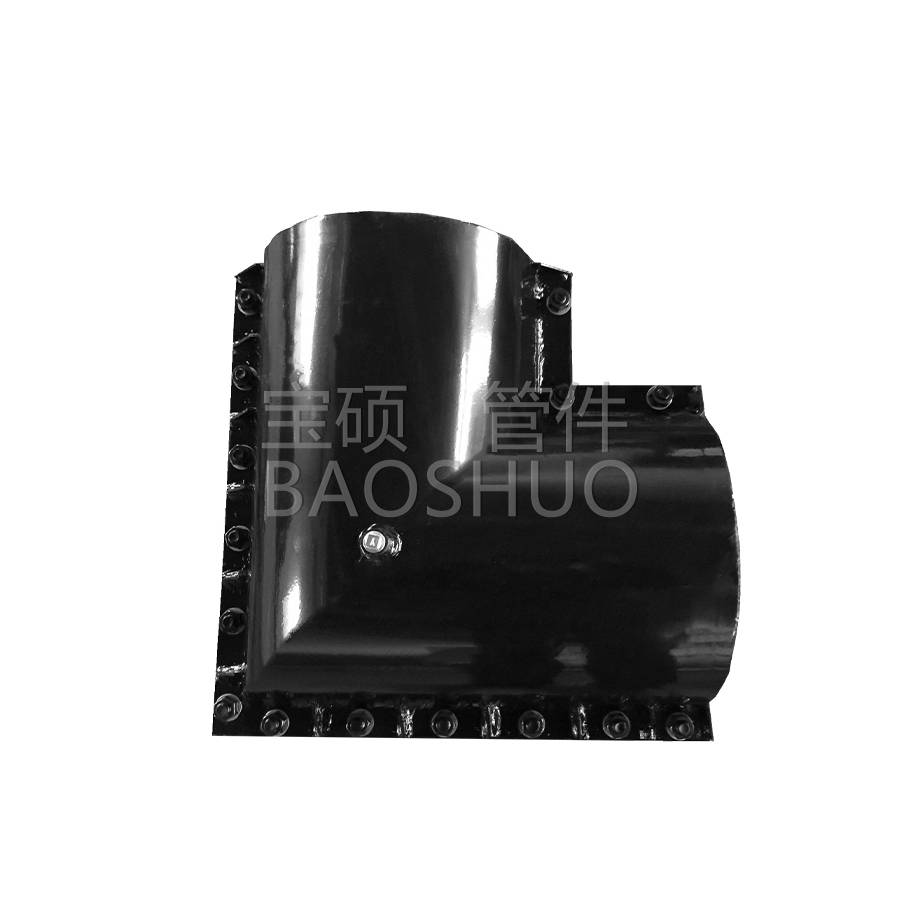

90° Elbow Pipe Repair Clamp
Suitable for 90 degree elbow pipe leakage maintenance, plastic pipe leakage, bonding leakage, electric fusion welding joint leakage,
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
DN15-DN4000 |
Base material |
Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
1. Applicable pipe types
1. Elbow fittings on PVC pipe, PE pipe, PPR pipe, PE composite pipe, ABS pipe or other pipes with the same outer diameter, 90 degree elbow. Wrap the elbow for emergency repair;
2. Elbow fittings on DN15-DN200 galvanized pipe or other pipes with the same outer diameter, 90 degree elbow. Wrap the elbow for emergency repair;
3. Elbow fittings on DN40-DN2600 ductile iron pipe or other pipes with the same outer diameter, 90 degree elbow. Wrap the elbow for emergency repair;
4. Elbow fittings on DN50-DN3500 steel pipe or other pipes with the same outer diameter, 90 degree elbow. Wrap the elbow for emergency repair;
5. Elbow fittings on DN100-DN4000 FRP pipe or other pipes with the same outer diameter, 90 degrees. Wrap the elbow for repair;
2. Applicable pipe connection types
Damaged plastic pipe butt elbow, leaking plastic pipe adhesive connection weld, leaking electric fusion elbow, leaking hot melt elbow, flange connection elbow, leaking ductile pipe socket elbow, etc., any elbow repair.
Field drawing
