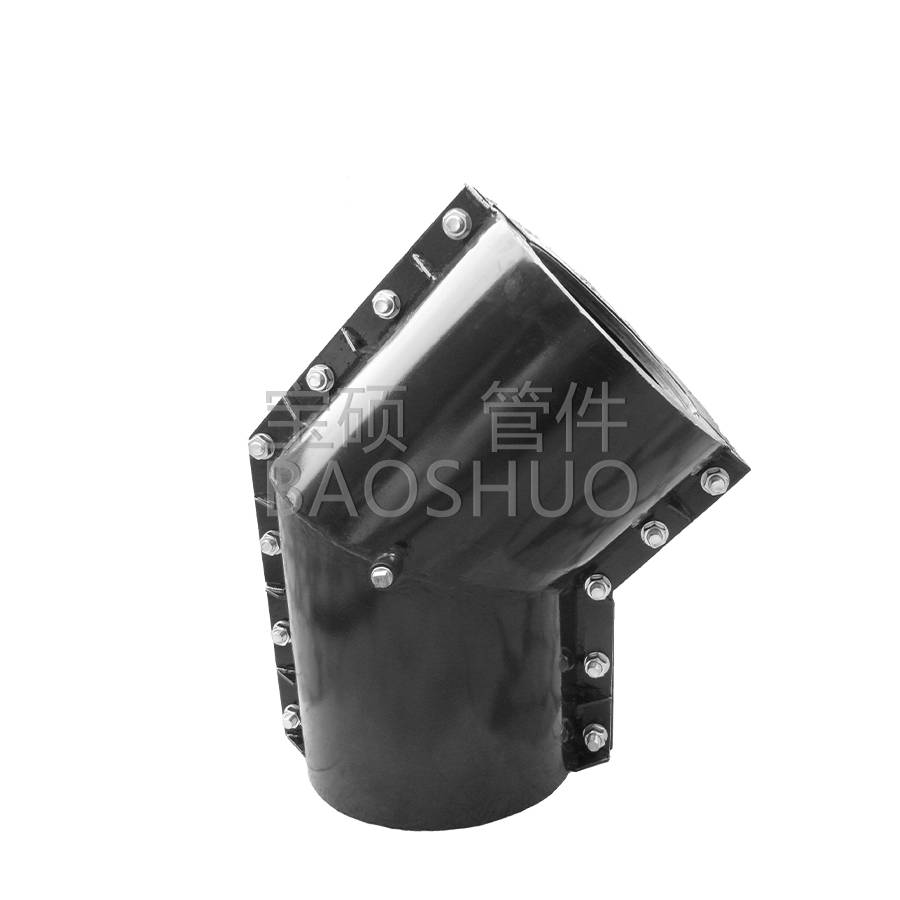

45° Elbow Pipe Repair Clamp
Suitable for 45 degree elbow pipe leakage maintenance, plastic pipe leakage, bonding leakage, electric fusion welding joint leakage,
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
DN15-DN4000 |
Base material |
Q235 steel plastic (customizable stainless steel 304, 316, 316L, 2205 duplex steel) |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Black Grey Orange Red Blue Red |
|
Customized length range |
100mm-10m |
Certification |
ISO14001,ISO45001,ISO9001 |
1. Applicable pipe types
1. Elbow fittings on PVC pipe, PE pipe, PPR pipe, PE composite pipe, ABS pipe or other pipes with the same outer diameter, 45-degree elbow. Wrap the elbow for emergency repair;
2. Elbow fittings on DN15-DN200 galvanized pipe or other pipes with the same outer diameter, 45-degree elbow. Wrap the elbow for emergency repair;
3. Elbow fittings on DN40-DN2600 ductile iron pipe or other pipes with the same outer diameter, 45-degree elbow. Wrap the elbow for emergency repair;
4. Elbow fittings on DN50-DN3500 steel pipe or other pipes with the same outer diameter, 45-degree elbow. Wrap the elbow for emergency repair;
5. Elbow fittings on DN100-DN4000 FRP pipe or other pipes with the same outer diameter, 45 degrees. Wrap the elbow and repair it;
2. Applicable pipe connection types
Plastic pipe butt elbow damage, plastic pipe bonding connection weld leakage, electric fusion elbow leakage, hot melt elbow leakage, flange connection elbow, ductile pipe socket elbow leakage, etc., any elbow repair.
3. Possible causes of elbow pipe leakage
Elbows are the parts of the pipeline system where stress concentration, drastic flow state changes, and are susceptible to corrosion/scouring, so the risk of leakage is high. The possible causes of leakage are:
How to preliminarily determine the cause
Location of leakage point: on the weld, on the outside of the elbow body (erosion), random points (corrosion), at the interface of the insulation layer,
Leakage form: pinhole, crack, large area thinning and perforation,
Medium characteristics: whether it contains corrosive components, whether it contains solid particles, how is the flow rate,
Operation history: whether there are frequent starts and stops, whether there is over-temperature and over-pressure, when was the last inspection, how does the wall thickness data change,
Environment: buried, overhead, whether there is insulation, is the environment corrosive,
Visual inspection: whether there are serious corrosion products near the leakage point, erosion marks, whether the insulation layer is damp and damaged.
Field drawing
