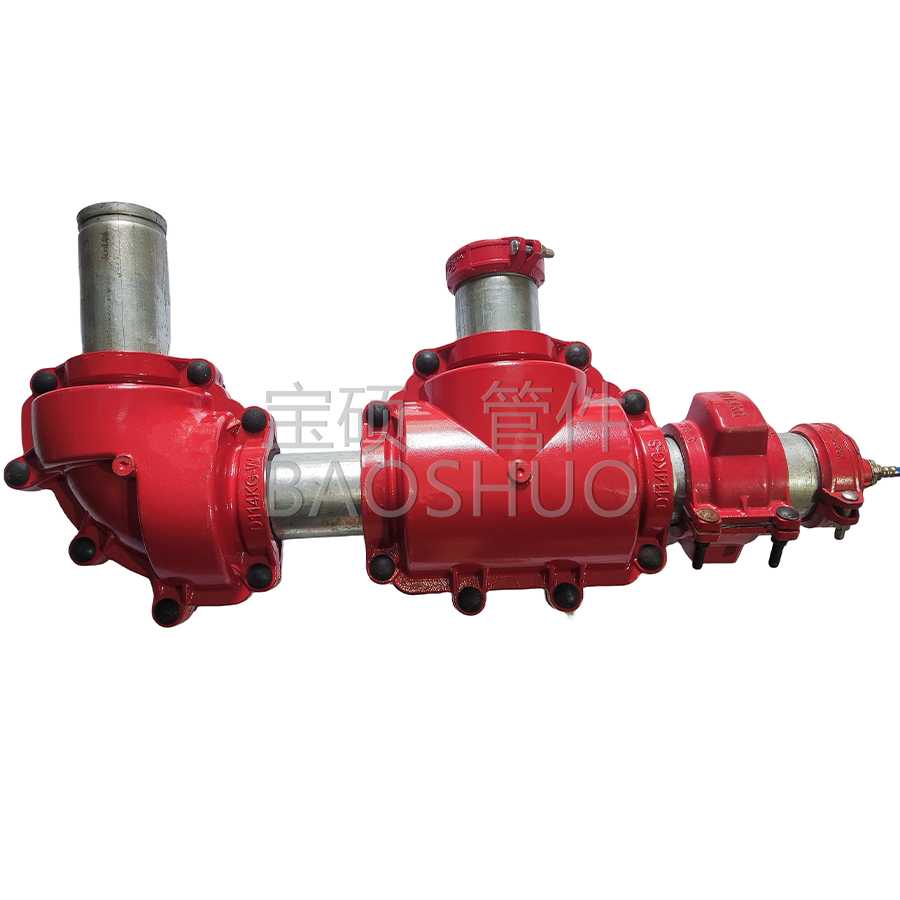

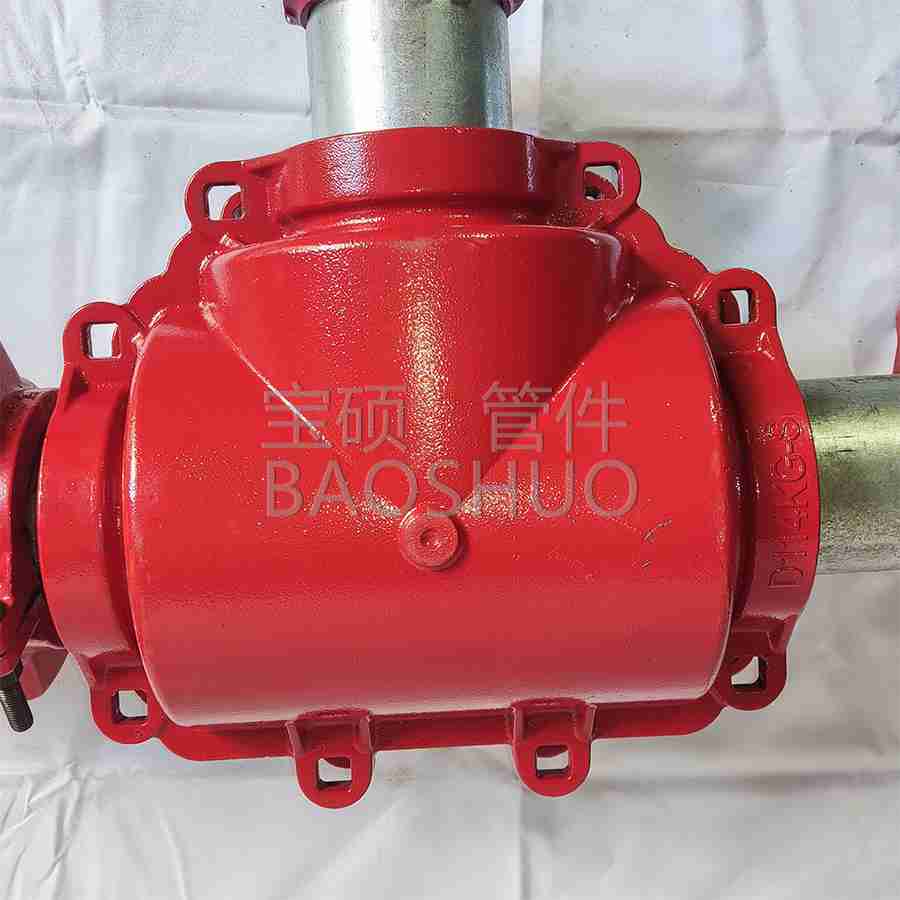

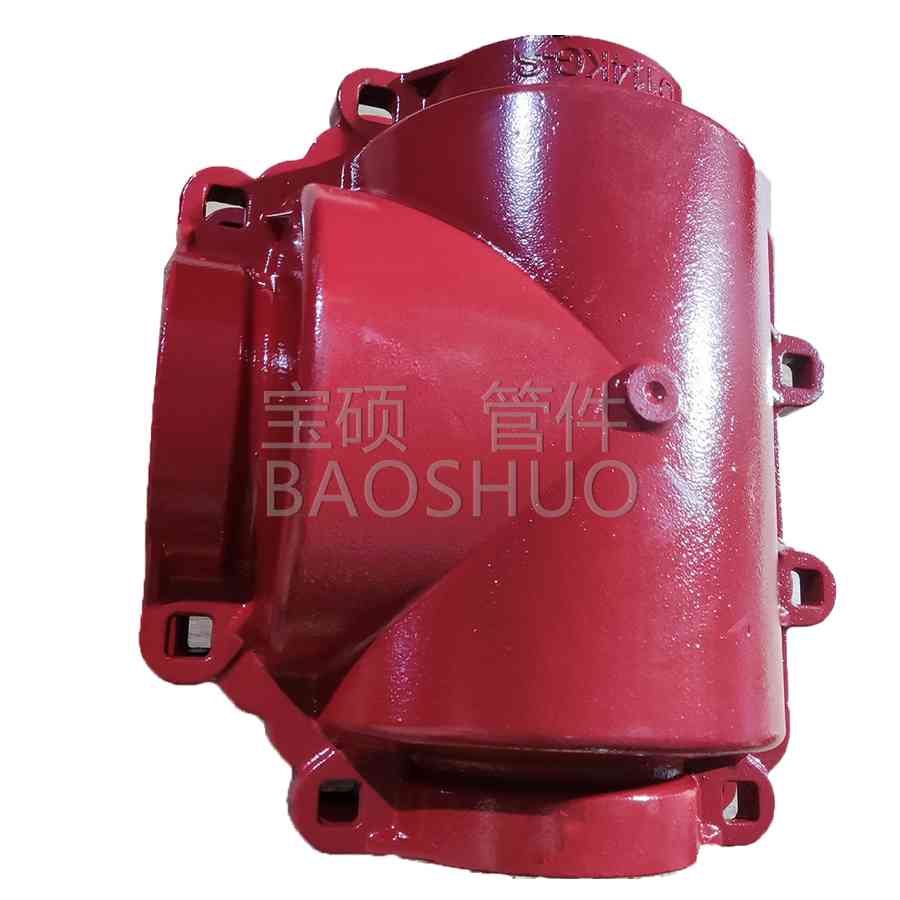

Galvanized steel pipe groove clamp tee pipe Repair Clamp
Product Introduction: Mainly used for galvanized steel pipe groove clamp tee
Water leak repair. No need to replace accessories, no need to drain, no need to replace sealing rings, just wrap up the leaking position as a whole, simple and fast operation, can achieve non-stop water pressure operation
Product Material: Ductile iron, Q235 carbon steel, epoxy resin,
EPDM rubber/natural rubber, 8.8 grade high-strength screws, customizable stainless steel material
Length range: suitable for groove clamp tee
Special length can be customized according to site

Fire pipe clamp (clip) connection is a common groove connection method, and its leakage is usually caused by seal failure or structural damage.

1. Main causes of leakage

Failure of sealing ring: aging or insufficient elasticity, improper installation or mechanical damage, mismatch of specifications.

Problems with pipe and clamp structure: groove processing defects, pipe displacement or settlement, pipe material or deformation.

Improper installation operation: insufficient or excessive tightening of bolts, insufficient cleaning of pipes, and failure to insert them in place.

External environmental factors: corrosion and aging, external force damage, construction collision, system overpressure or frequent pressure relief impact joints.

Field drawing
