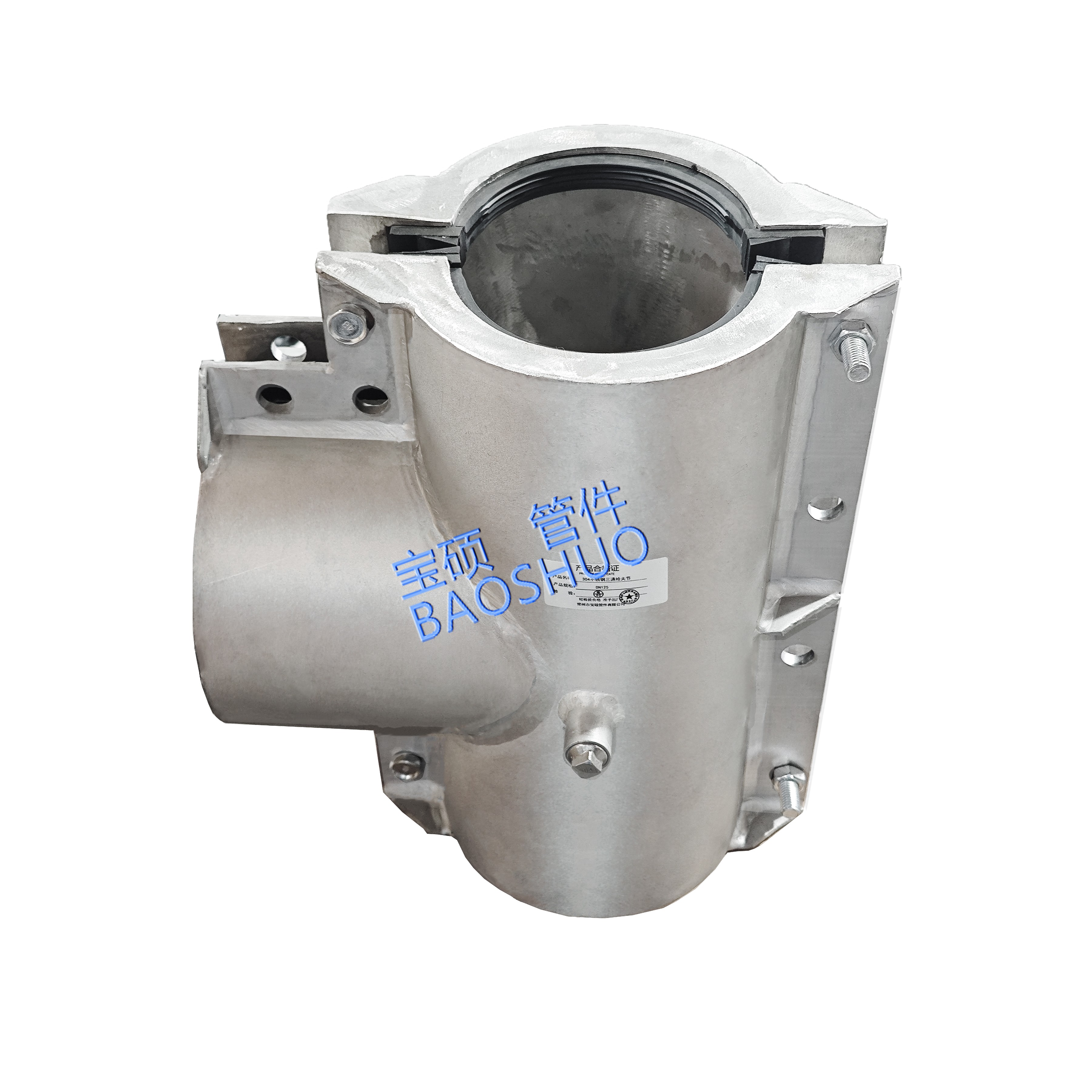

Tee leak repair clamp Stainless steel
Suitable for repairing leaking tee joints, leaking tee electric fusion joints, leaking tee hot melt joints, industrial pipeline tee leaks, stainless steel tee leaks, corrosive tee pipe leaks, seawater pipe tee leaks, tee socket joint leaks
Product Features
*Easy to install
*Strong pressure resistance and corrosion resistance
*Widely applicable, suitable for any material pipeline and working environment
*Quality assurance (internal quality inspection of each product)
*Good after-sales service
*Customizable in any length and caliber
*Customizable for oil pipelines and natural gas pipelines, customizable for corrosion resistance, acid and alkali resistance, high temperature and high pressure resistance
figure at the crime scene
|
model |
DN15-DN4000 |
Base material |
ustomizable stainless steel 304, 316, 316L, 2205 duplex steel |
|
Rubber seal |
Nitrile rubber, EPDM rubber, fluororubber, silicone rubber |
Bolt&Nut |
8.8 grade high-strength screws (optional stainless steel screws) |
|
coating |
Epoxy powder coating |
Sealing pressure |
≥1.6Mpa |
|
trademark |
Baoshuo |
colour |
Grey |
|
Customized length range |
100mm-10m |
|
Tee leak repair clamp Stainless steel
It plays a vital role in the repair of pipeline systems. The main body is made of stainless steel. The sealing rubber can be selected from nitrile rubber, EPDM rubber, fluororubber, and silicone rubber. It is suitable for repairing leaks at tee connections, leaks at tee electric fusion connections, leaks at tee hot melt connections, and leaks at tee socket connections.
Common stainless steel grades:
304/L: General type, good corrosion resistance, and the most widely used. L means ultra-low carbon, and better resistance to intergranular corrosion after welding.
316/L: Contains molybdenum, which significantly improves the resistance to pitting and crevice corrosion, especially chloride ion corrosion. Used in marine environments, chemicals, pharmaceuticals, seawater desalination, bleaching agent environments, etc.
Duplex stainless steel: High strength, strong resistance to chloride stress corrosion cracking and pitting, used in harsh environments.
Analysis of the causes of pipeline leakage:
Mechanical damage: Construction collision, heavy object falling, excavation damage (third-party damage).
Foundation settlement: Causes the pipeline system to deform and generates excessive stress at the tee.
Natural disasters: Earthquakes, floods, landslides, etc.
Frost heave: The medium in the pipeline freezes and expands, causing rupture.
Field drawing
