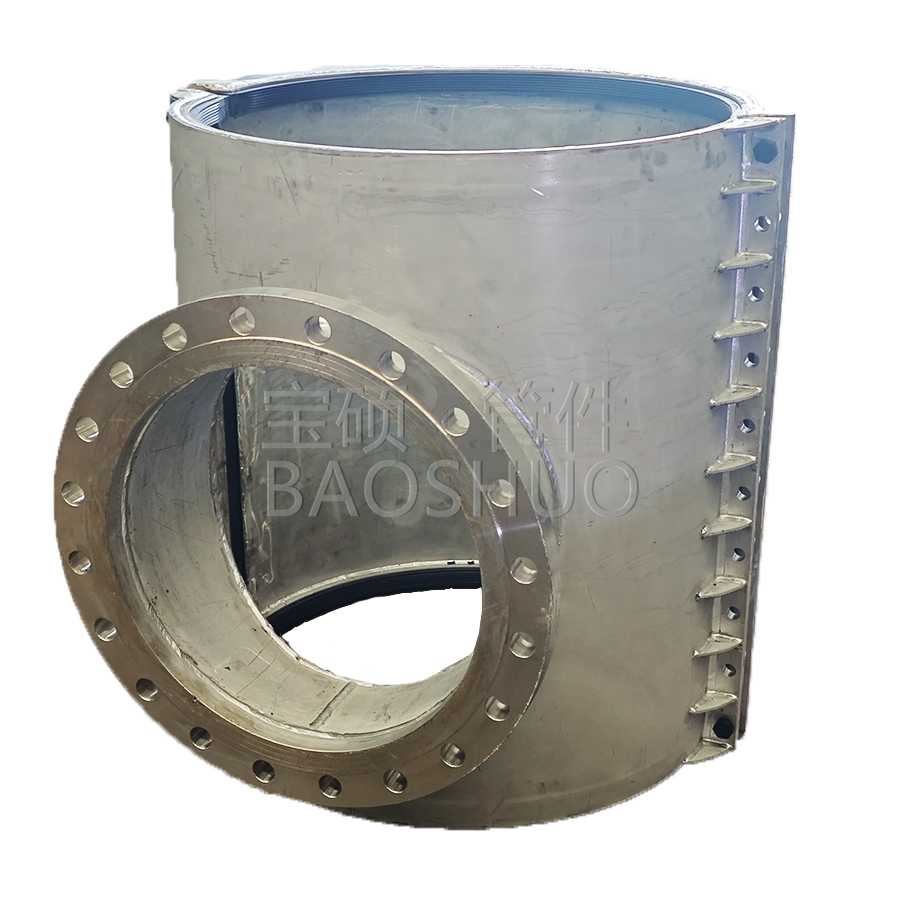

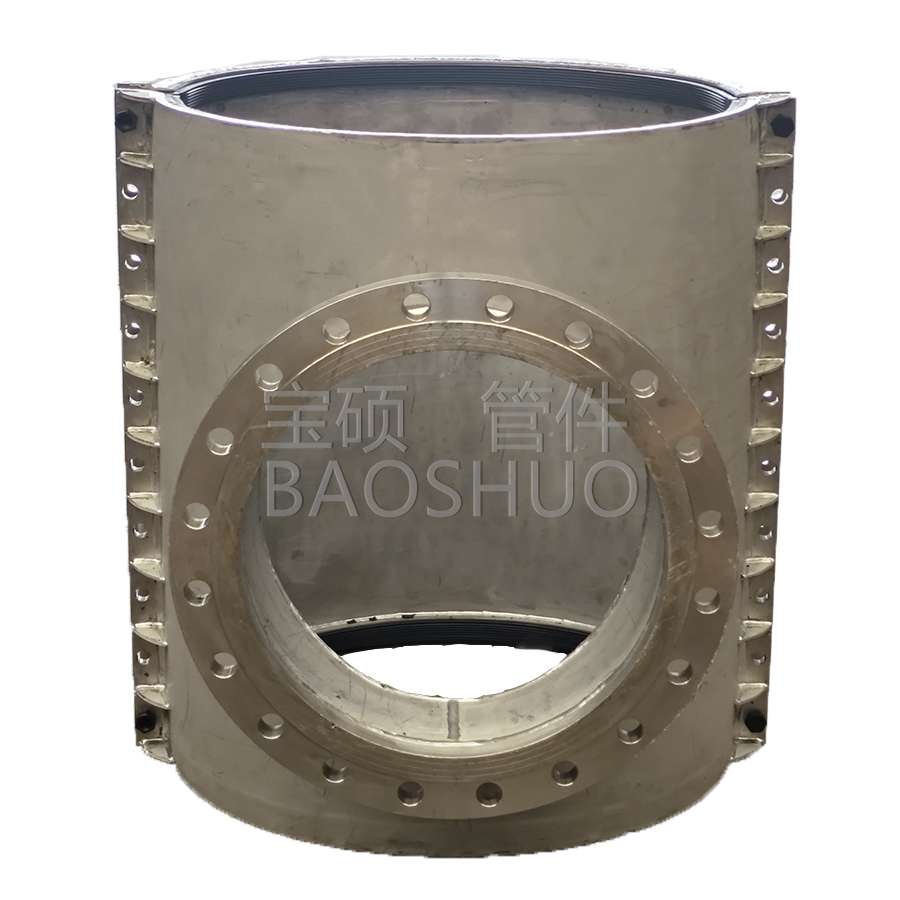

Flanged tee clamp branch Stainless steel

It plays a vital maintenance role in the pipeline system. The main body is made of stainless steel. The sealing rubber can be selected from nitrile rubber, EPDM rubber, fluororubber, silicone rubber. It is suitable for pipeline water distribution, increasing interfaces, stainless steel half joints, corrosive pipeline opening tees, special material pipeline opening tees, and corrosion-resistant pipelines.

Common stainless steel grades:

304/L: General type, good corrosion resistance, the most widely used. L means ultra-low carbon, and better resistance to intergranular corrosion after welding.

316/L: Contains molybdenum, significantly improves resistance to pitting and crevice corrosion, especially resistance to chloride ion corrosion. Used in marine environment, chemical industry, pharmaceutical industry, seawater desalination, bleaching agent environment, etc.

Duplex stainless steel: High strength, strong resistance to chloride stress corrosion cracking and pitting, used in harsh environments.

Uses of Flange Tee with Flanged branch:

Pipeline system transformation and expansion:

In the existing water supply, drainage, fire protection, process pipeline, oil and gas pipeline and other systems, add branch lines or equipment interfaces (such as adding valves, instruments, equipment connection ports, user takeover points).

Large diameter main branch:

When the main pipeline has a large diameter, it is costly, time-consuming and difficult to install to purchase or prefabricate tees of corresponding specifications.

Low pressure or non-critical system:

Widely used in municipal water supply and drainage, building water supply and drainage, fire sprinkler, low-pressure steam, air conditioning water system and other systems that are not extremely demanding in terms of pressure level and safety requirements.

Space-constrained occasions:

In areas with dense pipelines or small spaces, prefabricated tees may not be installed due to size issues, while the opening of the Flange Haff Tee can be flexibly constructed on site.

Temporary pipeline access:

When it is necessary to temporarily lead a branch pipe from the main pipeline.

Specific industrial applications:

In the chemical, petrochemical, electric power and other industries, for specific media, specific working conditions, or specific locations.

Field drawing
