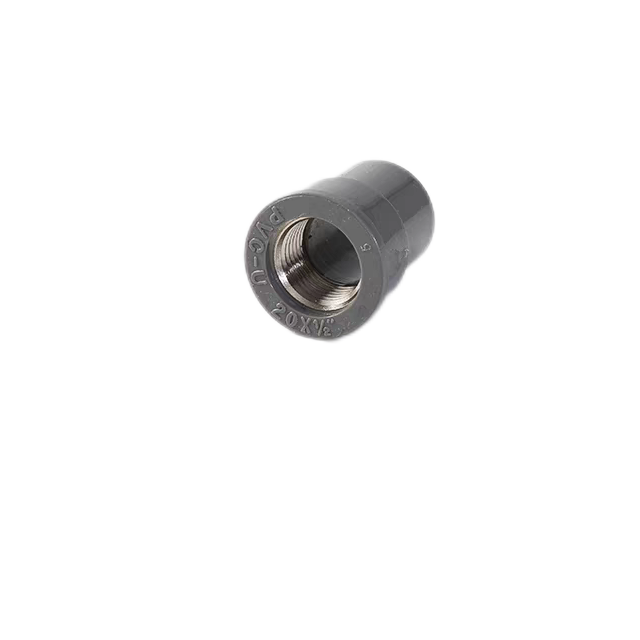

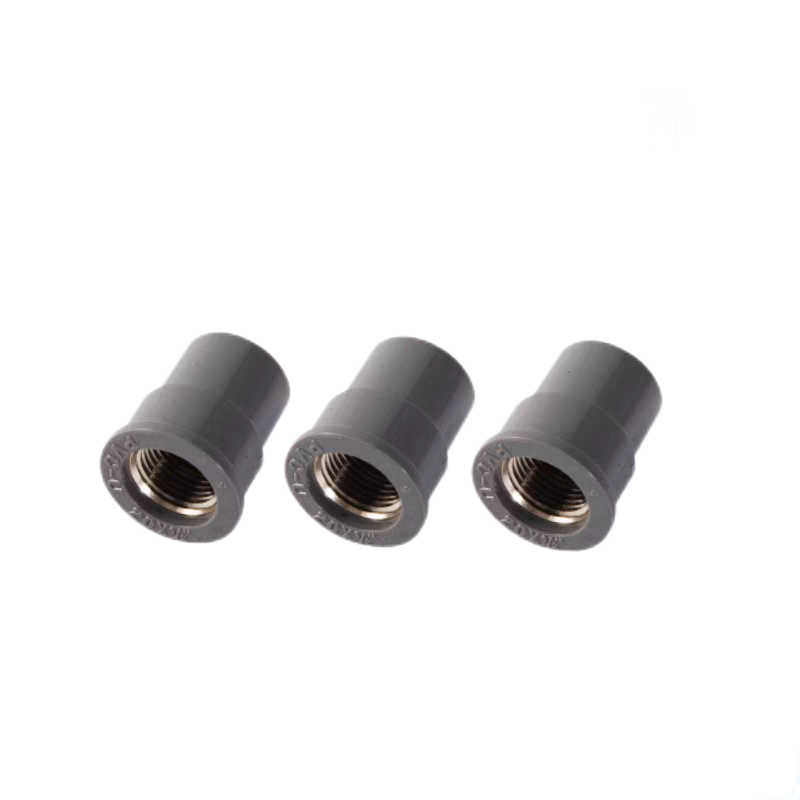

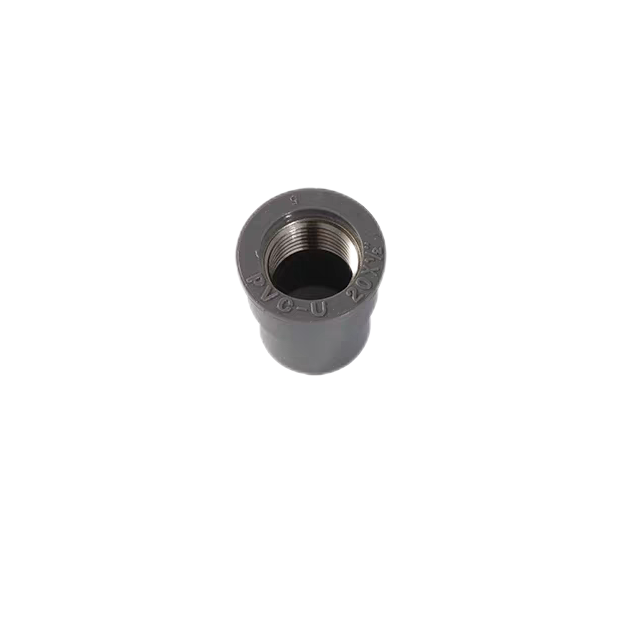

PVC female coupling
PVC water supply pipe fittings Copper internal thread joints (specifications range from 20*1/2" to 32*1")
Product features
* Acid and alkali resistance, high impact strength, low fluid resistance, aging resistance, long service life
|
model |
Φ20-500mm |
Product Usage |
Water supply fittings |
|
Product Material |
PVC |
Product color |
grey |
PVC copper internal thread joint
Usage:
- Joint: straight connection, PVC end socket, copper end internal thread connected to metal parts.
Installation precautions:
Key points for glue connection:
- Make sure the PVC pipe is inserted to the right depth (to the bottom of the socket), and do not move before the glue is cured.
Thread sealing:
- The direction of the raw tape winding is opposite to the direction of the thread (winding in reverse thread) to prevent it from falling off when screwing in.
PVC copper internal thread joint/tee
Usage:
- Joint: straight connection, PVC end socket, copper end internal thread connected to metal parts.
- Tee: T-type branch, containing one or more copper internal thread interfaces.
Installation precautions:
Key points for glue connection:
- Make sure the PVC pipe is inserted to the right depth (to the bottom of the socket), and do not move before the glue is cured.
Thread sealing:
- The direction of the raw tape winding is opposite to the direction of the thread (winding in reverse thread) to prevent it from falling off when screwing in.
Branch load:
- When the three-way branch port is connected to equipment (such as a water pump), the weight of the equipment must be supported independently to avoid stress on the pipe fittings.
