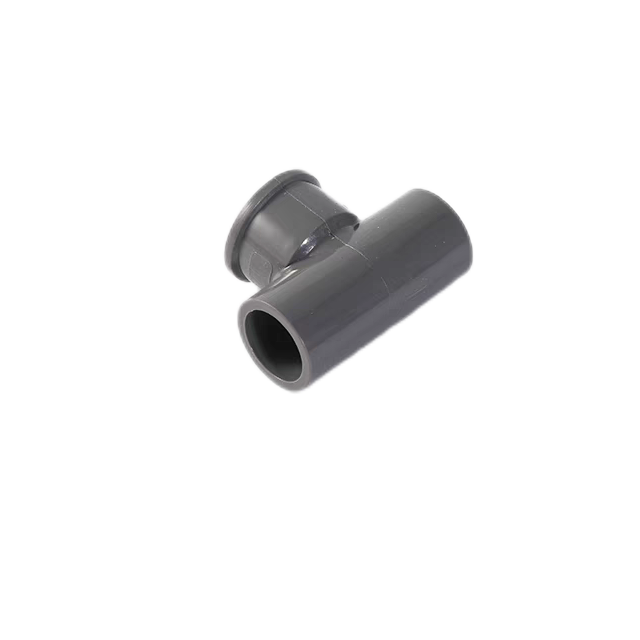

PVC female tee
A branch pipe is separated from the PVC main pipe, and the branch pipe needs to be connected to metal pipe fittings, valves, faucets, metal pipes, etc. with external threads.

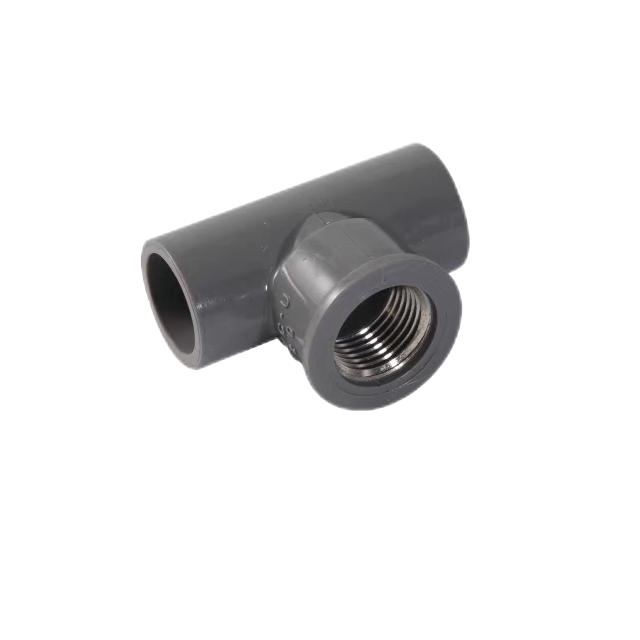

PVC copper inner wire tee
Product features
*Acid and alkali resistance, high impact strength, low fluid resistance, aging resistance, long service life
Describe
|
model |
Φ20-500mm |
Product Usage |
Water supply fittings |
|
Product Material |
PVC |
Product color |
grey |
Purpose: A branch pipe is separated from the PVC main pipe, and the branch pipe needs to be connected to metal pipe fittings, valves, faucets, metal pipes, etc. with external threads.
Structure: The three ports of the tee, usually the two ports in the main pipe direction are sockets (used for bonding PVC pipes), and the branch pipe port is internally threaded (.
Installation:
The sockets at both ends of the main pipe are connected to the PVC pipe by socket bonding.
Internal thread port of the branch pipe: Clean the thread, screw the metal external thread connector (or the external thread end of the valve, the external thread end of the metal pipe) to be connected by hand, and then tighten it gently with a tool (up to 1/2 turn). If the connection is the external thread of the metal cone pipe, 1.5-2 turns of raw tape can be thinly wrapped on the metal thread (in the direction of the thread), mainly for lubrication and auxiliary filling.
Precautions:
Make sure the internal thread insert is installed firmly without looseness.
Pay attention to the flow direction when bonding in the main pipe direction.
