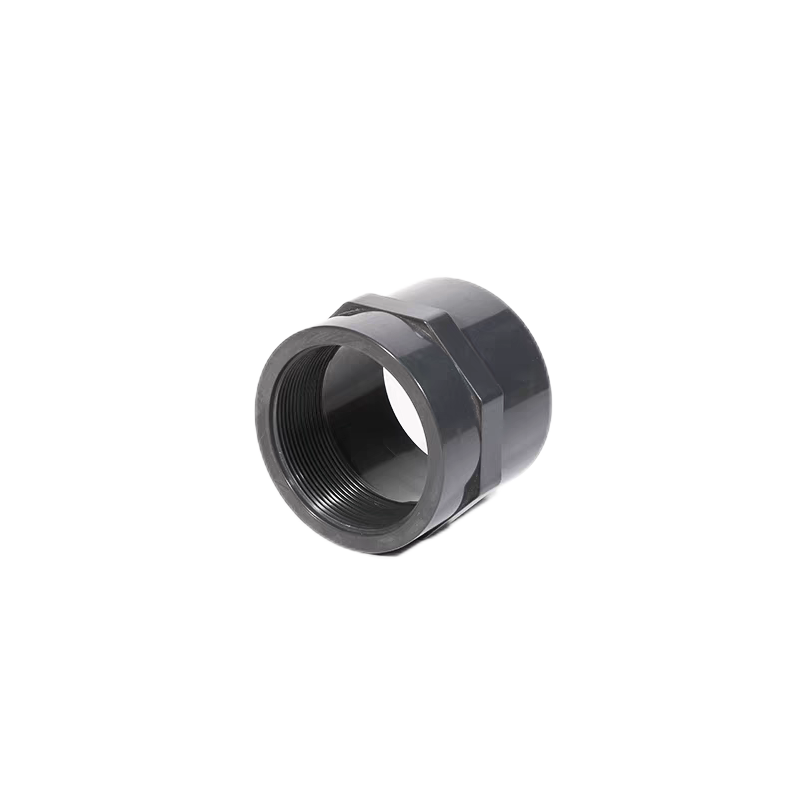

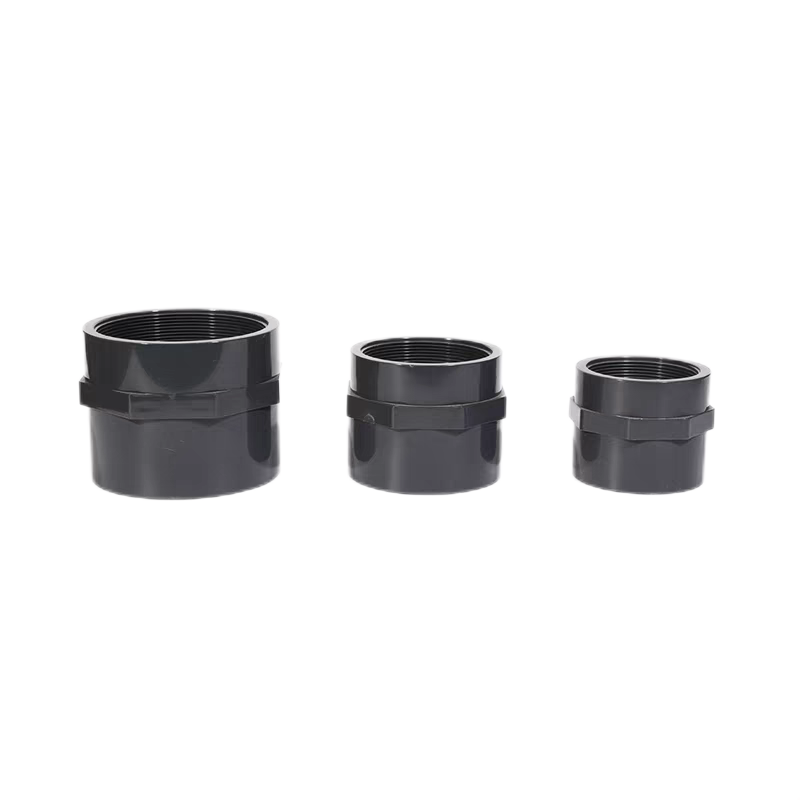

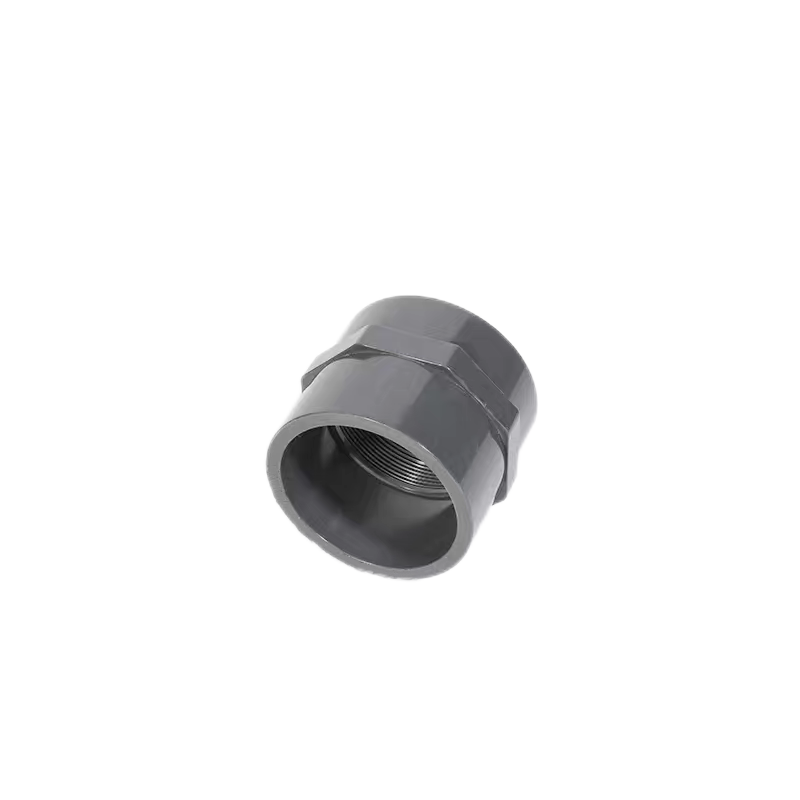

PVC Female Adaptor
PVC internal thread internal thread joint internal thread direct chemical grade water supply pipe plastic accessories UPVC bonding 20 25
Product Features
*Acid and alkali resistance, high impact strength, low fluid resistance, aging resistance, long service life
Describe
|
model |
1/2"-8" |
Product Usage |
Chemical Grade Pipe Fittings |
|
Product Material |
UPVC |
Product color |
Dark Gray |
Usage:
Used to connect the PVC pipe end to the metal pipe fittings/equipment with external threads. The PVC end is connected by adhesive bonding, and the metal end is tightened by threading.
Installation precautions:
Thread direction: Confirm the thread direction of the metal part.
Sealing material: Wrap the thread with polytetrafluoroethylene raw tape or apply pipe thread sealant. Oily sealants are prohibited.
Tightening force: After manually screwing in, tighten it with a tool for 1~1.5 turns. Over-tightening will cause the PVC internal thread to crack.
Gluing operation: The PVC end needs to be cleaned, glued, and socketed according to the specifications, and left to solidify.
