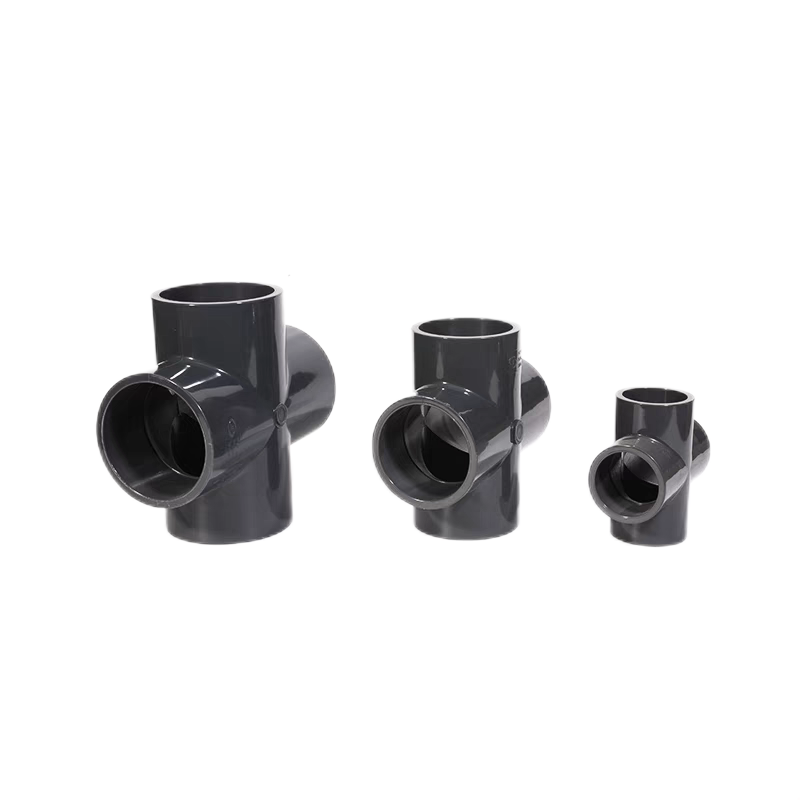

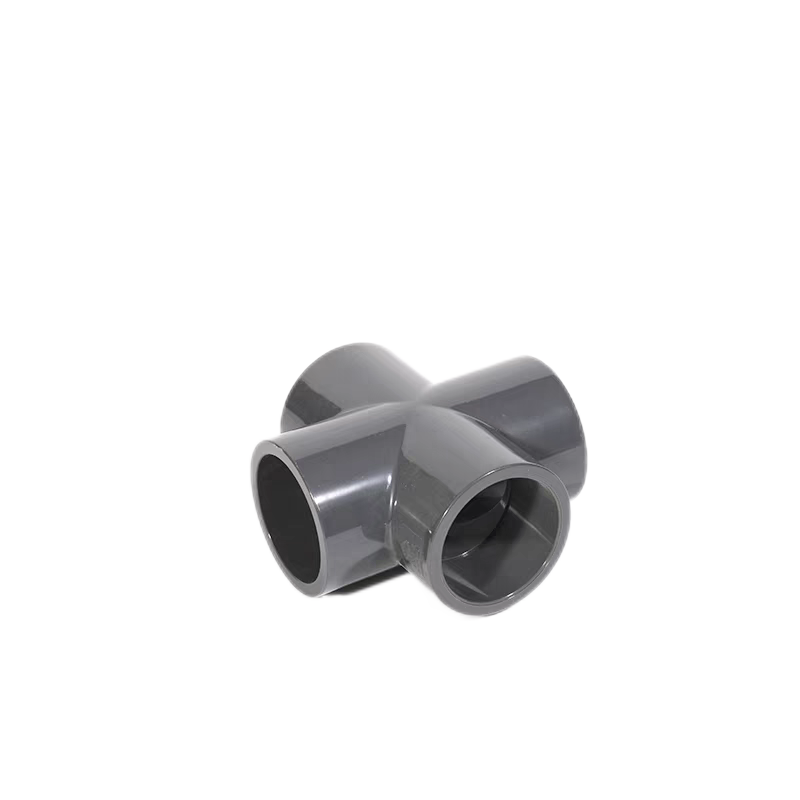

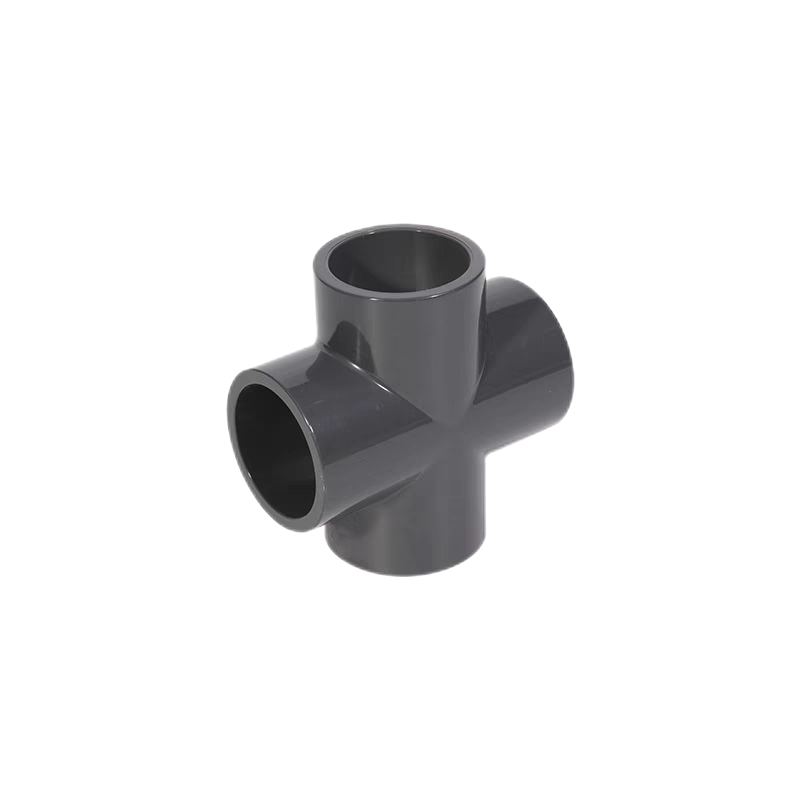

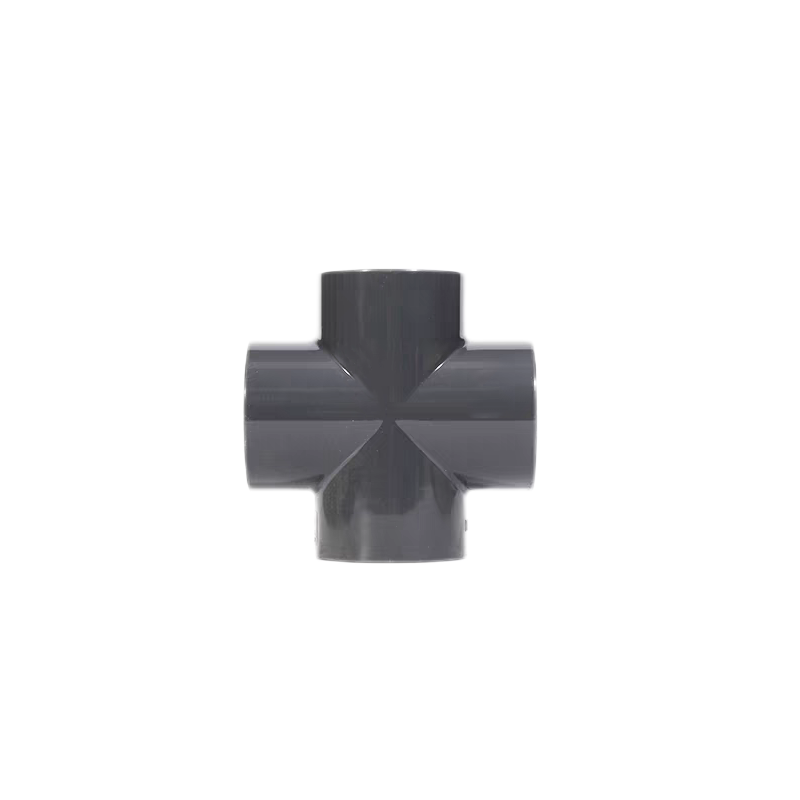

PVC cross
PVC four-way industrial PVC pipe fittings thickened water supply pipe fittings UPVC chemical industry water supply fittings
Product Features
*Acid and alkali resistance, high impact strength, low fluid resistance, aging resistance, long service life
Describe
|
model |
D15-DN400 |
Product Usage |
Chemical Grade Pipe Fittings |
|
Product Material |
UPVC |
Product color |
Dark Gray |
PVC cross: Usually refers to a cross-shaped cross, which may be a straight cross or a reducing cross.
Installation precautions:
High complexity: This is one of the most complex pipe fittings, with many connection points and complex stress states.
Support is critical: There must be reliable support in all four directions, and the support should be as close to the cross body as possible to minimize cantilever loads and bending moments. The support design needs to be particularly careful.
Significant stress concentration: The geometry causes very significant stress concentration, and support must be strictly in accordance with the specifications.
Flow planning: The pipeline design needs to clearly plan the flow direction (inlet/outlet) of each port to avoid flow conflicts or dead zones.
Installation precautions:
High complexity: This is one of the most complex pipe fittings, with many connection points and complex stress states.
Support is critical: There must be reliable support in all four directions, and the support should be as close to the cross body as possible to minimize cantilever loads and bending moments. The support design needs to be particularly careful.
Significant stress concentration: The geometry causes very significant stress concentration, and support must be strictly in accordance with the specifications.
Flow planning: The pipeline design needs to clearly plan the flow direction (inlet/outlet) of each port to avoid flow conflicts or dead zones.
