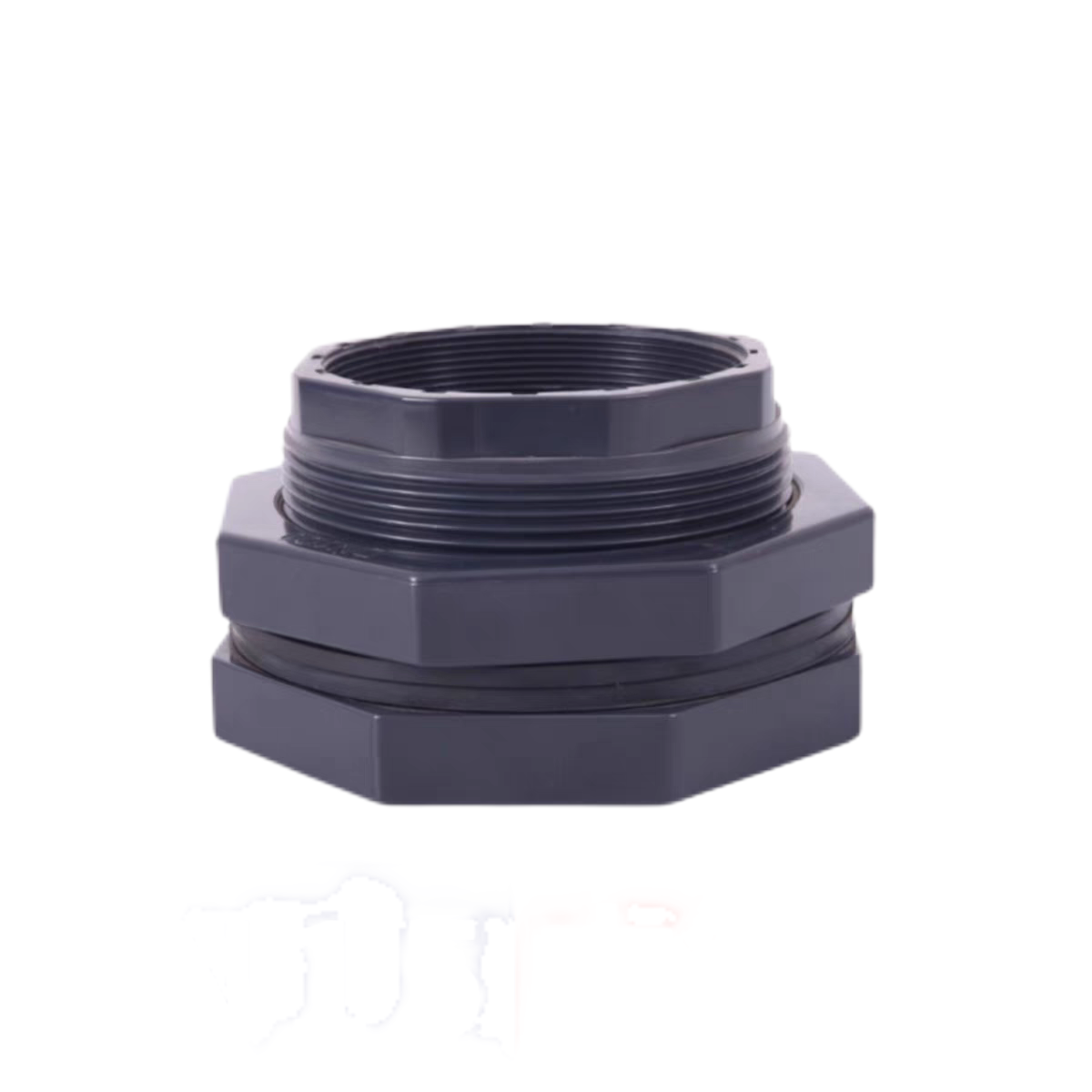

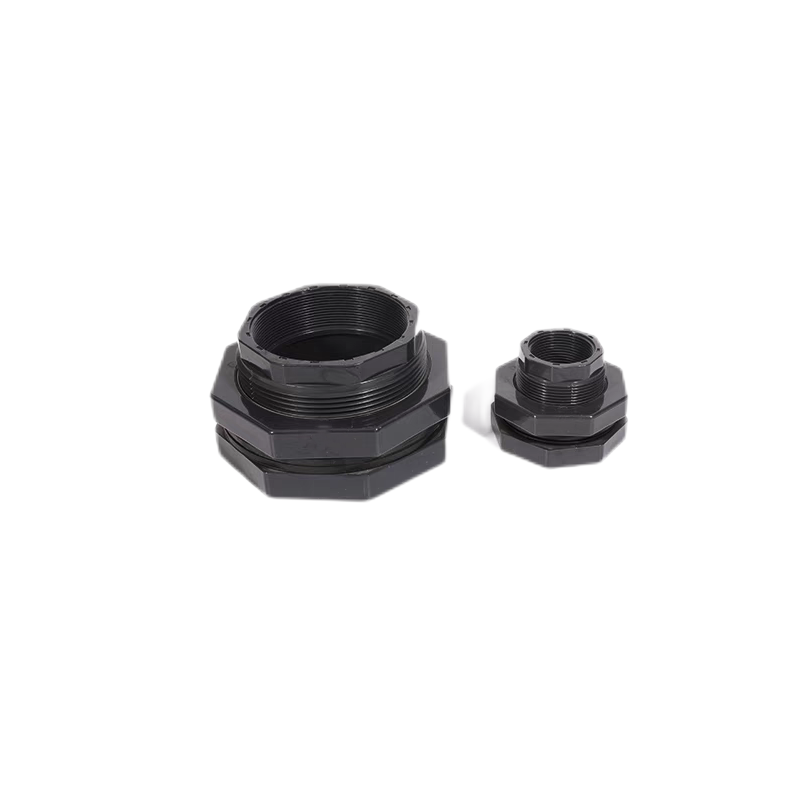

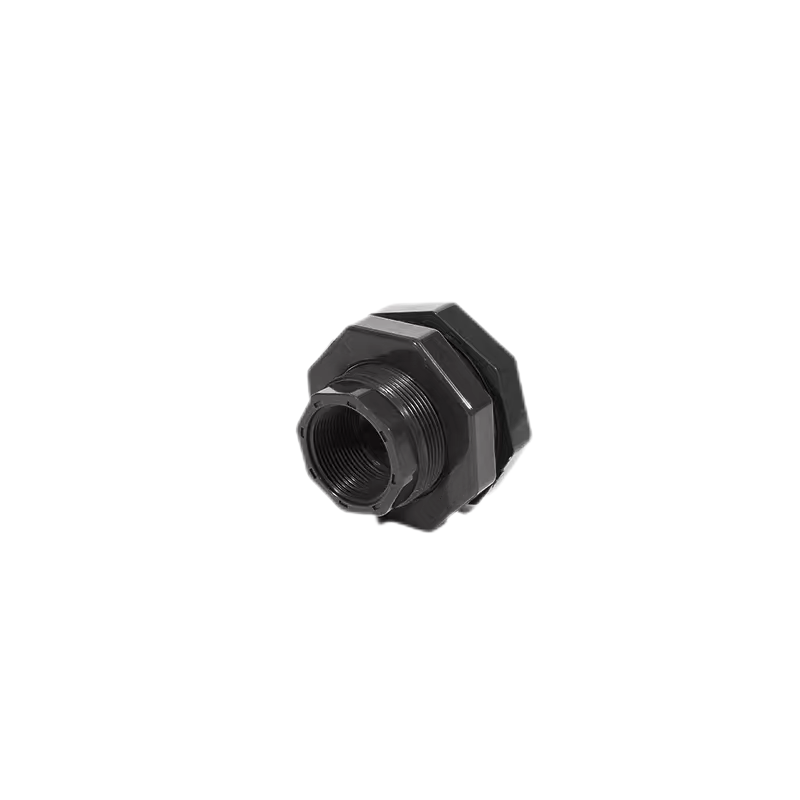

PVC water tank connector
UPVC water tank connector, water tank, fish tank, water tower connector, internal and external threads
Product Features
*Acid and alkali resistant, high impact strength, low fluid resistance, aging resistance, long service life
Describe
|
model |
DN15-DN100 |
Product Usage |
Chemical Grade Pipe Fittings |
|
Product Material |
UPVC |
Product color |
Dark Gray |
Usage:
Used for installation in water tank/pool wall openings, usually composed of inner and outer nuts, sealing gaskets, and PVC pipes to achieve wall sealing.
Installation precautions:
Hole opening accuracy: The hole diameter needs to be 2~3mm larger than the wall diameter of the joint.
Double gasket sealing: Water-resistant rubber gaskets need to be installed on both sides of the water tank wall.
Balanced tightening: Tighten the inner and outer nuts symmetrically and alternately to ensure uniform compression of the gasket.
Internal protection: A stainless steel protective cover can be installed on the inside to prevent clogging by debris.
Used for installation in water tank/pool wall openings, usually composed of inner and outer nuts, sealing gaskets, and PVC pipes to achieve wall sealing.
Installation precautions:
Hole opening accuracy: The hole diameter needs to be 2~3mm larger than the wall diameter of the joint.
Double gasket sealing: Water-resistant rubber gaskets need to be installed on both sides of the water tank wall.
Balanced tightening: Tighten the inner and outer nuts symmetrically and alternately to ensure uniform compression of the gasket.
Internal protection: A stainless steel protective cover can be installed on the inside to prevent clogging by debris.
